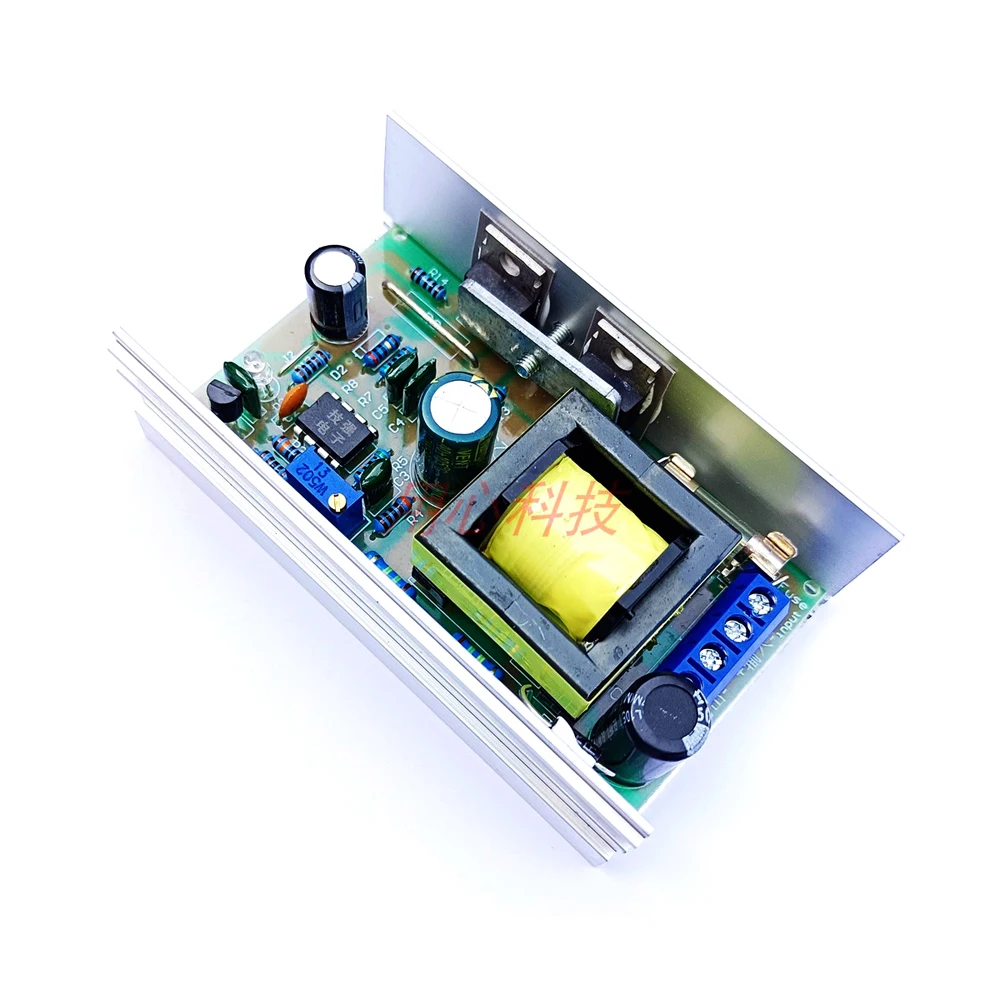

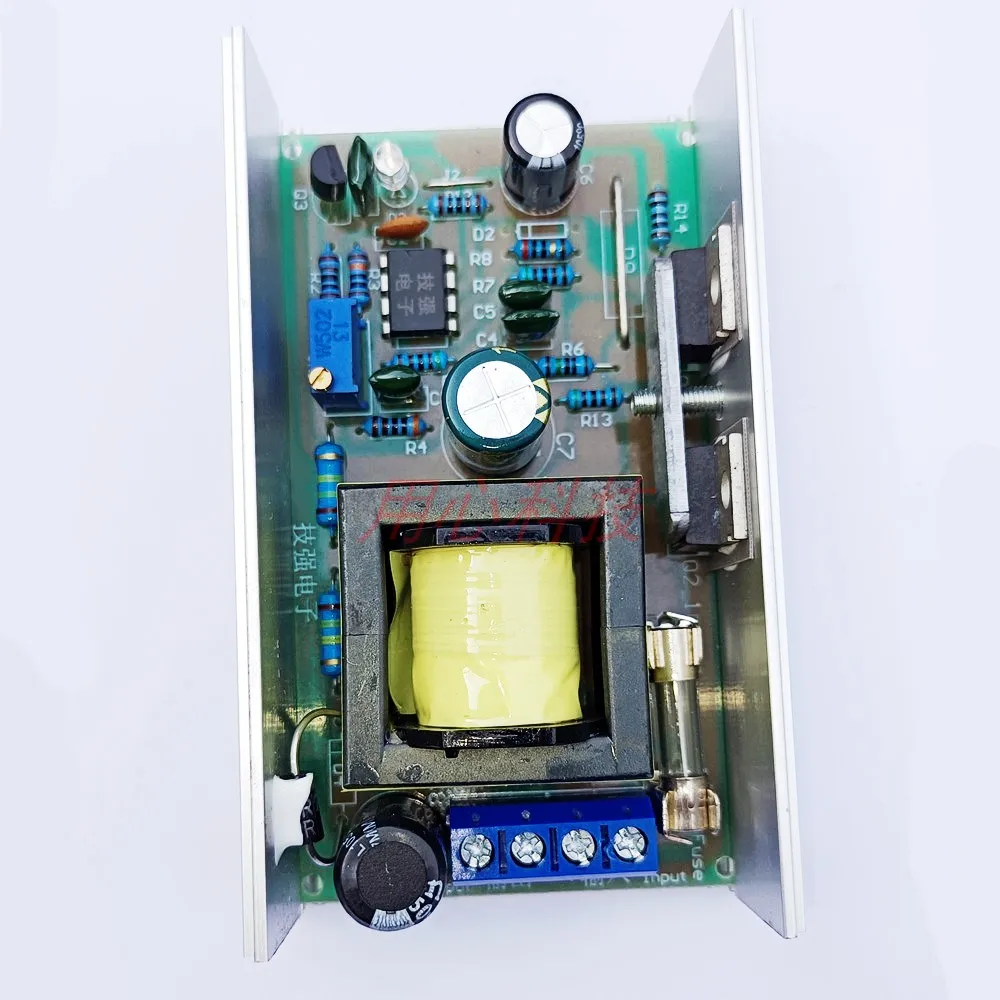

70W DC-DC 12V 24V bis 160V 170V 200V-450V Spannung einstellbar Boost Power Converter Nixie Clock Tube Verstärker Kondensator Aufladen

Produktbeschreibung

70W DC 12V 24V to 100-250V 200V-450V Adjustable High Voltage Boost Converter Step Up F/ Glow tube Nixie Clock capacitor charging
This is a DC convert with a huge output voltage of DC 450V. this module is amazing, when the input voltage is
not stable, the output will be stable. this is a non-isolated converter.
Parameter
1. Input: DC 9-24V
2. Lowest starting voltage: 8.4V
3. Output: adjustableDC 100-250V / 220V-450V(MAX 450V the output voltage is stable even the input voltage is changing)
4. Power: 40W continuously working, it can reach 70W occational working. lnput voltage is lowered, the output power will drop, the input voltage increases, the output power increases, but does not affect the output voltage.
5. Size: 85*50*28MM
6. Undervoltage protection: yes. when the input is less than 7.6V, the voltage will not be boosting
7. Reverse connection protection: yes
8. Indicator: the led will be on when the charging is finished
9. Charging time: to charge 1000UF capacitance to 450V, it will take about 5 seconds
10. Notice: when the power is big, the assurance may burn, you need to change to get the module back to work.
11. Recommand power supply for the converter: DC 12V lead-acid battery or 3/4-series of 18650 batteries, which can provide a current over 7A.
Purpose: magnetizing charging capacitor DC power supply equipment, test fixture, the product pressure test tubes low-voltage DC power supply, glow tube power, and other purposes.
Note
1. The use of low-voltage side of the current limiting mode, is to limit the low-side current, especially for the capacitor to charge, the capacitor before charging the voltage of 0, the direct charge, (this time is equivalent to short-circuit state) This version can be directly connected to the following capacitor 1000UF charge, more than 1000UF, to a series of 5W, 10ohm cement resistance around what about.
2. Not suitable for other power supply too much power, due to current limiting, the output in the overload when the output voltage will be pulled down. Will cause the phenomenon of unstable output voltage.
3. When using lithium battery and other power supply, pay attention to the protection board can withstand enough current, the current will lead to damage to the protection board, or protection board protection lead to insufficient input voltage protection, resulting in no boost.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zertifizierung

NONE

Modellnummer

70W DC-DC

High Voltage Boost Converter

12V 24V to 100V-250V 200V-450V

Choice

yes

semi_Choice

yes
