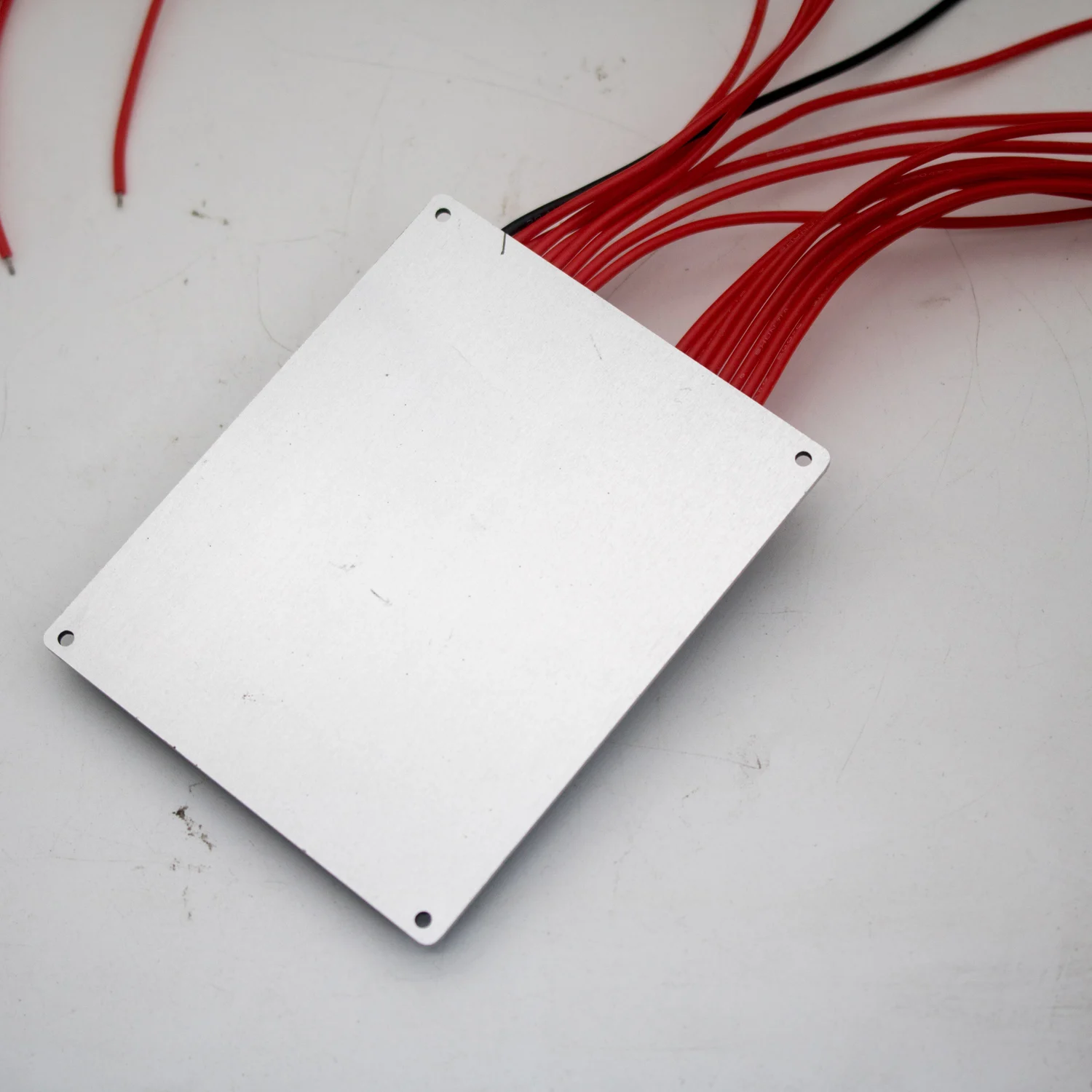

1,5A 16S 20S 24S Aktiver Balancer-Board für Lithium-Akkupacks – Energieübertragungsbalance 60V 72V 18650 Li-Ion LiFePO4 BMS Schutzsystem

Produktbeschreibung

2S ~ 24S 1.5A Active Balance board 3S 4S 6S 7S 8S 9S 13S 16S Li-ion Lipo Lifepo4 Lithium Battery Active Equalizer Balancer Energy Transfer Board differential pressure repair

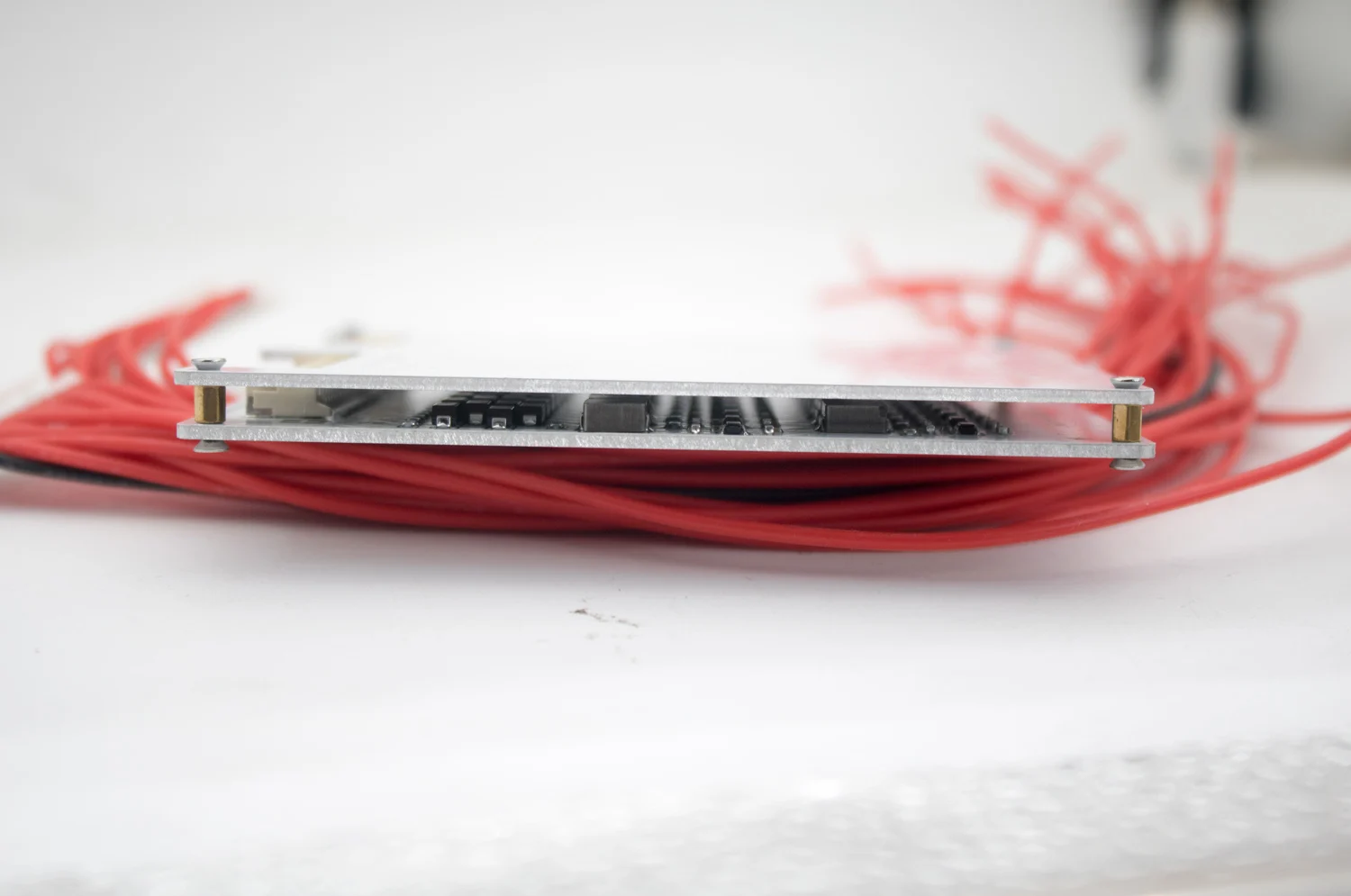

PCB board AND Aluminum casing color is different each time the mass production
Technical parameters
Working voltage 2.0V-4.5V, Li-ion Lifepo4 Lithium Battery universal
LTO batteries are not suitable.
Balanced current
Adjacent voltage difference is above 0.1V (current is about 0.5-0.7A)
Adjacent voltage difference above 0.2V
(To reach the maximum equilibrium current of 1.5A)
The smaller the voltage drop, the smaller the equilibrium current

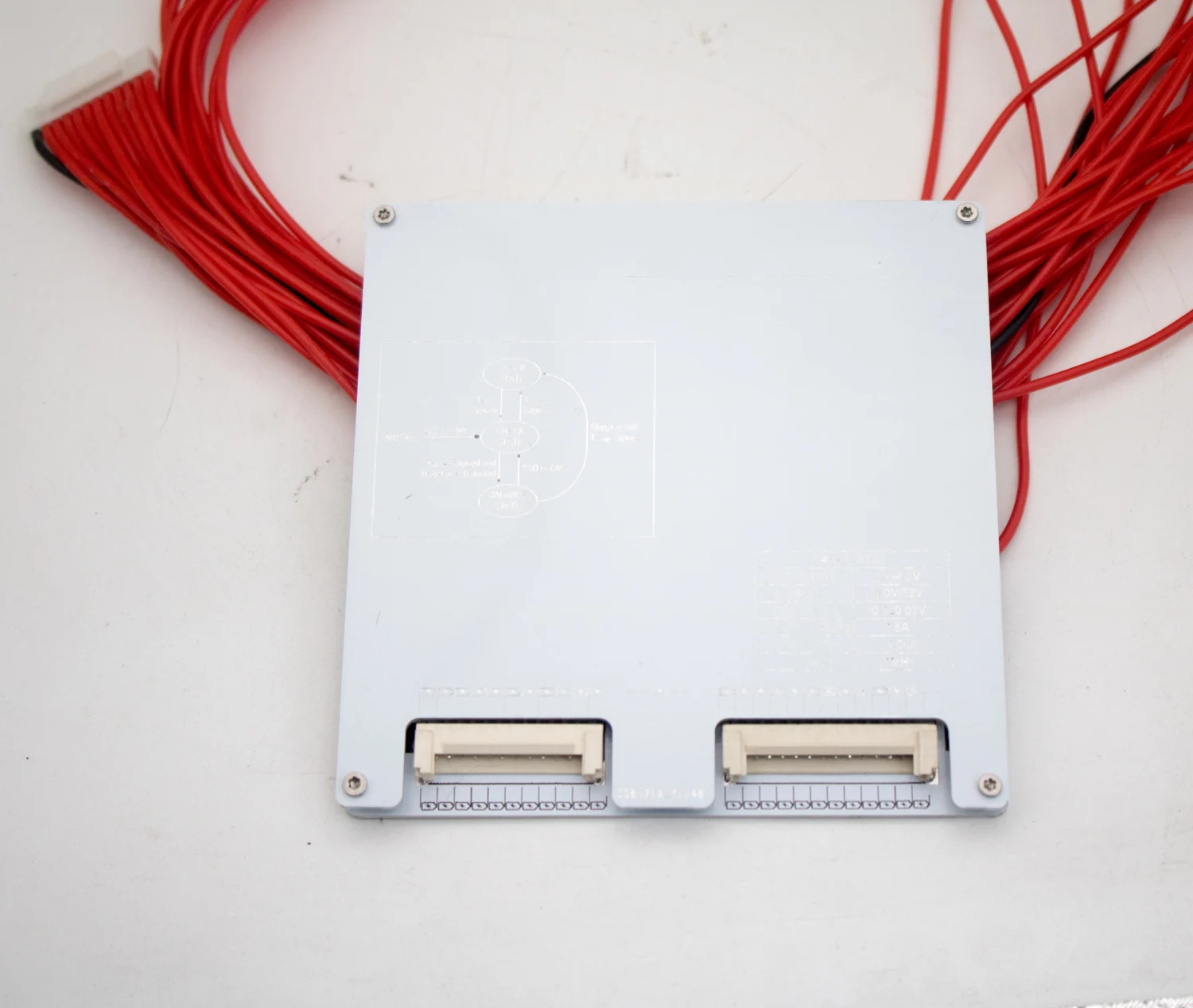

Definition of wiring
B-. Total negative terminal of the battery (the negative terminal of the first battery)
B1. Positive terminal of the first battery
B2. Positive terminal of the second battery
B3.... and so on.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zertifizierung

NONE

Modellnummer

16S 20S 24S Active Equalizer

1.5A Active Equalizer

16S 20S 24S

Active Balance

Energy Transfer 60V 72V
