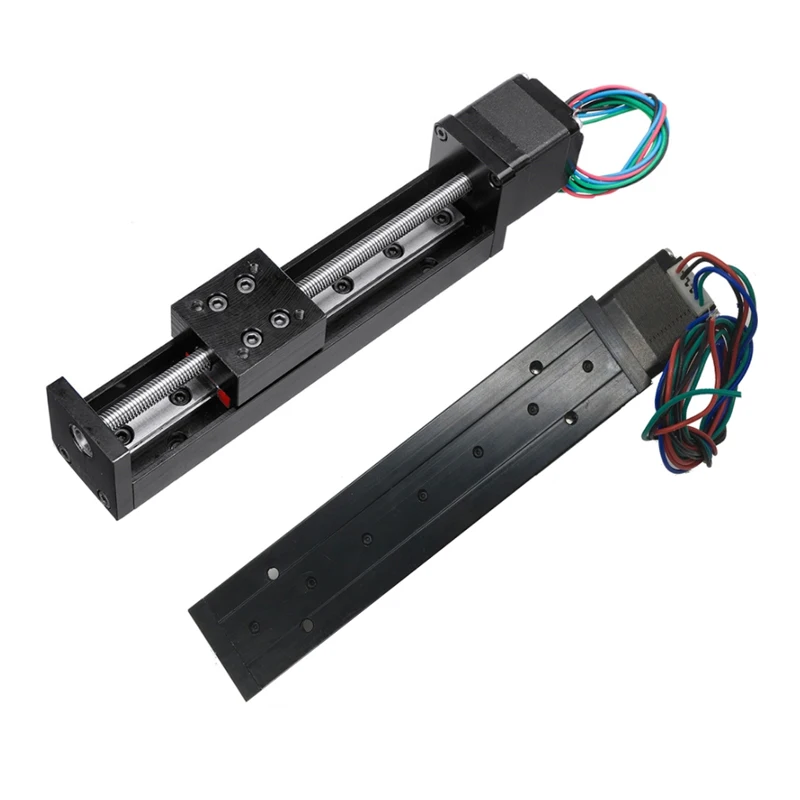

T-Typ CNC Schiebetisch Schiene Linear Bühne Transport Guide Plattform Schrittmotor Antrieb Kit Mini Schiebetisch XYZ Achse Tisch

Produktbeschreibung

Package Included
1)Sliding Table
1Pcs* Sliding Table with Nema11 Stepper Motor
2)Slide with Driver
1Pcs* Sliding Table(50mm~300mm )stroke with Nema11 Stepper Motor
1Pcs* TB6600 Driver
Note

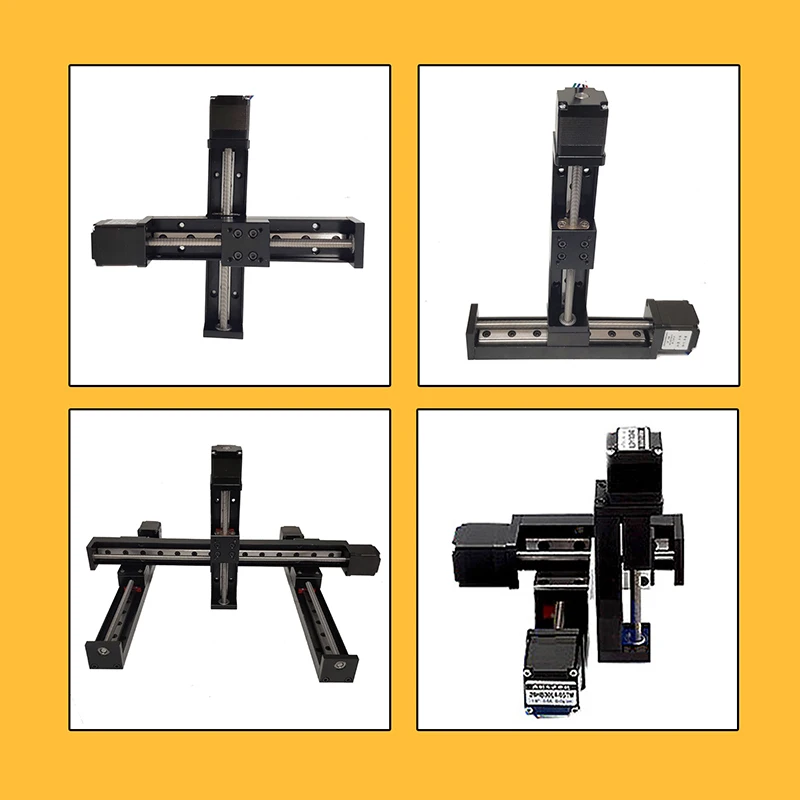

Build XY axis: provide free drilling service.
Build XZ axis/gantry structure: the connecting plate needs to be customized.
If you have the above needs, please free to contact us!
Table Features
Horizontal load: 5KG (Max)
Vertical load: 1KG(Max)
Mobile panel size: 30mm X 32mm
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width:8MM
Block:MGN8H
Screw Precision:C7
Screw Model:T6*1/T6*2/T6*4/T6*6/T6*12

Produktdetails in Bildern

Produkteigenschaften

Markenname

PFDE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

T-type Sliding Table

Führungsbreite oder Durchmesser

6mm

Zertifizierung

CE

Horizontal load

5KG (Max)

Vertical load

2.5KG(Max)

Screw Model

Trapezoidal screw (T6)

Screw Pitch

1mm/2mm/4mm/6mm/12mm

Motor Size

NEMA11(28MM)

Holding torque

6.5Ncm/0.065N.m

Mobile panel size

30mm X 32mm

Repeat positioning accuracy

0.02mm-0.03

Maximum speed

80mm/s

Rail width

8MM

Block

MGN8H

Stroke

50MM/100MM/150MM/200MM/250MM/300MM

Choice

yes

semi_Choice

yes
