Tzt 9-56v/2-20a dc automatischer Buck-Boost-Wandler Step-Up-Down-Wandler cc cv zum Laden der Batterie

Produktbeschreibung

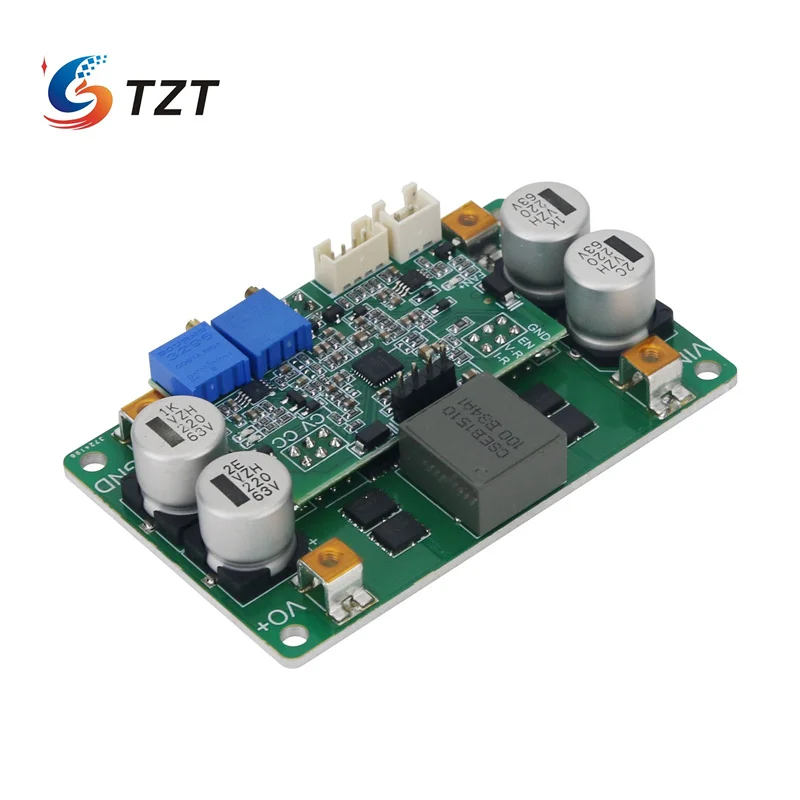

TZT 9-56V/2-20A DC Automatic Buck Boost Converter Step up down Converter CC CV for Battery Charging
Read before purchasing
Basic technical knowledge and hands-on ability are highly recommended.
Users need to modify parameters such as undervoltage protection parameters. We can tell you how to modify it.
Certain power supply test and measurement capabilities and equipment are recommended. Do not test this power supply with a 3A adjustable regulated power supply used in labs.
Do not test the current-limiting power supply in CC mode with an electronic load.
Output current adjustment range: For example, the input power is sufficient, the output power supply is 20V and a 0.4Ω resistor is connected to adjust CC potentiometer, the output current can be adjusted to a maximum of 20A, but cannot be adjusted to the minimum limit value (except 0A).
Typical Performance
Non-isolated four-switch synchronous buck-boost
Wide input DC 9-58V, output DC 3-56V
Peak efficiency> 98.0%
Over-current protection
Short-circuit protection self-recovery
Remote ON/OFF
Over-temperature protection
Optional temperature-controlled fan
Constant current indicator
Adjustable output voltage and current
Maximum inductor current of 20A
Fast dynamic response, high voltage regulation accuracy, constant frequency operation MEI is convenient for prediction

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Elektrifiziert

Nein

Modellnummer

9-56V/2-20A

S

85205
