NodeMCU ESP8266 Entwicklungsboard mit 0,96 Zoll OLED-Display, CH340-Treibermodul für Arduino IDE/Micropython-Programmierung

Produktbeschreibung

Features

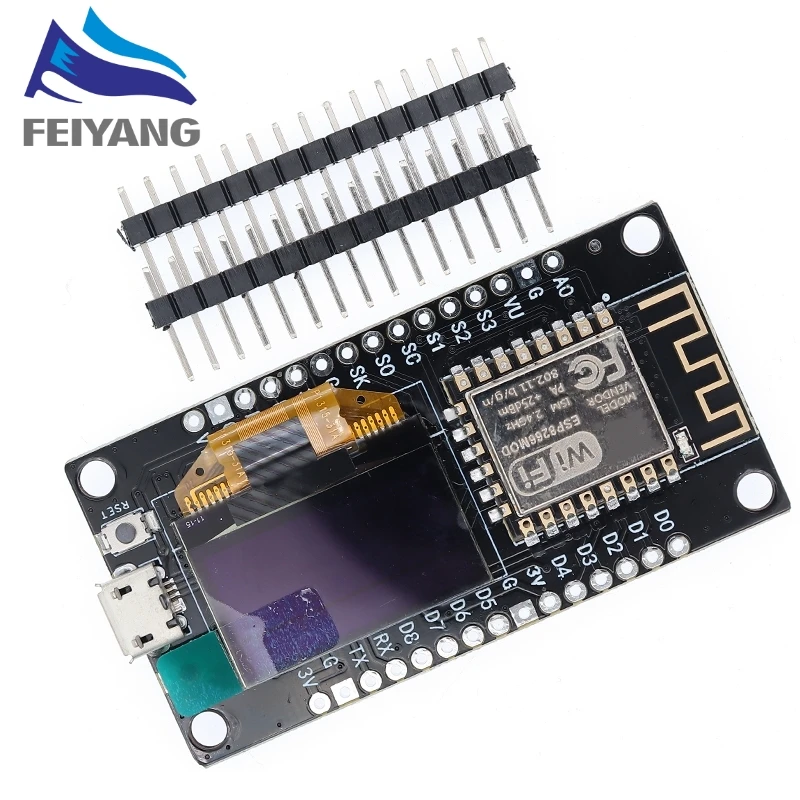

1.This is an ESP8266 0.96 OLED board that features all the features of a traditional ESP8266 module.
2.Seamless integration with 0.96-inch OLED displays eliminates the need for wires and test boards.
3.The board uses I2C to connect to the OLED display through SDA (D6/GPIO14) and SCL (D5/GPIO12) pins.
4.The module is paired with a display screen template, and with this board, various information and data can be displayed.
5.Display function, high-resolution 128x64 with SSD-1306 driver, compatible with I2C and SPI interfaces, can be connected using Type-C or Micro USB interfaces, and interfaces can be selected according to needs.
Product Introduction
This circuit board integrates the ESP8266 NodeMCU and 0.96-inch OLED screen, providing all the functions of traditional ESP8266 modules, with the same size and peripheral ports, as well as higher performance development tools and high-definition data display. It supports multiple programming modes and has an ESP8266 chip with an 80MHz main frequency and 4MB flash memory, making it easy to handle various tasks and applications, as well as a complete network protocol stack and security mechanism. It has low power consumption and high performance, making it suitable for beginners and professionals to develop and apply IoT projects.
Parameters
Working voltage: 3.3V
Input voltage: 7-12V
Digital I/0 pin (DIO): 16
Analog input pin (ADC): 1
UART: 1
SPI: 1 1
12Cs: 1
Driver. CH340G
Flash memory: 4 MB
SRAM: 64 KB
Clock speed: 80 MHZ

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

NodeMCU ESP8266

Verlustleistung

ESP-12F

ist kundenspezifisch

Ja

Betriebstemperatur

40+85

Anwendung

Computer

Paket

SMD
