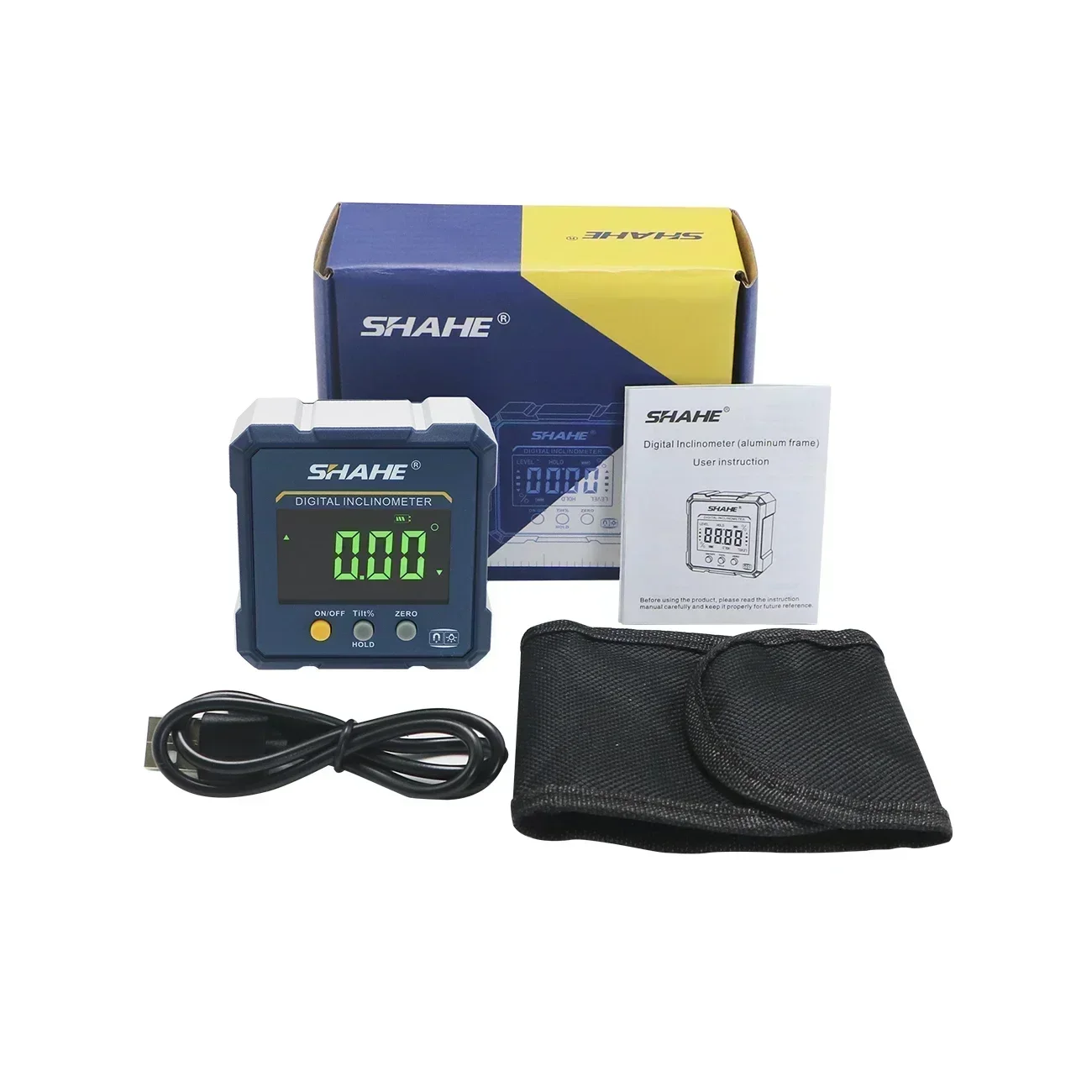

SHAHE 4*90 ° Digitaler Winkelmesser, elektronischer Winkelmesser mit 4-seitigem Magnet, großes LCD, digitaler Winkelmesser, Winkelmesser

Produktbeschreibung

1.Relative /absolute measurements interchcange at any position
2.Angle and slope readout conversion
3.Data hold
4.The display will be turn off if you don't operate the device within 30 seconds,the dispaly will automatic turn off if you don't operate it within 3 minutes
5.Compact and portable,wide application
6.Four side built-in powerful magnets
Application
It is widely applied in wood processing industry (especially in furniture manufacturing dustry) for the accurate cutting of wood angle;auto repair industry for the accurate control of tire angle;maching industry for the accurate position of tool working angle as well as the roation angle of large vehicle arm etc
Type:SHAHE-5341-90B
Technical Parameters
1.Measuring range:4×90°
2.Resolution:0.05°
3.Accuray:±0.2°
4.Repeatability:0.1°
5.Work temperature:-10℃~50℃
6.Battery: Rechargeable battery,3.7V lithium battery
7.Material:Aluminum frame
Type:SHAHE-5341-90

Produktdetails in Bildern

Produkteigenschaften

Markenname

Shahe

Halbfertigprodukt

Nein

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zertifizierung

NONE

Modellnummer

4-side magnets

ist kundenspezifisch

Ja

Measuring range

4*90 degree

Resolution

0.05°

is_customized

Yes

Type

Angle gauge

Magnet

4-sde magnets

Backlight

yes

Acuracy

±0.2°

Repeatability

±0.1°
