TZT 1/2/5/10PCS 15A 400W MOS FET Trigger Switch Drive Modul PWM Regler Bedienfeld für Arduino

Produktbeschreibung

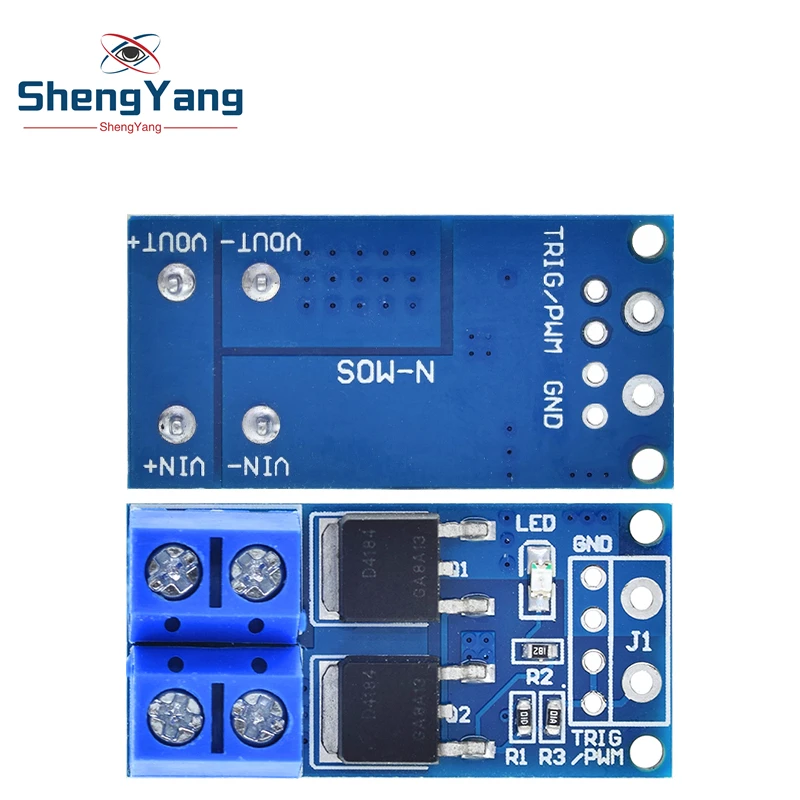

High-power MOS tube, trigger switch, drive module, PWM regulation, electronically controlled switch
Module Highlights
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power
2. Wide voltage input, support PWM
3. Easy to control high power devices.
Product specifications and applications
1. Working voltage: DC 5V - 36V
2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.
3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W!
4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
5. life: unlimited-off
6. Working temperature: -40-85 ℃
7. Size: 3.4 * 1.7 * 1.2cm.

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

DC 5V--36V

Verlustleistung

15A 400W

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

Computer

Paket

DIY KIT

Electronic products

For Arduino STM
