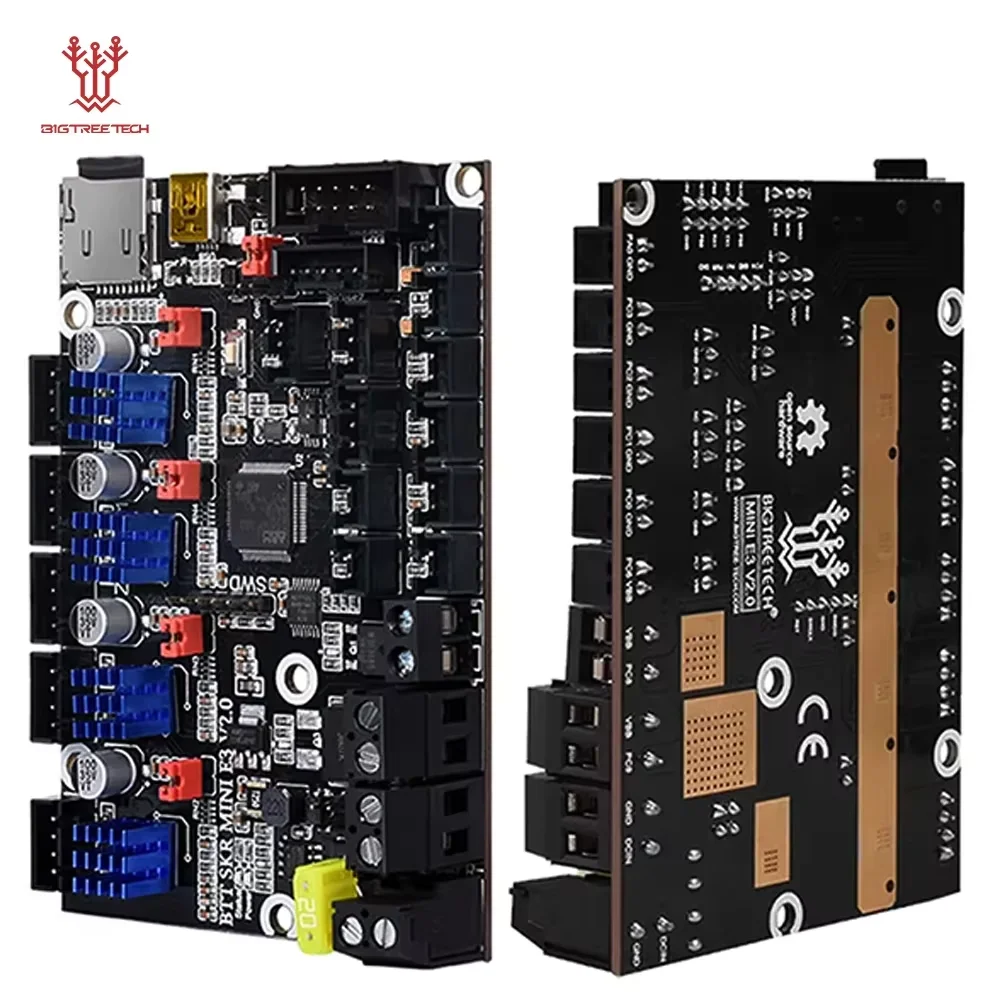

BIGTREETECH SKR MINI E3 V2.0 32Bit Motherboard Onboard TMC2209UART Upgrade für TFT35 E3 V3.0 Ender3V2 CR10 Voron V0.1 3D-Drucker
inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten
Lieferung nach Deutschland
Lieferzeit: 7–13 Tage
Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.
Produktbeschreibung
A motherboard specially tailored for Ender3 printers, perfectly replacing the original Ender3 printer motherboard
SPECIFICATION
Appearance size: 100.75*70.25mm
Input voltage： DC 12/24V
logic voltage：3.3V
Motor driver: UART mode of onboard TMC2209
Motor drive interface: XM、YM、ZAM、ZBM、EM
Display: AlI BIGTREETECH touch screens、Ender3 original LCD12864 screen,etc
Support file format:G-code
PC communication interface:mini-USB-B type,easy to plug and unplug,communication baud rate 115200
Recommended software: Cura、Simplify3D、pronterface、Repetier-host、Makerware
Onboard EEPROM：24C32
Double Z-axis interface：Add parallel double Z-axis interface
Enhanced stability：The UART communication port driven by TMC2209 uses hardware UART port (One drag four）,enhance stability
Compatibility：Compatible models increase,suitable for Ender3,Ender3Pro,Ender5,CR-10
Better protection and safety design：Increase the distance between the driving chip and the components to avoid the trouble caused by the heat sink
Support more function expansion：Support BLtouch,filament detection,power-off resume,automatic shutdown(PS-ON),etc
Add 5V power supply：5V power supply with BLtouch,TFT and RGB interfaces is optional.
Increase the board layer to 4 layers：Improve heat dissipation signal function and anti-interference
BETTER THERMAL PERFORMANCE：Increase the heat dissipation area of the back driver and strengthen theheat dissipation capacity
Produktdetails in Bildern
Produkteigenschaften
- Markenname
- BIGTREETECH
- Hochbetriebenes Chemikalienunternehmen
- Keine
- Ursprung
- CN (Herkunft)
- Artikeltyp
- Mainplatine
- Modellnummer
- SKR MINI E3 V2.0
- Appearance size
- 100.75*70.25mm
- Input voltage
- DC 12/24V
- logic voltage
- 3.3V
- Motor driver
- UART mode of onboard TMC2209
- Motor drive interface
- XM,YM,ZAM,ZBM,EM
- Display
- AlI BIGTREETECH touch screens,Ender3 original LCD12864 screen,etc
- Support file format
- G-code
- PC communication interface
- mini-USB-B type,easy to plug and unplug,communication baud rate 115200
- Recommended software
- Cura,Simplify3D,pronterface,Repetier-host,Makerware
- Onboard EEPROM
- 24C32
