Mini LED Lade Touch Control Board DC 5V 2A Single/Dual/RGB Dimmer Lichter Panel Ein/Aus Schalter für DIY Buche Foto Rahmen Lampen

Produktbeschreibung

LED Charging Touch Control Board DC 5V 2A Single/Dual/RGB Dimmer Light Panel On/Off Switch for Photo frame Beech Wood Lamp DIY
LED Control Board
��. Name：LED Charging Touch Panel
��. Charging voltage：5V DC
��. Output Voltage：3.7-5V
��. Output Current：≤2A
��. Output power：Max 10W
��. Output channel：1-3 channels(optional)
��. Battery：3.7V support (sold separately)
��. Control：Touch / Switch

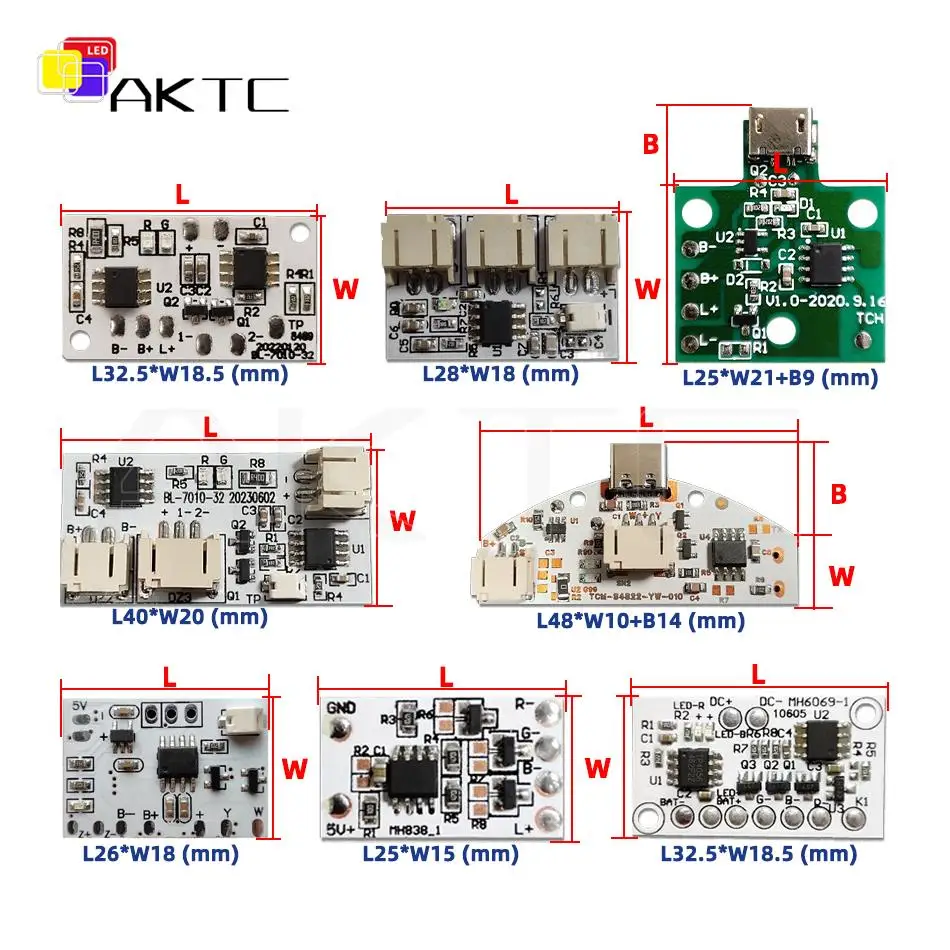

��. Dimension：As shown in the picture

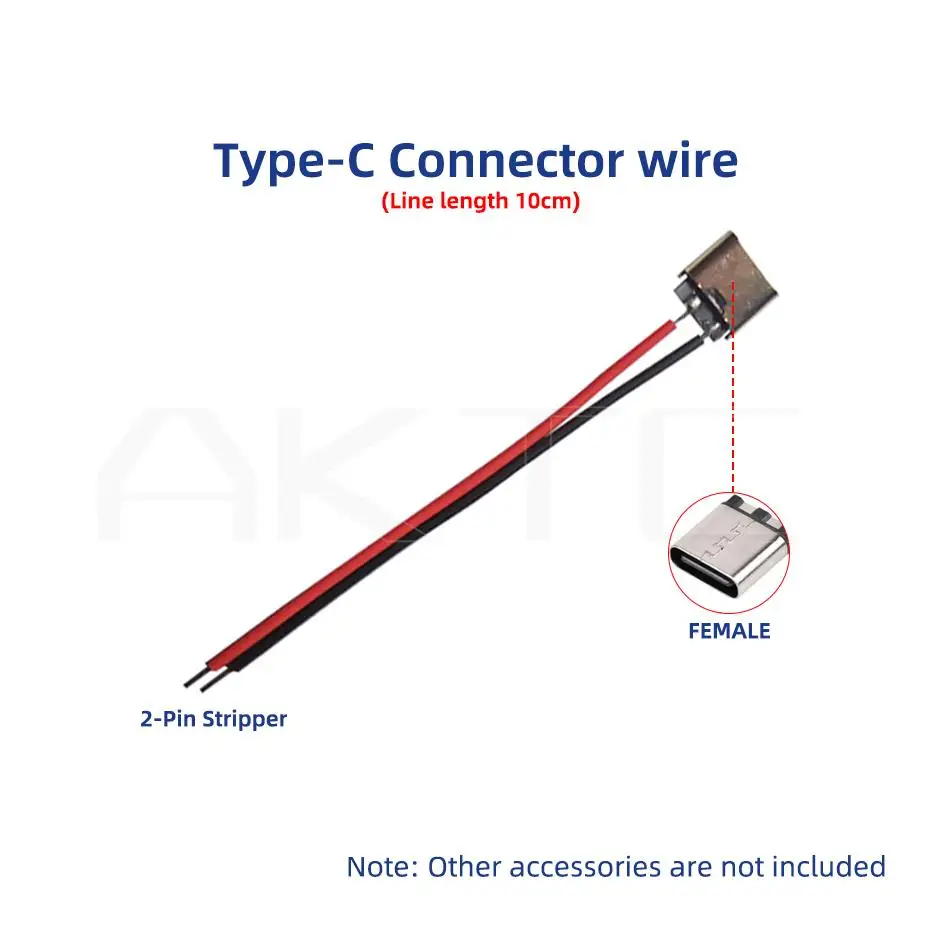

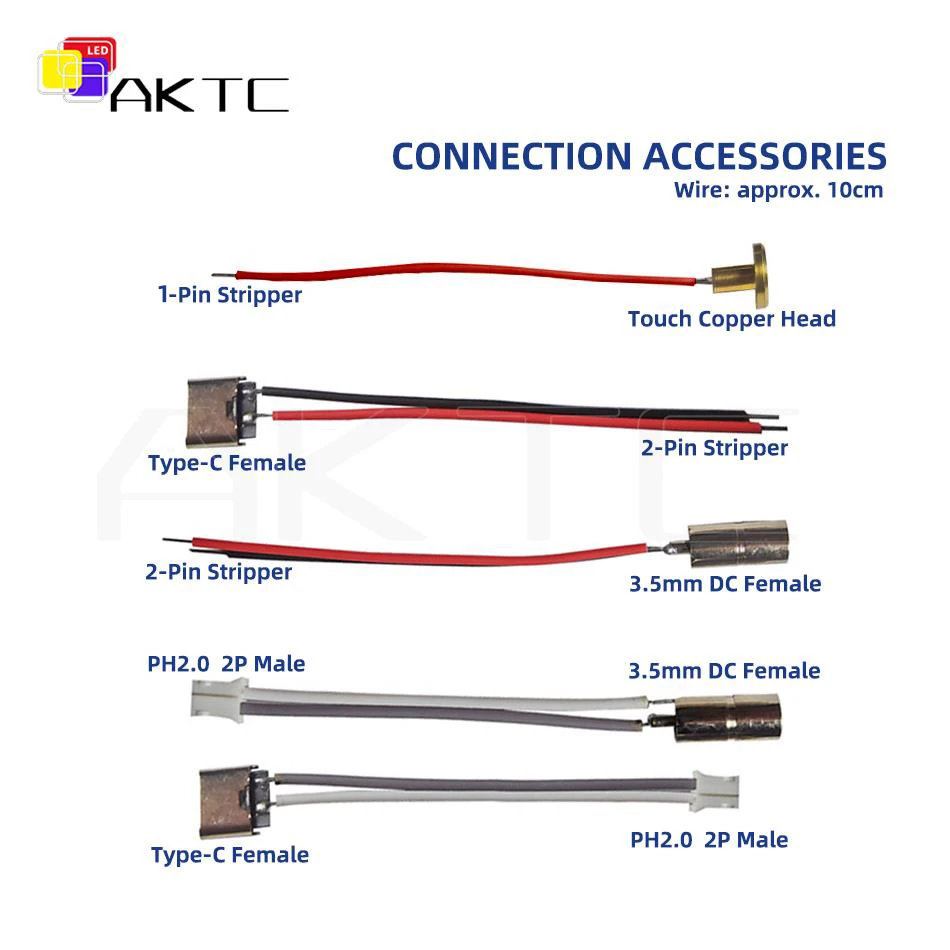

��. Wire: To be purchased separately
Note

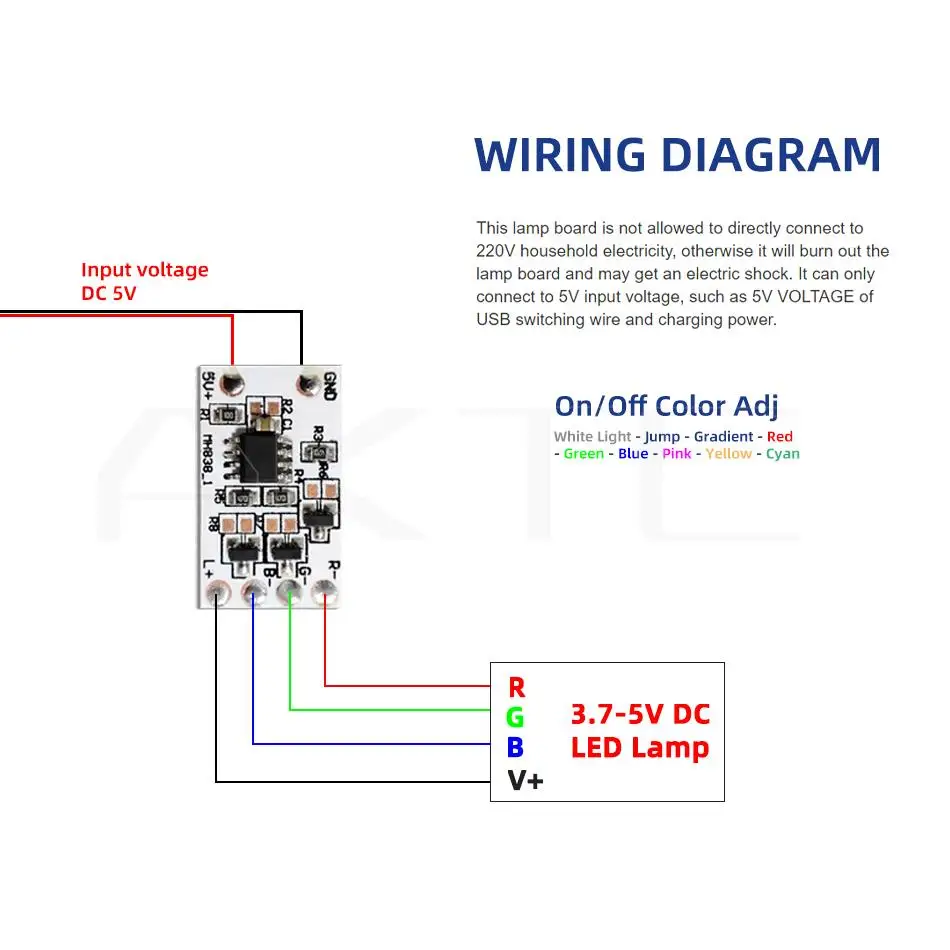

This lamp board is not allowed to directly connect to
220V household electricity, otherwise it will burn out the
lamp board and may get an electric shock. It can only
connect to 5V input voltage, such as 5V VOLTAGE of
USB switching wire and charging power.

Produktdetails in Bildern

Produkteigenschaften

Markenname

ankatec

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Ist ein intelligentes Gerät

no

Artikeltyp

RGB-Controller

Material

Aluminum or PCB

Garantie

1 year

Zertifizierung

ROHS

Zertifizierung

ce

Verbindungsmodus

Common Anode

Stromquelle

Gleichstrom

Wattzahl

10W

Spannung

4,5 V

Modellnummer

LED charging touch control board

Fernentfernung

/

Kontrollierte Methode

On/Off

Merkmale

Small volume; Widely applicable scope; USB can be directly driven

Anwendbare Lichter

3.7-5V LED low-voltage lighting fixtures

Maximal. Ladeleistung

10W

Name

LED Charging Touch Panel

Charging voltage

5V DC

Output Voltage

3.7-5V

Output Current

��2A

Output power

Max 10W

Output channel

1-3 channels(optional)

Battery

3.7V support (sold separately)

Control

Touch / Switch

Dimension

As shown in the picture
