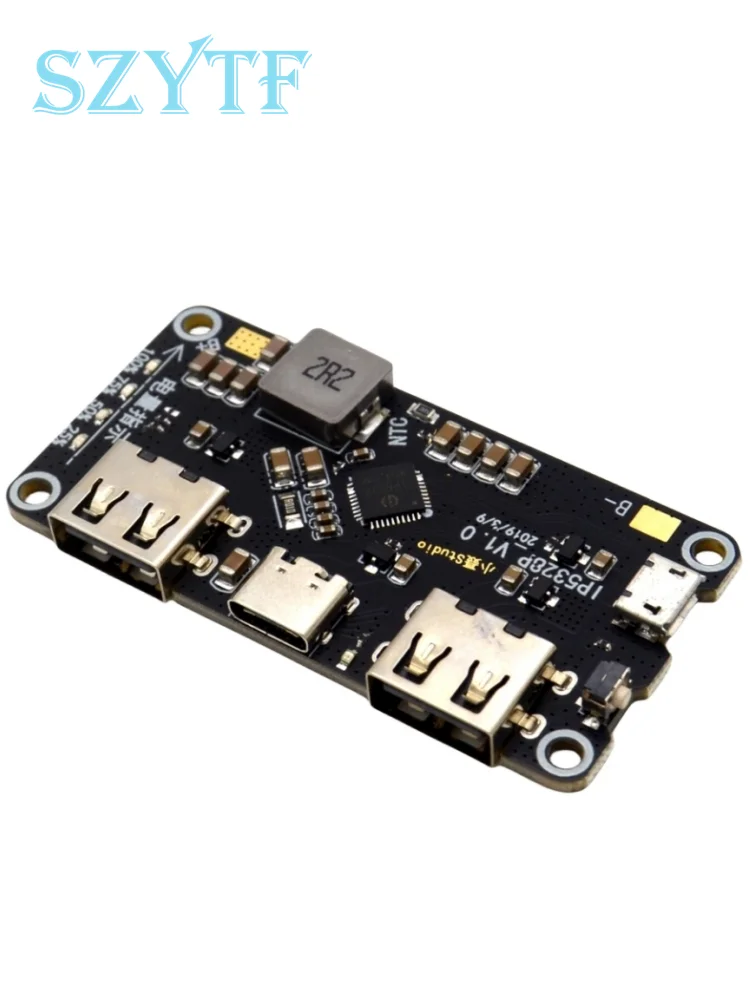

Lade Po Bidirektionales Schnelllade-Schaltmodul des mobilen Motherboards Power IP5328P 3,7 V Boost 5V9V12V

Produktbeschreibung

IP5328P charging Po bidirectional fast charge switch module of the mobile motherboard power 3.7V boost 5V9V12V
British set using mobile power core IP5328P solutions, four gold-plate, optimized layout, support for multiple protocols fast charging, fast charging bidirectional 18W, can support a total charging port 4: 2 USB-A output interface, an USB-C interface, Micro USB interface, four interface supports fast-charge, wherein two support USB-A port QC3.0, FCP, AFC, MTK, SFCP fast charge output power of up to 18W; apple support, Samsung, BC1.2 agreement. USB-C port supports USB PD bi-directional fast-charge, compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output. MicroUSB support FCP, AFC, SFCP fast charge input.
Product module parameters
Size: 65mm * 32.5mm thin quadrangular hole diameter 3mm
Output Interface: USBA + USBA + TYPE-C support fast charge output (see protocol specification fast charge)
An input interface: MICRO + TYPE-C support fast charge input (see protocol specification fast charge)
Battery Type: 3.7V battery (lithium battery assemblage or 18650) Single parallel, the capacity is not limited, the larger the capacity of charge and discharge time longer, please add the battery safety protection board, board has positive and negative points, the battery can not be then reverse, or burn the motherboard at your peril!!!
Indicating fast charge: input and output high voltage fast charge indicator
Conversion efficiency: 95% efficiency (different voltage power efficiency vary) details View specifications have introduced
Press the key: the key is longer than 60ms duration, but less than 2s, ie a short press operation, press opens and the booster battery indicator light output, long press 10s reset the entire system, less than 30ms keystrokes will not have any response.
Phone into the automatic detection function
IP5328P phone into the automatic detection, wake up from standby mode immediately, the boost 5V to charge the phone open, save key operation, no key support programs.
Functional Description
Undervoltage lockout and activation
IP5328P battery at the first access, regardless of how much the battery voltage, the chip is in a locked state, the least significant bit will flash charge lamp 4
Prompt times; when non-charging state, if the battery voltage is too low to trigger a low-power shutdown, IP5328P will enter a locked state.
In the locked state, in order to reduce static power consumption, IP5328P was no phone insertion detecting function can not be activated by a button. this
When the button action can not be activated boost output, but the power light will flash four times the lowest level prompt.
In the locked state, it is necessary to enter the state of charge in order to activate the chip functions.
Charging

Produktdetails in Bildern

Produkteigenschaften

Markenname

SZYTF

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

N/A

Verlustleistung

N/A

Betriebstemperatur

N/A

Anwendung

Computer

Choice

yes
