TZT 1/3 Stück DC-DC-Aufwärtswandler Konstantstrom-Mobilstromversorgung 10 A 250 W LED-Treiber-Aufwärtsmodul

Produktbeschreibung

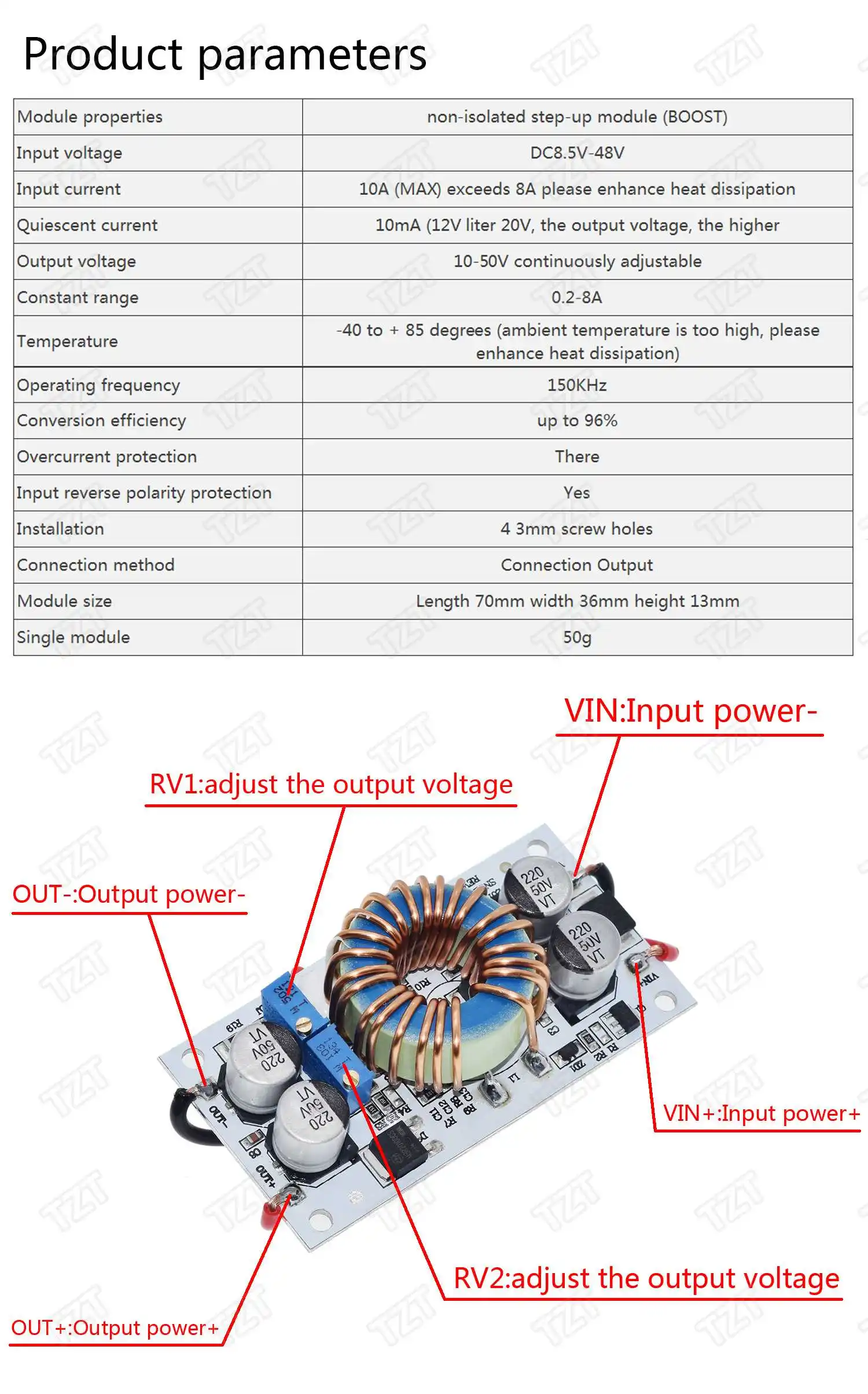

250W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC8.5V-48V
Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher
the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant] range: 0.2-8A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: There
Input reverse polarity protection: Yes
Installation: 4 3mm screw holes
Connection method: Connection Output
Module size: Length 70mm width 36mm height 13mm
Single module: 50 g
Applications
1, DIY a power supply, 12V can input and output can 12-50V adjustable.
2, the power supply for your electronic device, according to your

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

DC8.5V-48V

Verlustleistung

250W

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

experimental modules

Paket

DIY KIT

Functions

Electronic Module

Range of application

Switch And Sensor For Arduino STM
