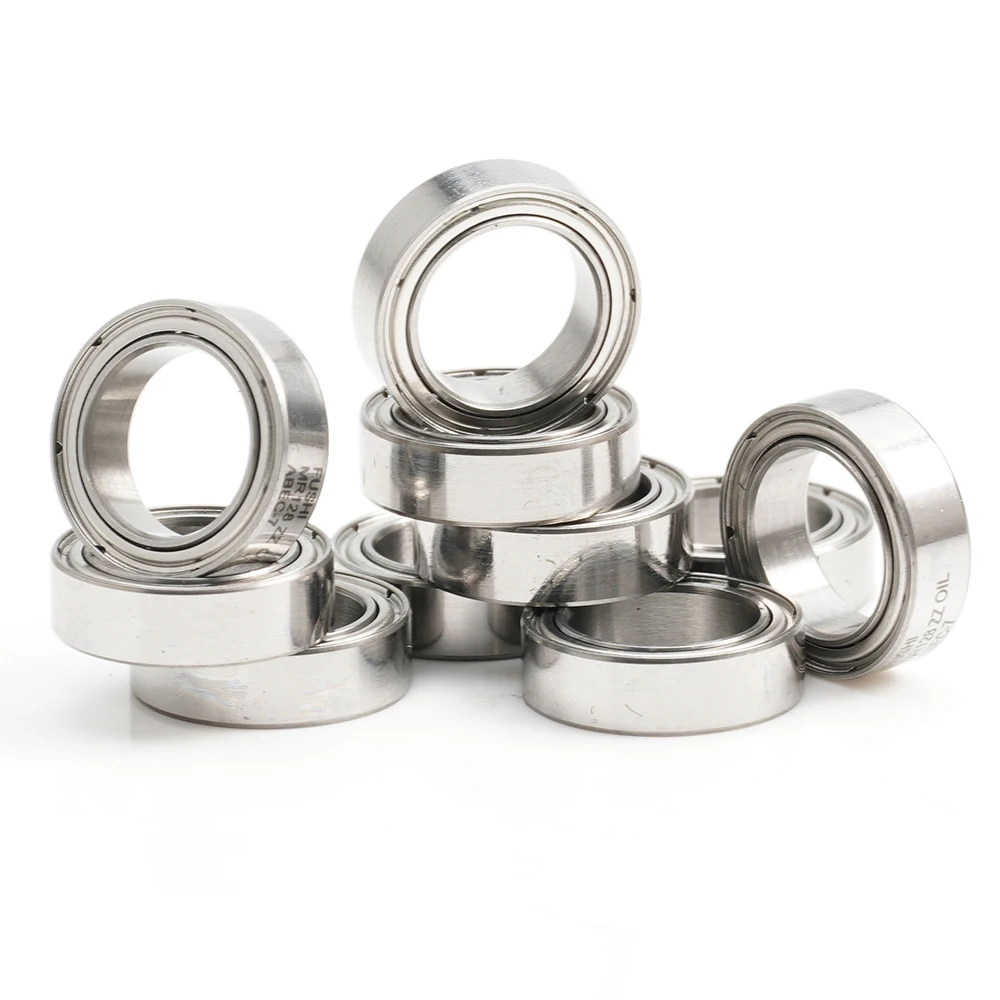

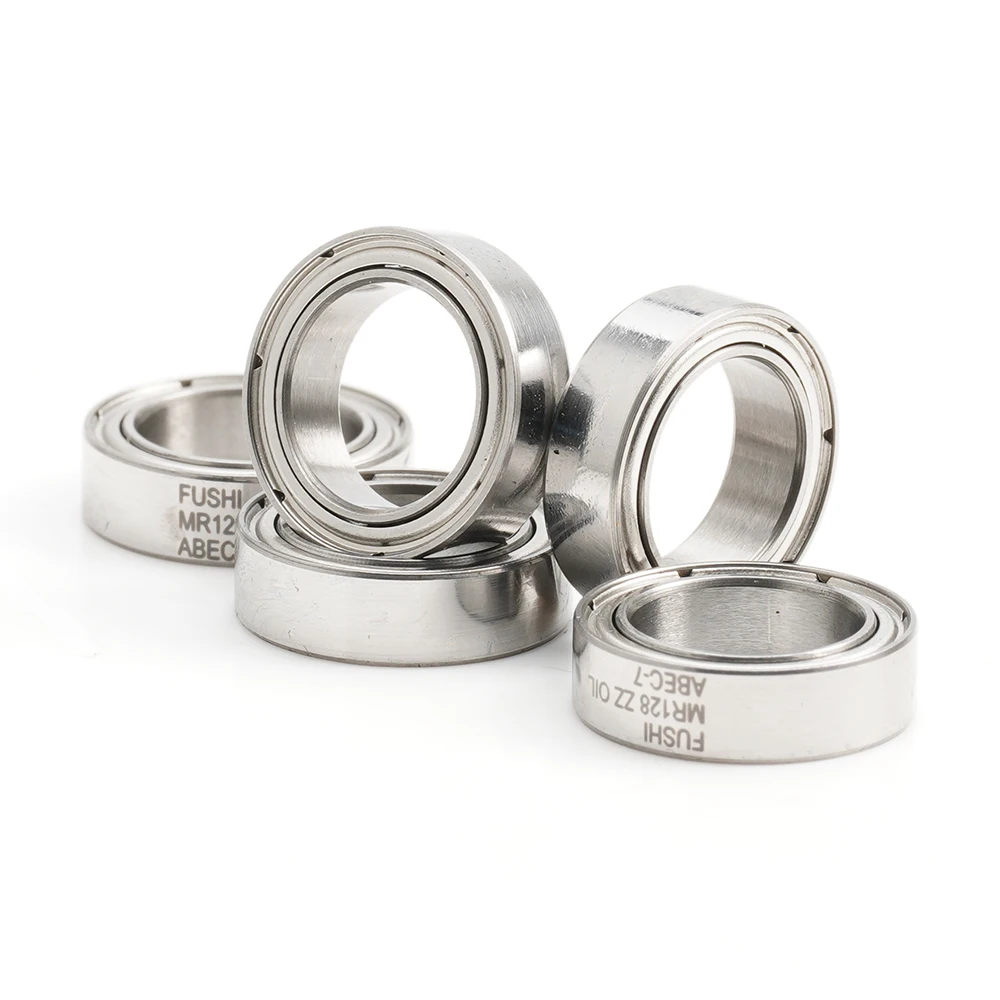

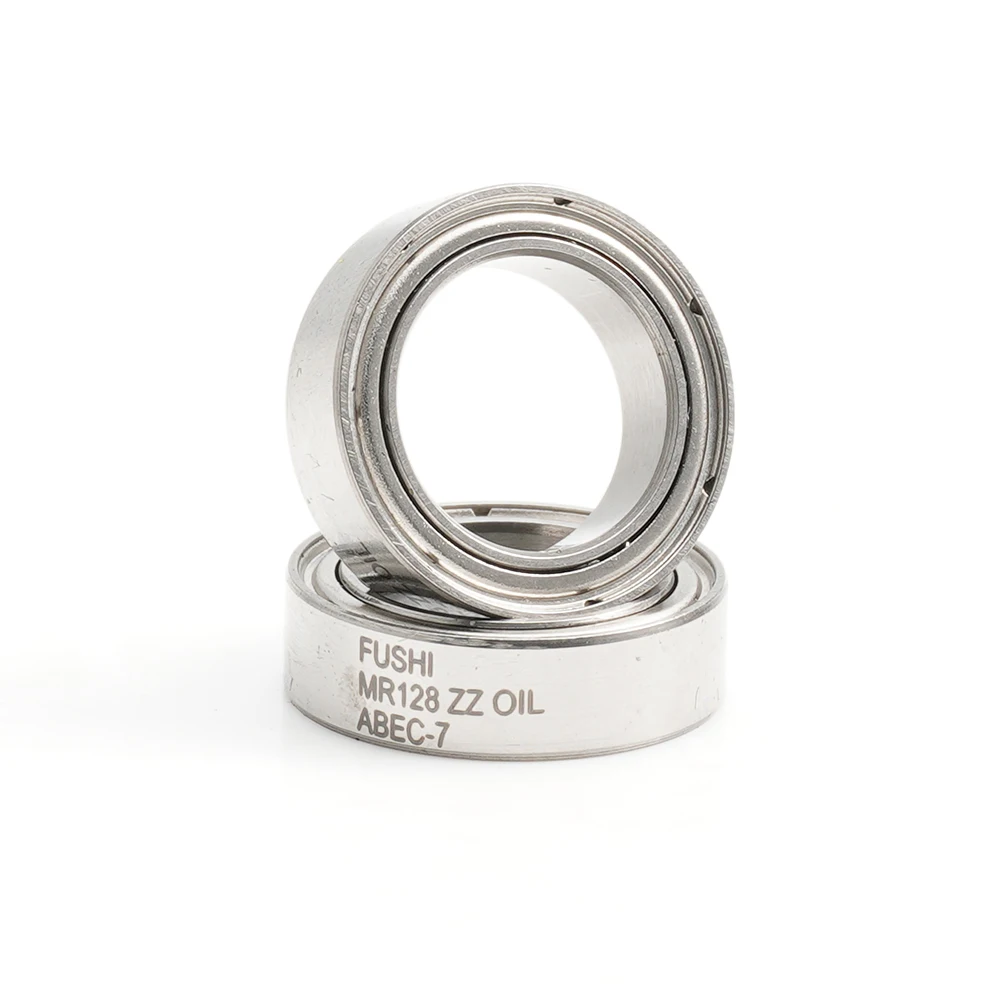

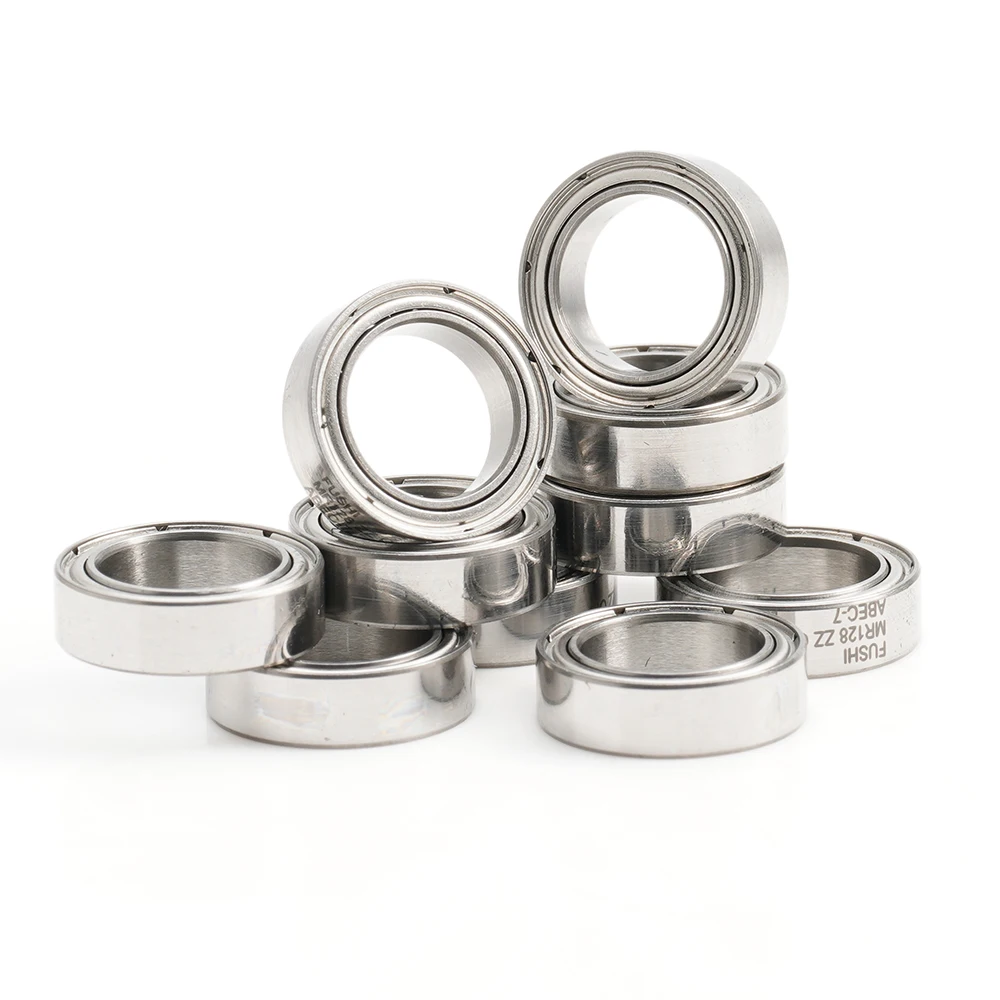

MR128ZZ Kugellager 8x12x3,5 mm 10 Stück ABEC-5 Miniatur metrisch Chromstahl L-1280ZZ W678ZZA MR128 Z ZZ Lager MR128Z

17,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Miniature Bearing Types & Features
Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can also be classified as "Open", "Shielded", or "Sealed" depending on the existence and type of seal or shield. Deep groove ball bearings have two inherent advantages
they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.
TECHNICAL SPECS
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Shielded
Part Number: MR128zz
For Shaft Diameter: 8mm
Bore Dia (d): 8 mm
Bore Dia Tolerance: -0.008mm to 0
For Housing ID: 12mm
Outer Dia (D): 12mm
Outer Dia Tolerance: -0.008mm to 0
Width (B): 3.5mm
Width Tolerance: -0.12mm to 0
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: 300 Series Stainless Steel
