200 W Quelle HDD SSD Pico Netzteil 12 VDC-SATA Mini-Computer Mini-PC Festplatte externes Leistungsmodul Einschalten mit PC HTPC NAS

Produktbeschreibung

200W source HDD SSD pico psuNote: This module has been upgraded to 8234B, which has optimized the circuit and made it more stable to use. What you will receive later will be this upgraded module
Name: DB8234B hard disk external power supply module.

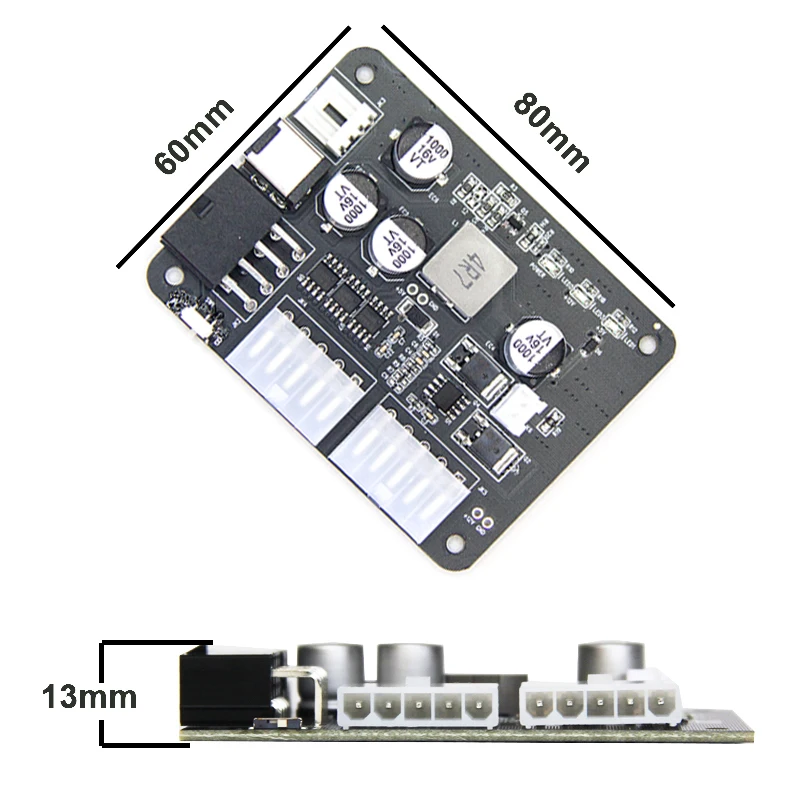

Size: 80x60x13mm.
Input voltage: 12V.
Output voltage: 12V+5V.
Features
1. It supports up to 200W high power and supports stable power supply for 8 hard drives.
2. Two switchable power supply modes, A mode supports power on with the motherboard or PC power supply, realizing shutdown and power off, and B mode supports direct power supply to the hard disk.
3. power on signal line bit sata interface, compatible with most hosts.
4. Two input interfaces are optional, and either the DC5525 interface or GPU8pin is optional.
5. Suitable for DIY NAS, industrial computer, soft routing, ordinary PC with power connection.
Note
1. This link does not include a power adapter. You need to purchase it yourself.
2. Please check the power of your hard drive and select the appropriate power supply.
3.5P-sata cable is a custom interface cable, very cold module line, please do not use other wires, so as not to burn out the module and hard drive. It is recommended that you buy our equipped hard drive cord.
Package

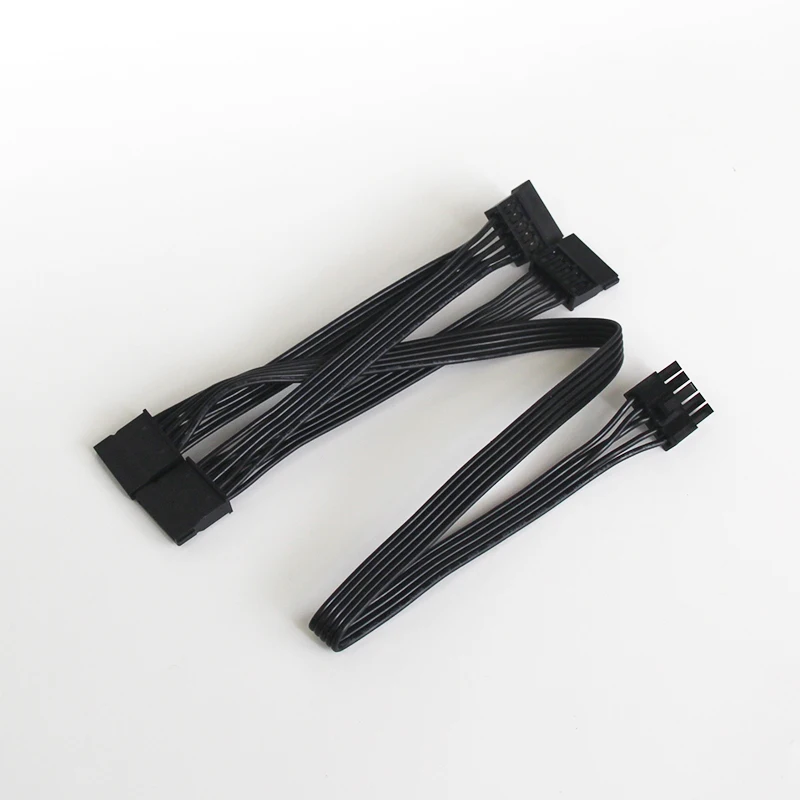

A SET: Power supply module x1, SATA signal line x1, 5P-4sata power cord x1
B SET: Power supply module x1, SATA signal line x1, 5P-4sata power cord x2
C SET: Power supply module x1, 2510 FAN 3P signal line x1, 5P-4sata power cord x1
D SET: Power supply module x1, 2510 FAN 3P signal line x1, 5P-4sata power cord x2

Produktdetails in Bildern

Produkteigenschaften

Markenname

DEBROGLIE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Typ

Kabeladapter

Choice

yes

semi_Choice

yes
