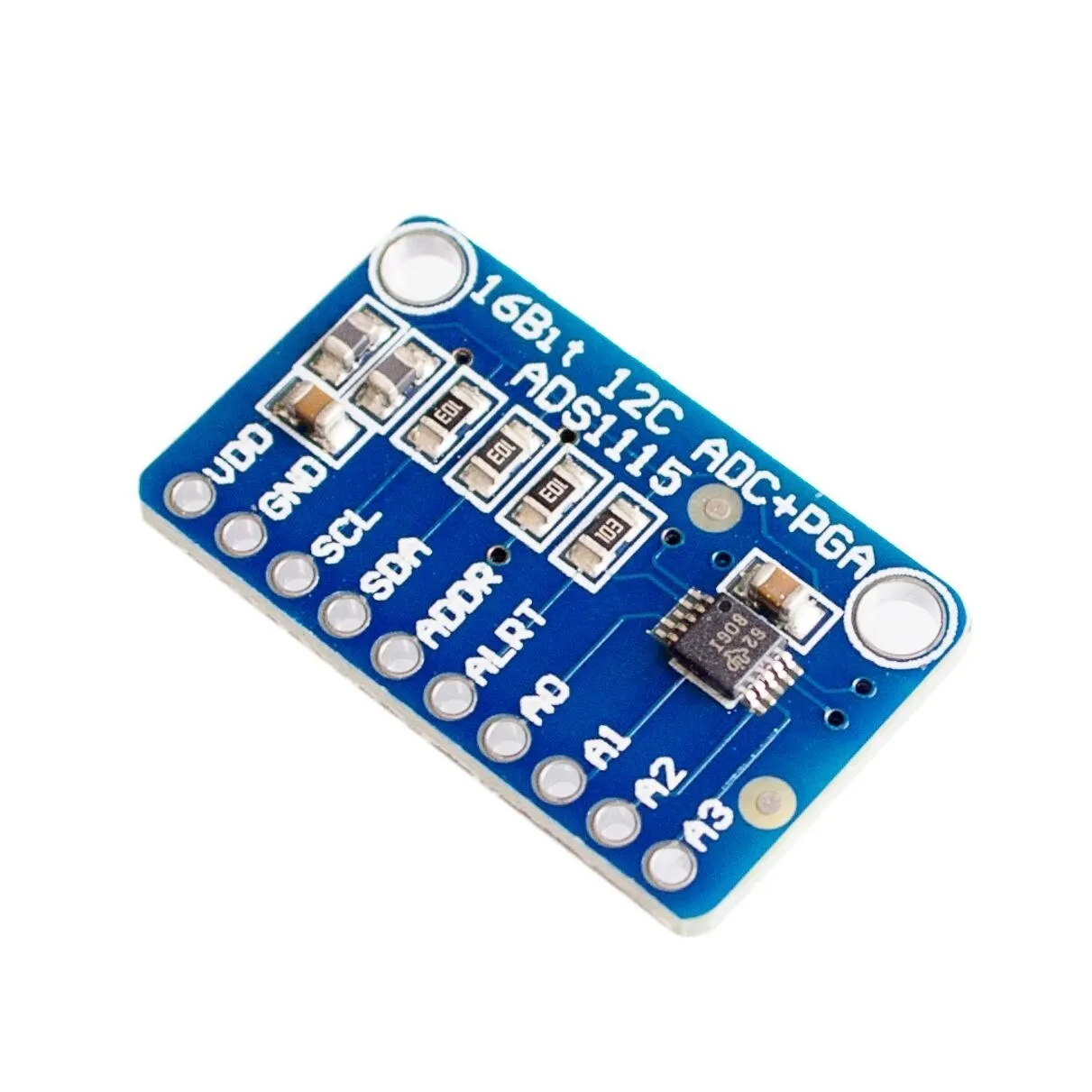

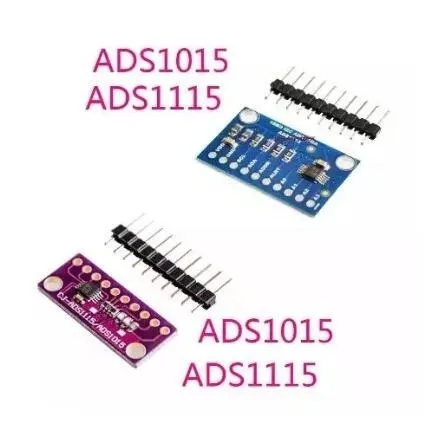

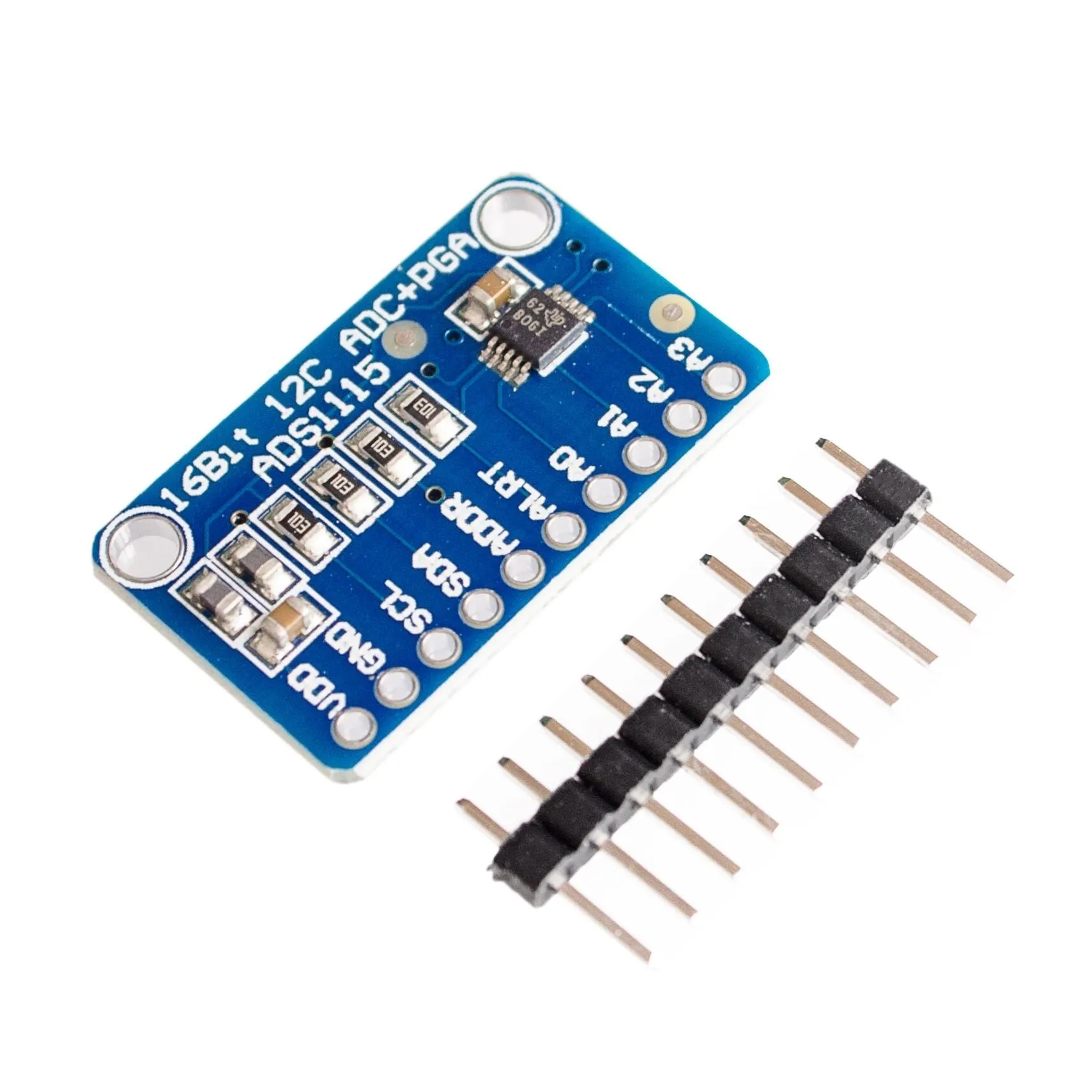

ADS1115 ADS1015 ADC ultrakompaktes 16-Präzisions-ADC-Modul-Entwicklungsboard

Produktbeschreibung

CJMCU-ADS1115 ultra-compact 16-precision ADC ADC module development board
FEATURES DESCRIPTION
23 ULTRA-SMALL QFN PACKAGE: The ADS1113, ADS1114, and ADS1115 are
2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16
WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless
LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package The ADS1113 / 4/5 are designed with precision, power, and.
Continuous Mode: Only 150A ease of implementation in mind The ADS1113 / 4/5.
Single-Shot Mode:. Auto Shut-Down feature an onboard reference and oscillator Data are
PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four
8SPS to 860SPS I2C slave addresses can be selected. The
INTERNAL LOW-DRIFT ADS1113 / 4/5 operate from a single power supply
VOLTAGE REFERENCE ranging from 2.0V to 5.5V.
INTERNAL OSCILLATOR The ADS1113 / 4/5 can perform conversions at rates
INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that
I2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low as
FOUR SINGLE-ENDED OR TWO ± 256mV, allowing both large and small signals to be
DIFFERENTIAL INPUTS (ADS1115) measured with high resolution. The ADS1115 also
features an input multiplexer (MUX) that provides two PROGRAMMABLE COMPARATOR differential or four single-ended inputs.
(ADS1114 and ADS1115)
The ADS1113 / 4/5 operate either in continuous

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Dimensions

85mm x 56mm x 17

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1
