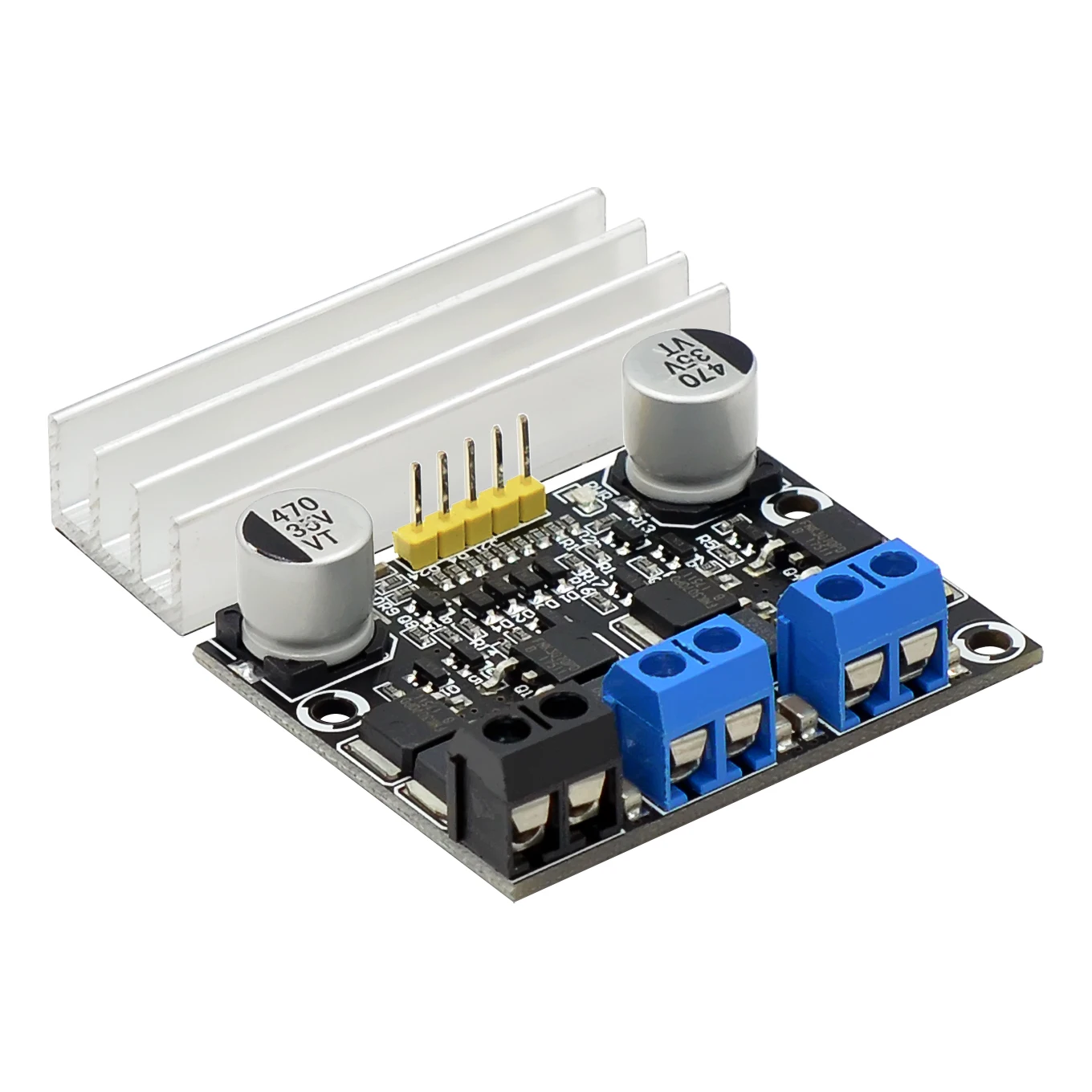

DC 3V-18V Motor Drive Board 10A Dual Channel H Bridge DC Motor Drive Modul PWM Geschwindigkeit Regler Dimmer Modul

Produktbeschreibung

Product parameters
1. Dual-channel H-bridge motor drive, which can drive two dc motors or a 4-line two-phase stepping motor at the same time, or load one end of the ground to control four channels
2. Module power supply voltage: 3V-18VDC
3. Signal power supply range: 3V-18VDC
4. The single working current is 10A, the peak current is 15A, and the current above 8A is recommended to enhance heat dissipation.
5 support PWM frequency range: 0-2khz
6. Duty cycle range: 0-100%
7. Diameter of mounting hole: 3mm.

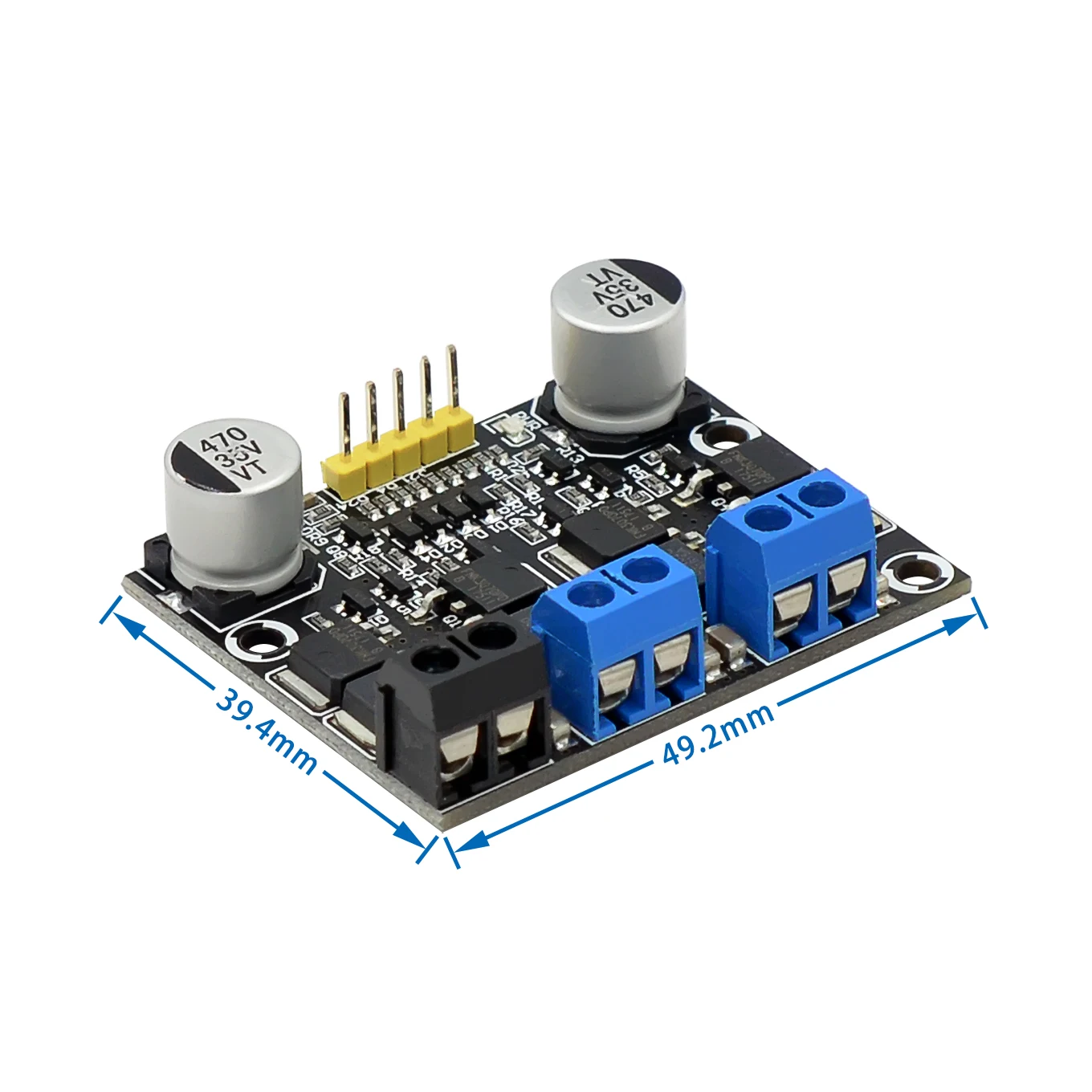

8. Size: 49*39*14mm
9. Weight: 28g
10. Packing form: Anti-static bag

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1
