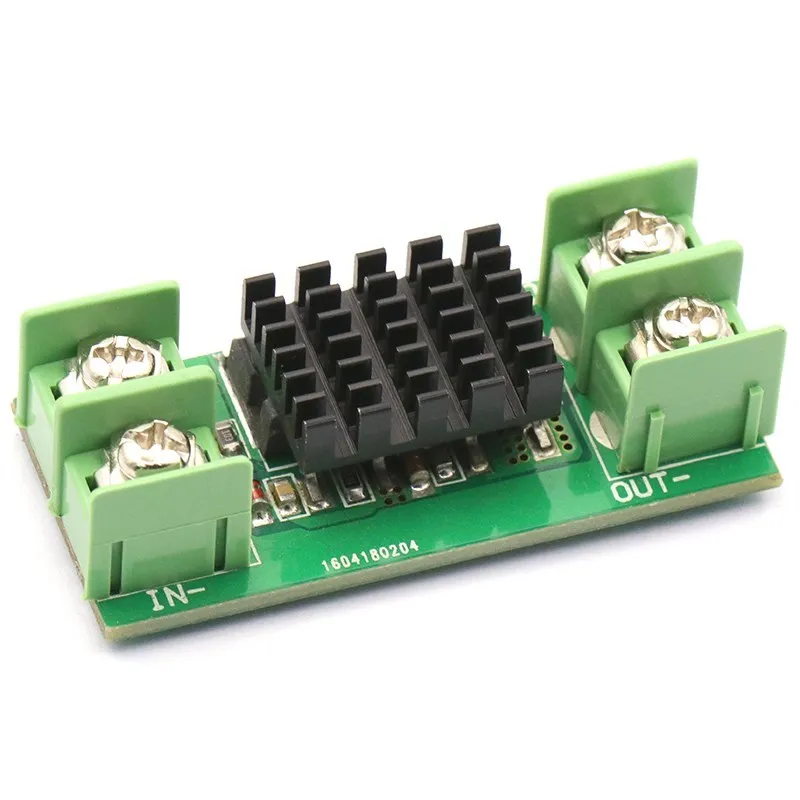

DC5-60V 15A Solar Anti-Rückfluss Ideale Diode Konstantstrom Netzteilmodul Batterieladung Anti-Reverse-Bewässerungsmodul

Produktbeschreibung

Product selling point:1. Using high-quality materials, the quality is guaranteed2. Anti-backflow solar panel3. All kinds of battery charging anti-backflow4. DC-DC constant voltage and constant current module output anti-reverse irrigation5. More applications to play freelyParameter:Product name: 15A ideal anti-backflow diodeWorking voltage: DC5-60VWorking current: 15A (MAX) peak value 18A (without heat sink working within 10A for a long time, it can be used in parallel to increase the working current)Static working current: 0.2mA (at 12V, there will be errors when the working voltage is different)Working temperature: -40~+85°It is used for anti-backflow of solar panels and anti-backflow of battery charging. Effectively reduce heat generation and improve efficiencyIdeal anti-backflow diode, 8 milliohm internal resistance in parallel, ultra-low drop, replace ordinary diodesPackage Included:1* Anti-backflow module

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1

Choice

yes

semi_Choice

yes
