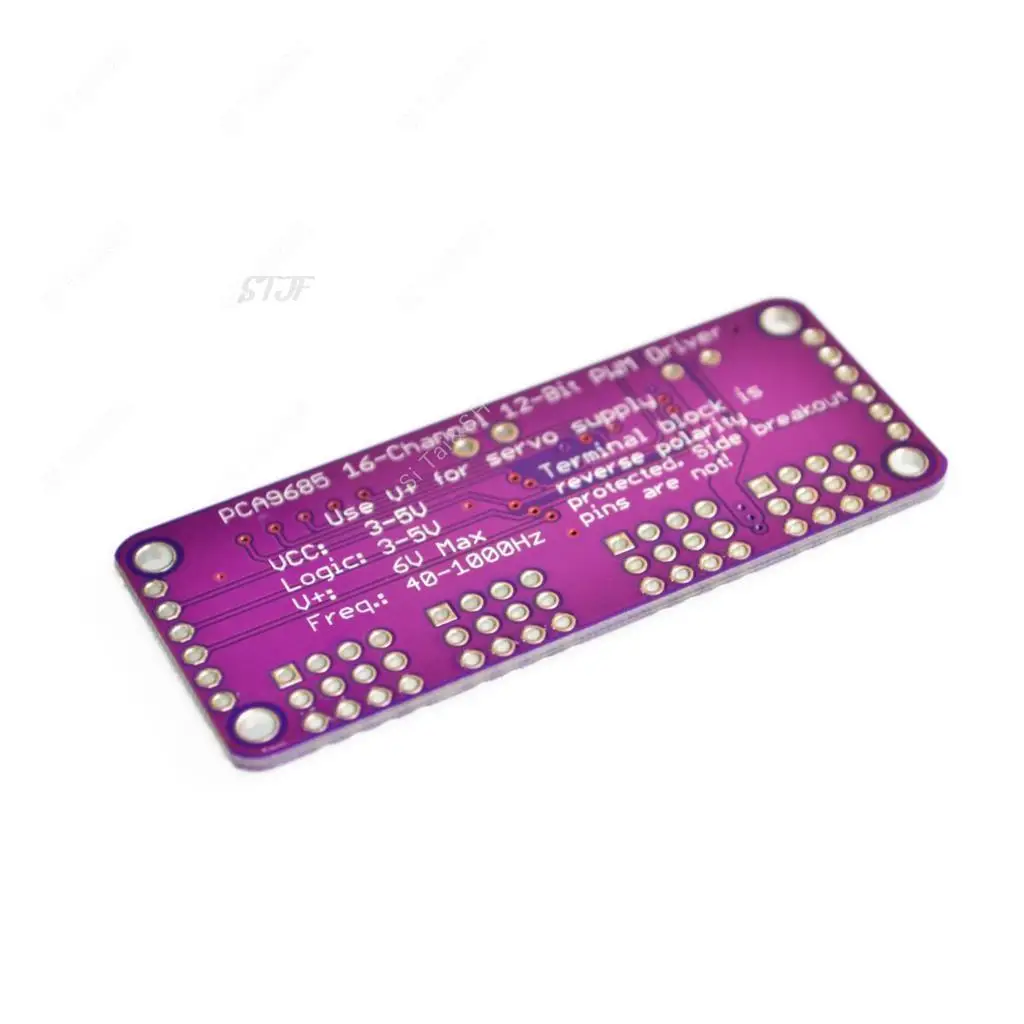

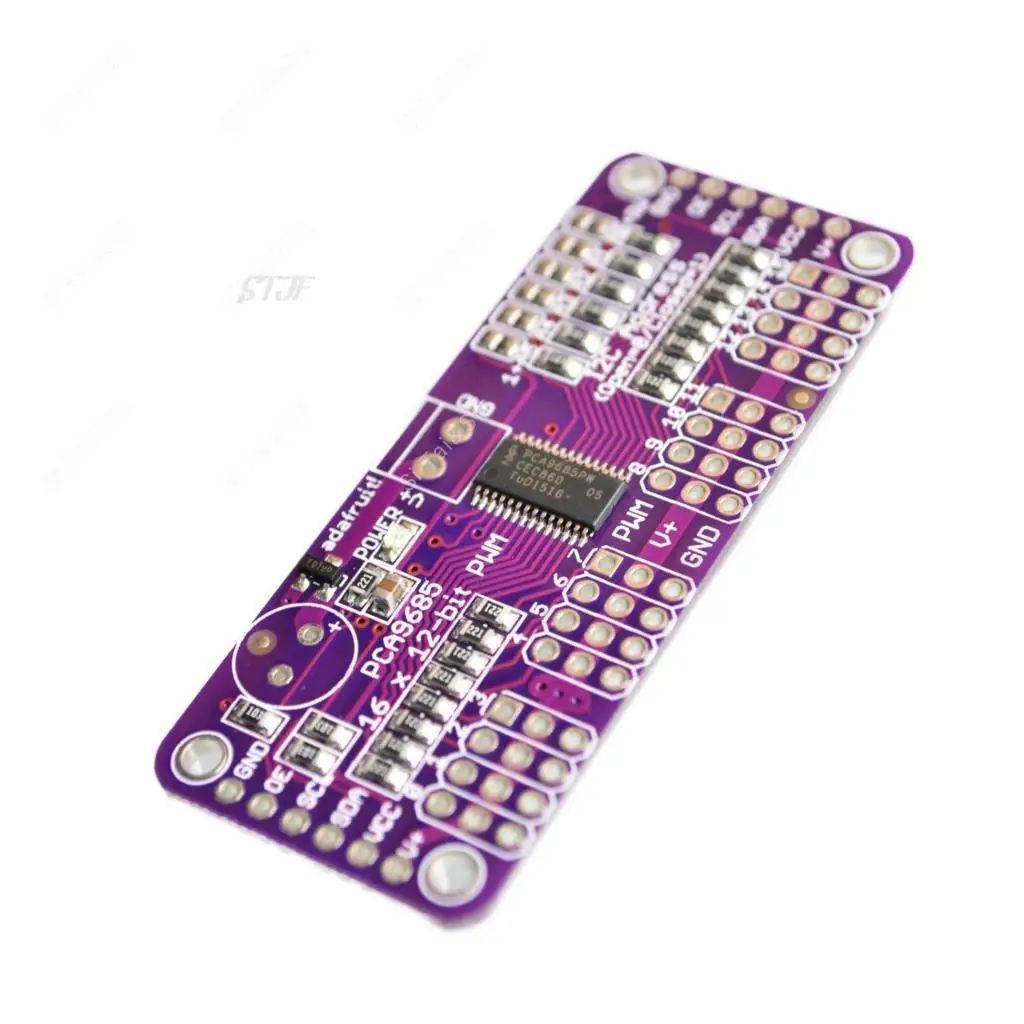

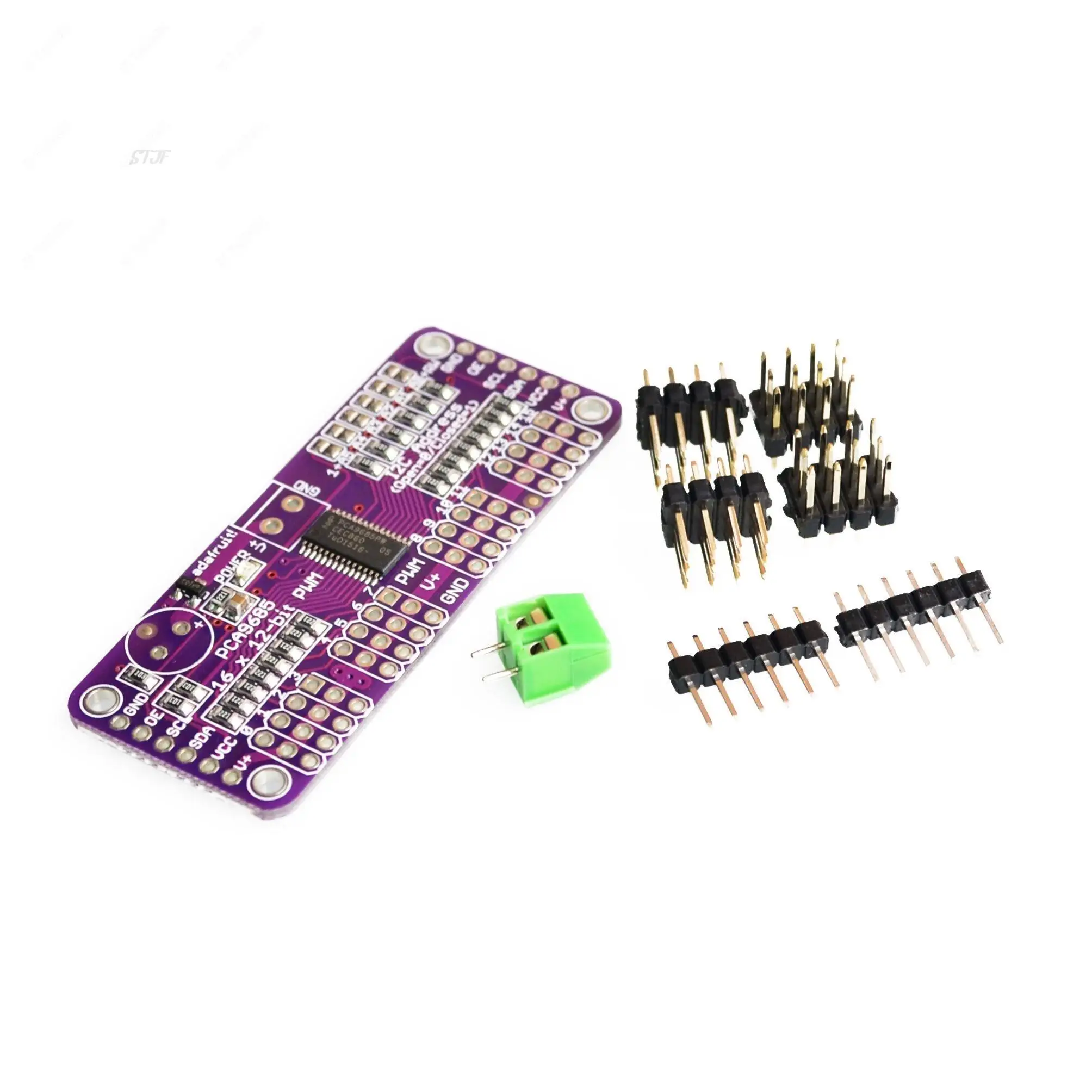

16-Kanal-12-Bit-PWM/Servo-Driver-I2C chnitt stelle pca9685-Modul für Arduino-oder Himbeer-Pi-Shield-Modul Servo-Shield

Produktbeschreibung

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.
Notice: The new tracking number for China Post Ordinary Small Packet Plus only can track it have been ship out of China, not more Tracking information,even it arrived or not.
Please do not freeloaders,if you can not accept without more tracking information.
Please choose China Post Air Mail if you want a full tracking info.
Provide tracking numbers over>7usd, free ship by China post Registered air mail, mixed items OK in my store!
16 LED drivers, each output can be programmed to
Turn off
Open
Programmable LED brightness
Programmable fuzzy group (dim) / Flashing LED brightness independent mixed with
1MHz Fast-mode Plus is compatible with high drive capability has 30mA on SDA I2C bus interface to drive highly capacitive bus
Each LED output can be achieved from the fully closed (the default) to 4096 (12) between the maximum brightness linear programmable brightness
Software programmable open-drain LED output selection (the default is a push-pull) of 16 push-pull outputs (at 5V 25mA sink can absorb and provide 10mA current draw), no input function
Programmable output state is in response to an order to change or stop to achieve simultaneously update all outputs or by-byte (byte-by-byte) update output (default is "Stop command to change")
Effective low output enable input pin when the pin is high, the LED output can be programmed to 0,1 or tri-state (high impedance power-on default)
6 hardware address pins so that the same can be connected to 62 PCA9685 I2C devices on the bus
LED output frequency (all LED) is typically 40Hz to 1000Hz (When the oscillator is 25MHz, the prescaler register default value 1EH 200Hz refresh rate will generate a)
4 software programmable I2C bus address (an LED group call (Call) address and three sub-LED call (Call) address) such that the device can be set in any combination to be addressed at the same time (e.g., a register used for " All calls (All Call) "then all PCA9634 devices on the I2C bus can be addressed at the same time, while the second register for three different addresses, then a device group 1/3 bus devices can be addressed at the same time), you can enable and disable the software I2C bus address
Software reset feature (SWRST Call) allows the device via I2C bus reset
25MHz internal oscillator requires no external components

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1
