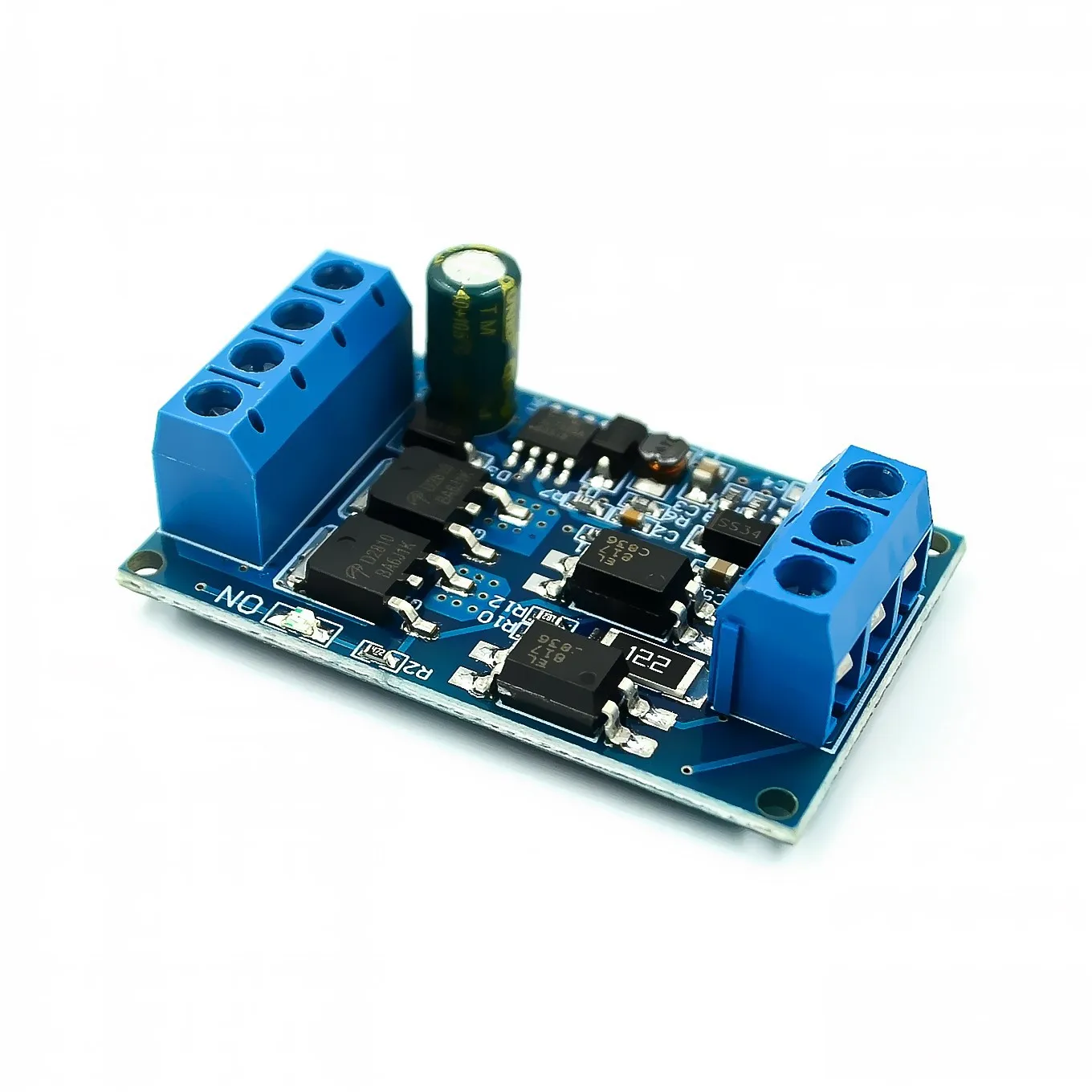

Hochleistungs-MOS-Röhren-FET-Trigger-Antriebsmodul mit 600 W, PWM-Steuerung, High-/Low-Level-Trigger-Schalter, DC 4 V-60 V, 5 V, 12 V, 24 V

Produktbeschreibung

Module highlights
1. This module support high level trigger, low level trigger, switch value control, PWM control
2. Using imported double MOS shunt active power output, lower internal resistance, larger current, strong power, under normal temperature10A,600W, meet the use of most equipment
3. Support ultra-wide voltage: DC 4V~60V
4. Easily realize the control of high-power equipment.
Note
1. At the same time, only one signal can be used to control this module, and cannot be used at the same time.2 A new species and a2 more than one kind of signal to control this module
2. High level trigger voltage range: DC3.0V ~ 24V that signal3.0V ~ 24V when MOS the pipe break over less0.6V that0V ~ 0.6V, MOS if the tube is closed, the signal voltage must not be0.6V ~ 3.0V between MOS in the state of not fully open, the use of high power Burns MOS
3. Low level trigger voltage range: DC 0V~0.6V, that is, the signal voltage is0V ~ 0.6V when MOS the pipe break over3.0V, MOS if the tube is closed, the signal voltage must not be0.6V ~ 3.0V between MOS in the state of not fully open, the use of high power Burns MOS.
Product parameters and applications
1: working voltage: DC 4V--60V
2: trigger signal source: the high-level trigger ( DC3.0V--24V), low level trigger ( DC 0.0V~0.6V), switch value control, can be connected to single-chip Microcomputer IO port, PLC interface, DC power supply, etc. That can pick up PWM signal frequency0-2.5KHZ support.
3: output Capacity: DC DC 4V--60V, continuous current at normal temperature10A power600W! Under the condition of auxiliary heat dissipation, the current can reach15A.
4: application: the output terminal can control high-power equipment, motors, bulbs, LED light strip, DC motor, micro water pump, solenoid valve, etc. can be input PWM, control the rotation speed of the motor, the brightness of the lamp, etc.
5: service life: unlimited switch; Working temperature:-40-85; Size:4.6*2.9 * 1.5cm

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Choice

yes
