RJ45 Spring Terminal Breakout Board Kabel RJ45 Ethernet Stecker auf 8Pin Solderless Press Crimp Adapter Extender Kabel für CAT5

Produktbeschreibung

Product Specification

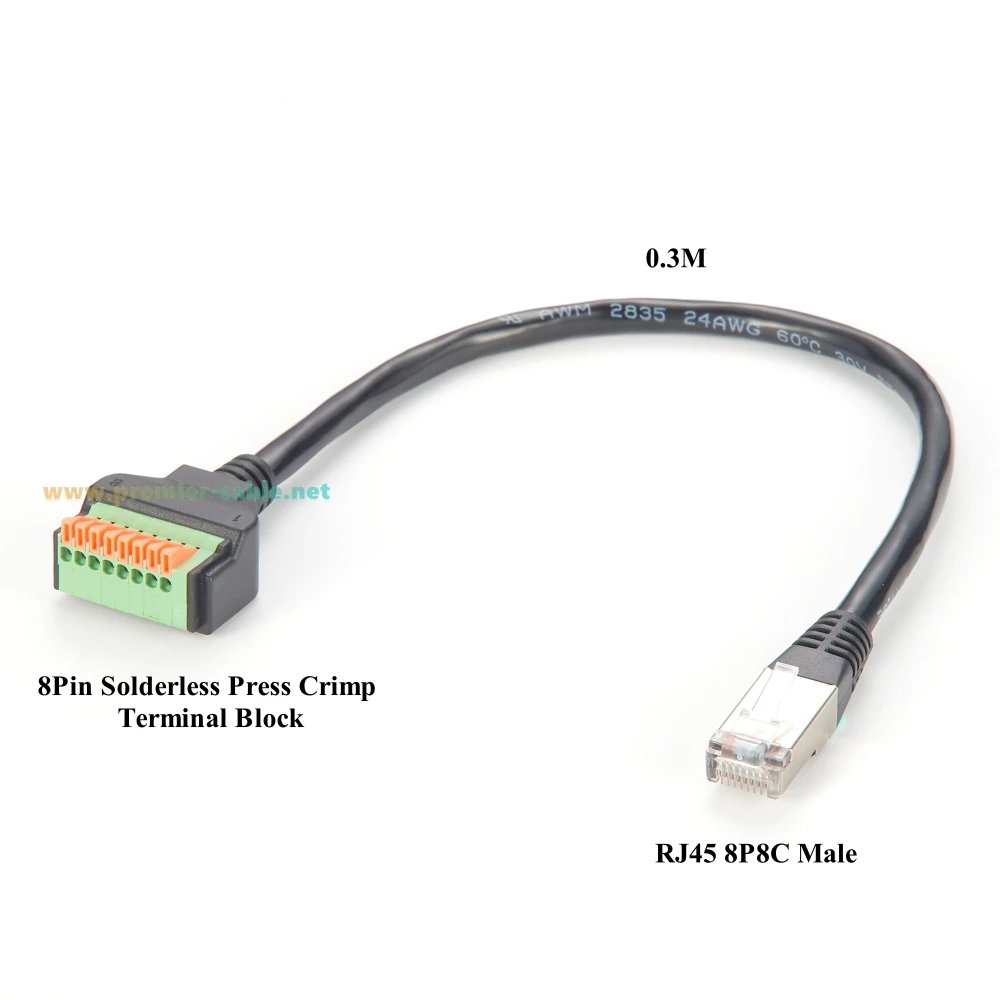

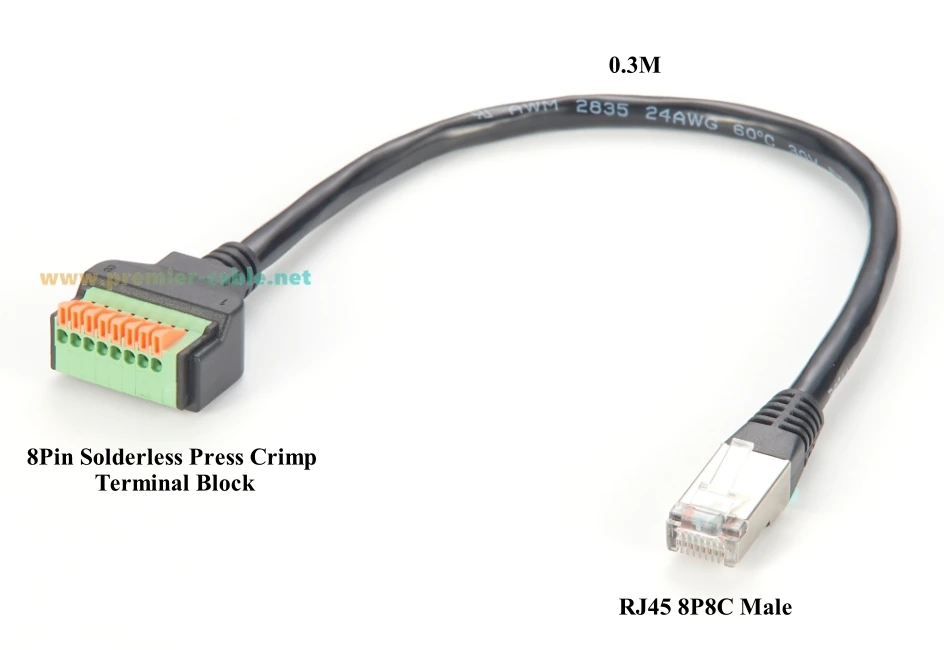

Connector A: RJ45 8P8C Male Connector
Connector B: 8-pin Spring Crimp Terminals Connector
Length: 0.3m
PINS: Gold Plated
Network: Cat5 Ethernet Network
High Bandwidth: up to 100MHz
Maximum Transmission Rate: up to 100Mbps
Feature

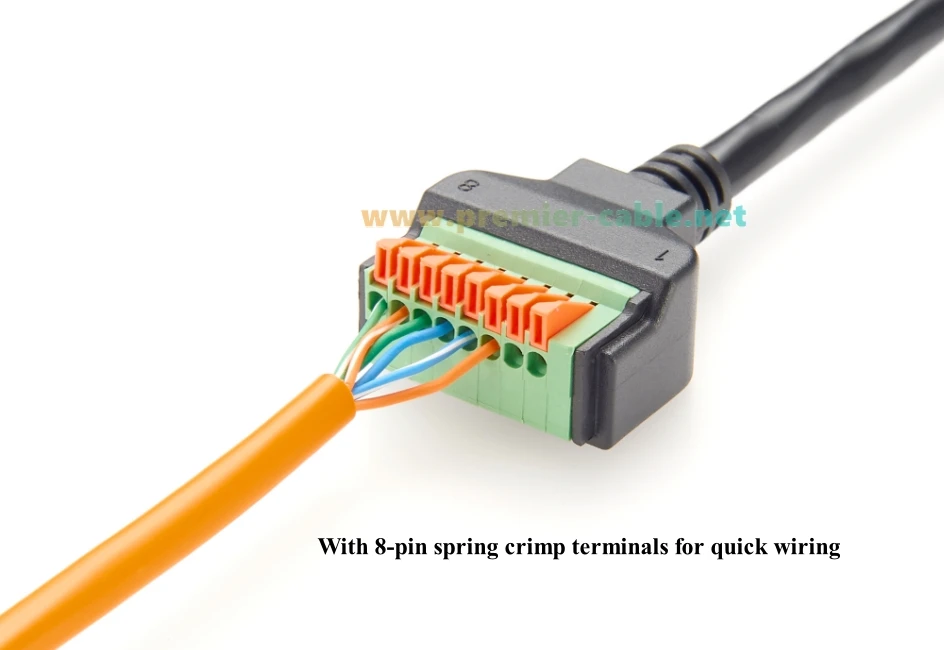

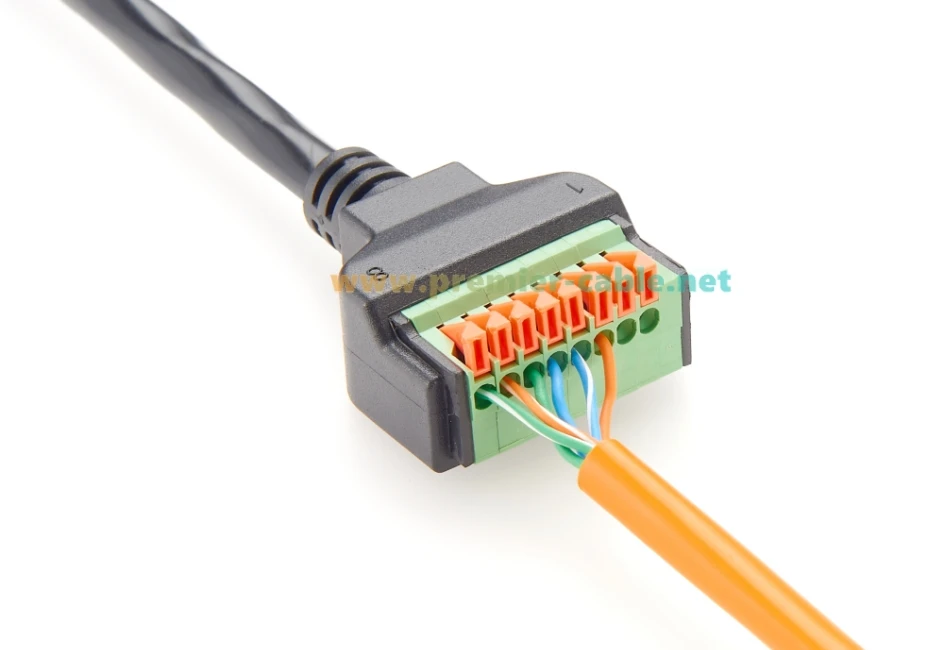

【Crimp/Solderless】RJ45 8P8C Male to 8 Pin Quick Connect Terminal mounting adapter cable.With 8-pin spring crimp terminals for quick wiring, no soldering, no special tools required.
【Customise】RJ45 to 8Pin Network Extension Solderless Mount connector cable.Open wiring port, you can freely define the pin function.
【Easy Installation】The installation process is relatively simple, just fix the terminal block in the selected position and insert the cable, and does not require too many complex tools or skills.
【Application】RJ45 8P8C Male to 8Pin Solderless Crimp mount connector cable.Used to extend Ethernet, router, computer, local area of the network terminal port.Can also be used for UTP cables, CCTV cameras, audio and video analogue, GPIO interfaces and other uses.
Various Styles
+

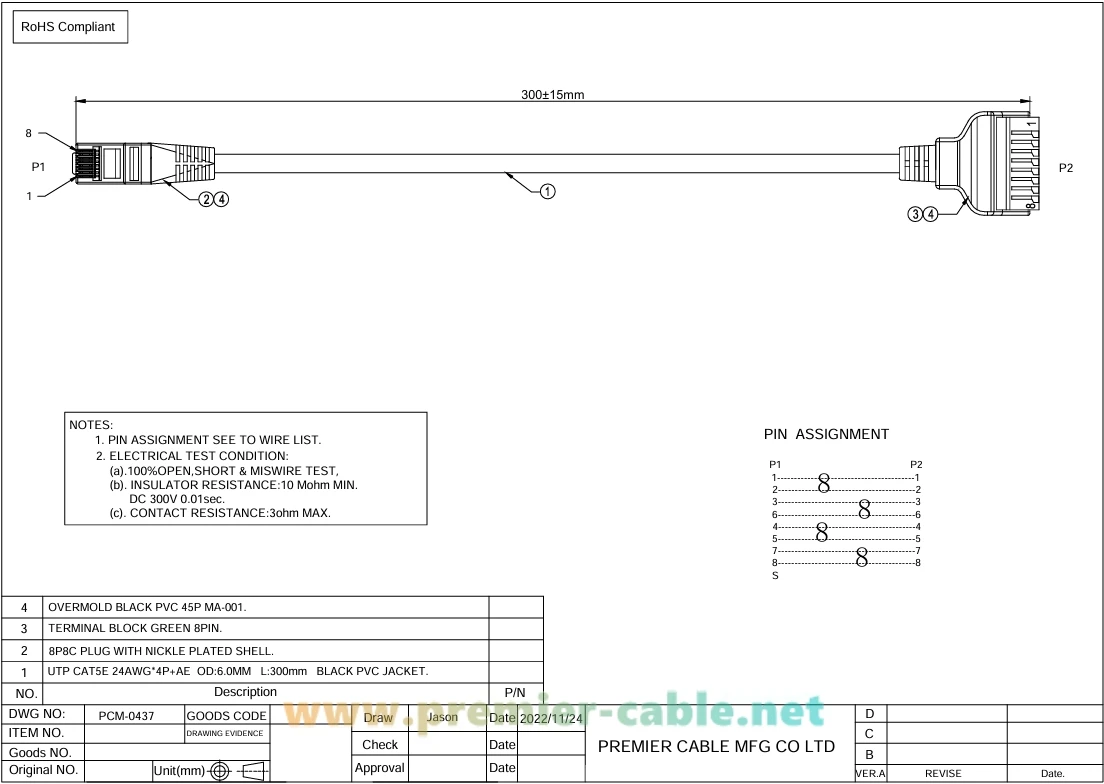

DrawingProduct Details

Produktdetails in Bildern

Produkteigenschaften

Markenname

PremierCable

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

RoHS-Konformität

Modellnummer

PCM-0437

Kapazität

no

Connector

RJ45 to Terminal Block 8P8C

Install

No Soldering Required Just Fix the Panel

Vibration-Proof Connection

The terminal blocks are capable of withstanding vibration and shock

Choice

yes

semi_Choice

yes
