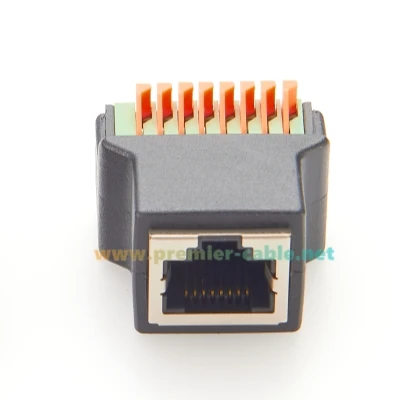

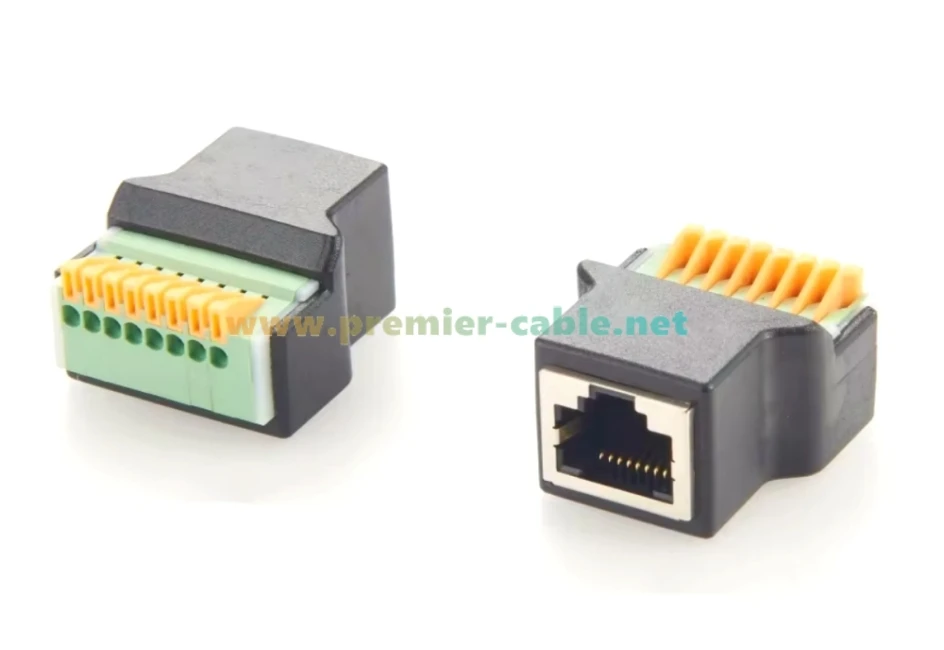

RJ45-Buchse, Breakout-Board, lötfrei, RJ45-Ethernet auf 8-polige Schnellverdrahtung, RJ45 8P8C, Federpress-Terminal, Crimp-Adapter-Extender

Produktbeschreibung

Specification

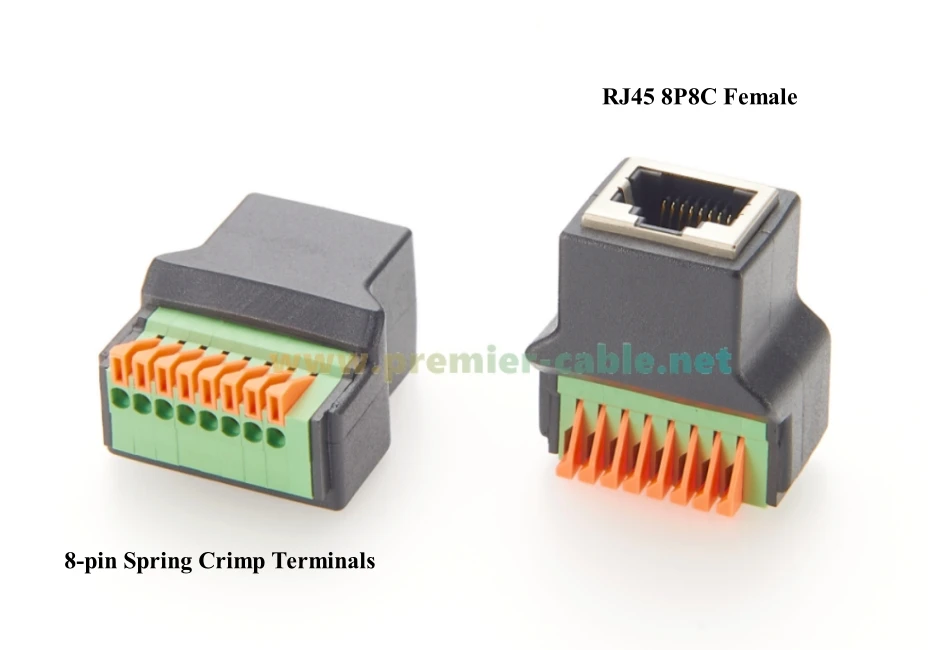

Connector A: RJ45 8P8C Female Adapter
Connector B: 8 Pin Spring Crimp Terminal Breakout Block
Network: Cat5 Ethernet Network
High Bandwidth: up to 100MHz
High Bandwidth: up to 100Mbps
PINS: Gold Plated
Feature

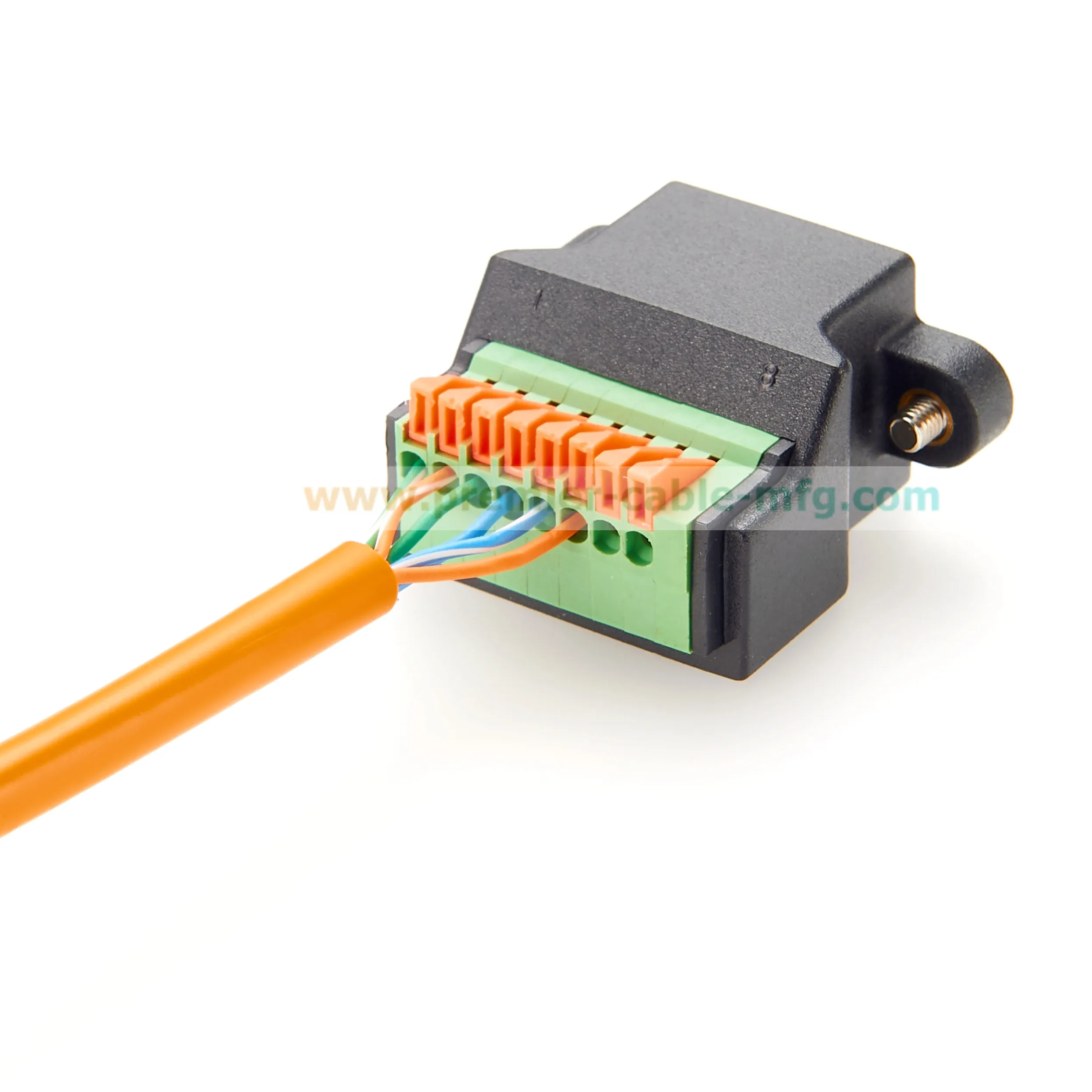

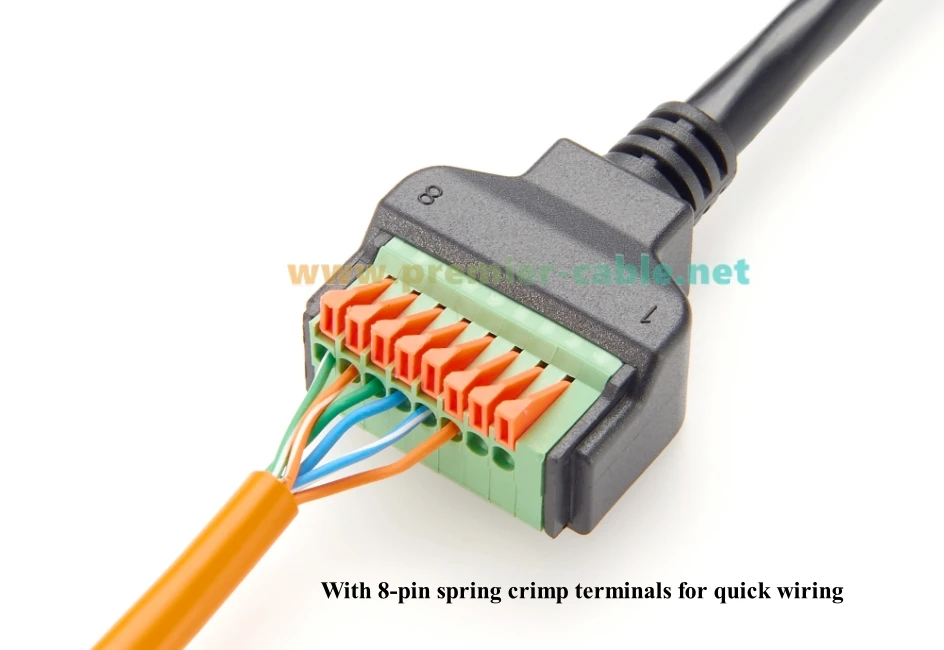

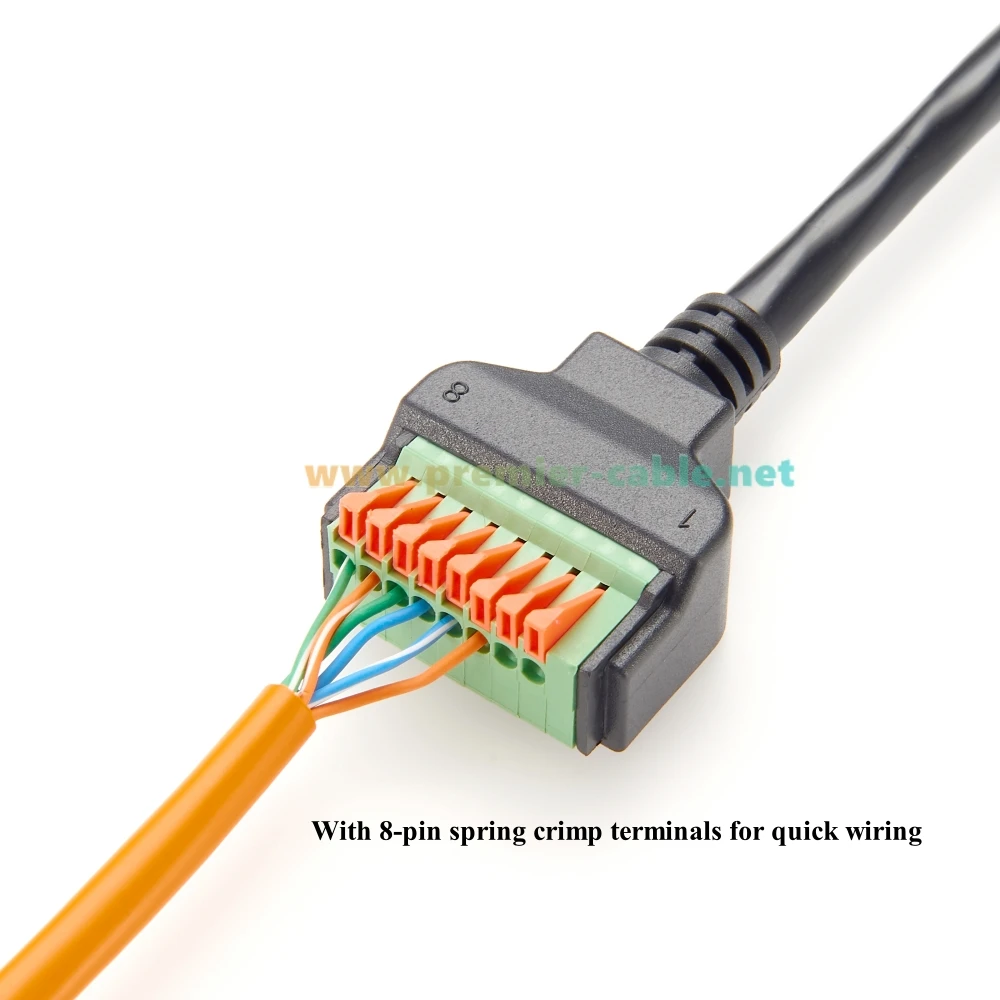

【Crimp/Solderless】RJ45 8P8C Female to 8 Pin Quick Connect Terminal mounting adapter. With 8-pin spring crimp terminals for quick wiring, no soldering, no special tools required.
【Customise】RJ45 to 8Pin Network Extension Solderless Mount connector.Open wiring port, you can freely define the pin function.
【Easy Installation】The installation process is relatively simple, just fix the terminal block in the selected position and insert the cable, and does not require too many complex tools or skills.
【Application】RJ45 8P8C Female to 8Pin Solderless Crimp mount connector. Used to extend Ethernet, router, computer, local area of the network terminal port. Can also be used for UTP cables, CCTV cameras, audio and video analogue, GPIO interfaces and other uses.
Various Styles
+

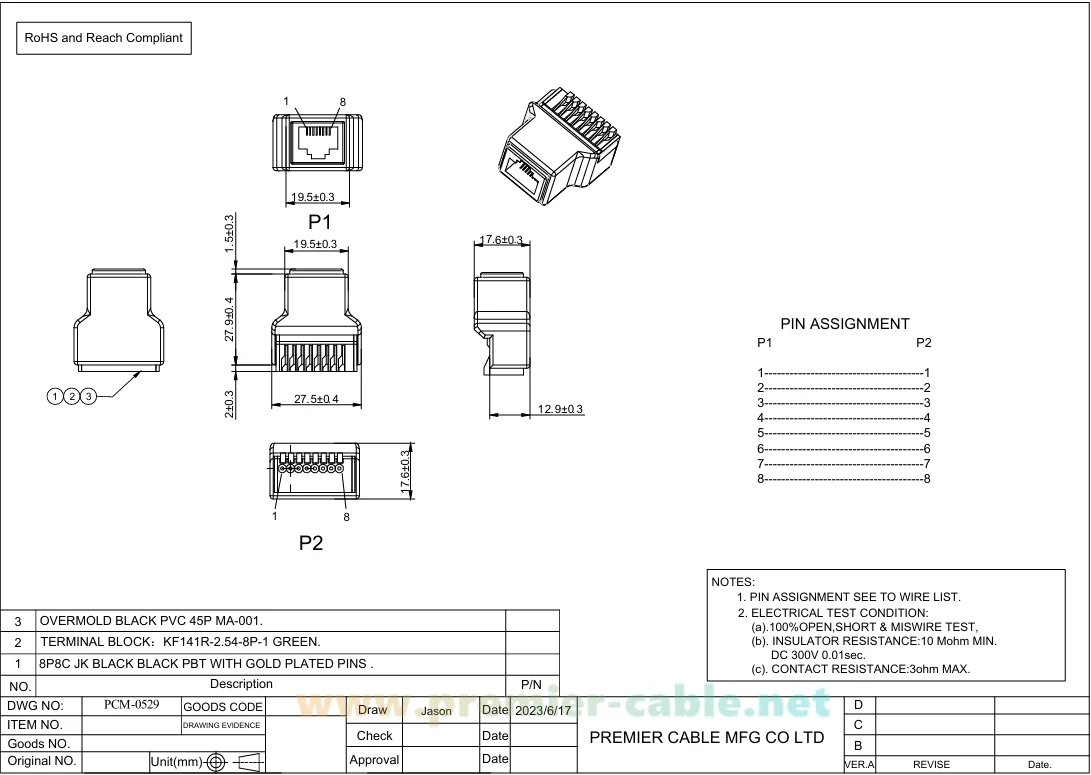

DrawingProduct Details

Produktdetails in Bildern

Produkteigenschaften

Markenname

PremierCable

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Kapazität

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

RoHS-Konformität

Modellnummer

PCM-0539

Installation

Weld-free no Tools Required

Scope of Application

Communication Ethernet computer, etc

Connector

RJ45 Female Terminal Block

Choice

yes

semi_Choice

yes
