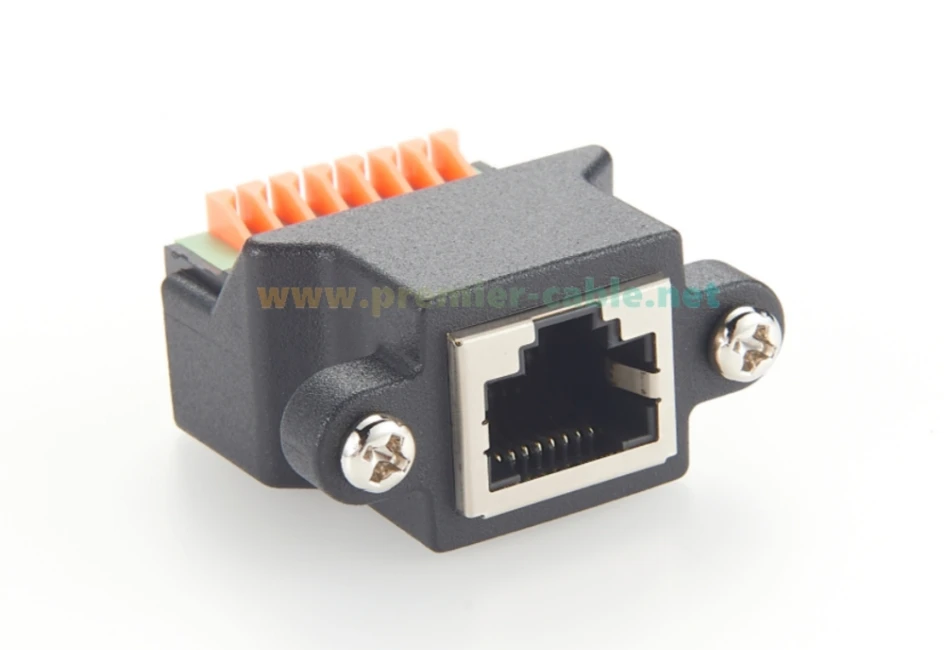

RJ45-Buchse mit Schraubklemmenblock, RJ45-Ethernet 8P8C auf schnelle Feder, lötfreier Klemmadapter für PIKA CT301 Stromwandler

Produktbeschreibung

Product Specification
Connector A: RJ45 8P8C Female
Connector B: 8-pin Spring Crimp Terminals
Nut: 5*5mm M3
PINS: Gold Plated
RJ45 Screw Mount to Solderless Crimp Terminal Block for PIKA CT301 Split Core Current Transformer
Feature

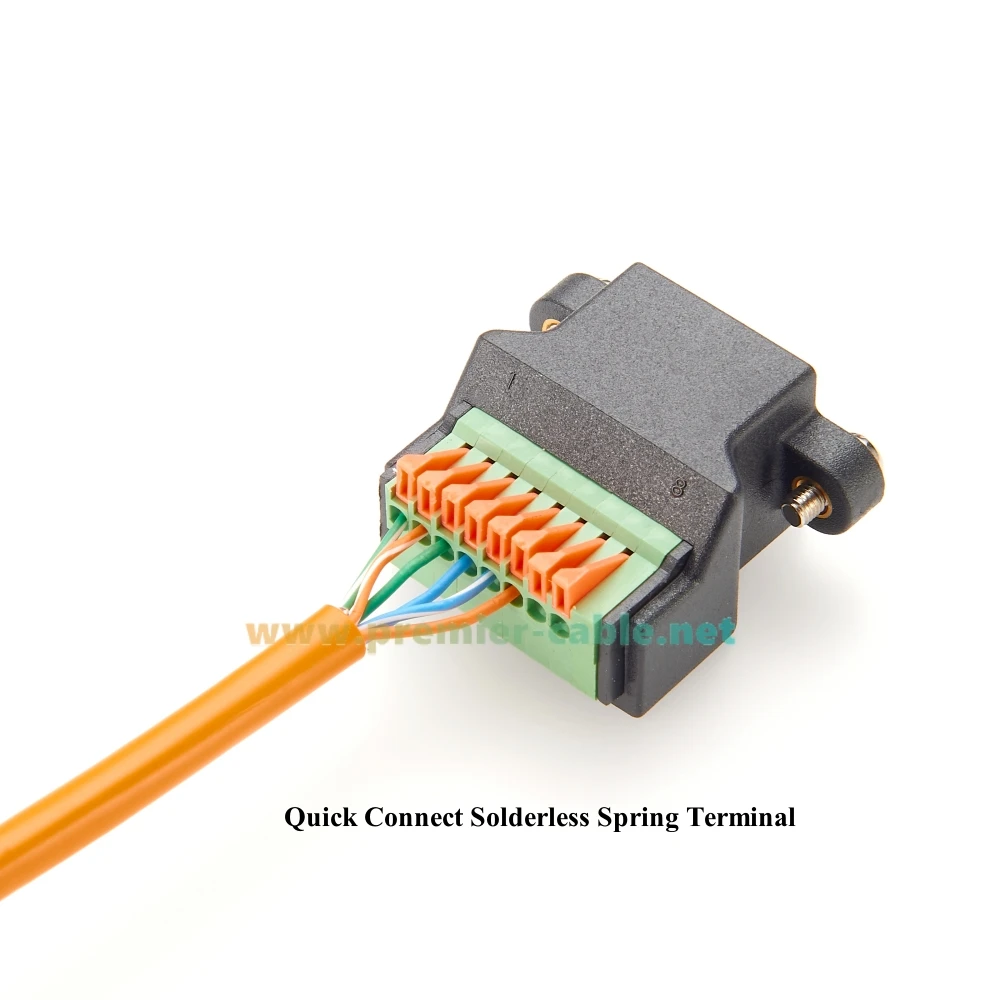

【Crimp/Solderless】RJ45 8P8C Female to 8 Pin Quick Connect Terminal mounting adapter.With 8-pin spring crimp terminals for quick wiring, no soldering, no special tools required.
【Fixed Installation】RJ45 female Solderless Quick Connect Adapter Mount socket.With 2 threaded holes for easy installation in equipment cabinet, equipment board, wall, desktop, floor plug.
【Customise】RJ45 to 8Pin Network Extension Solderless Mount connector.Open wiring port, you can freely define the pin function.
【Application】RJ45 8P8C Female to 8Pin Solderless Crimp mount connector.Used to extend Ethernet, router, computer, local area of the network terminal port.Can also be used for UTP cables, CCTV cameras, audio and video analogue, GPIO interfaces and other uses.
Various Styles
++

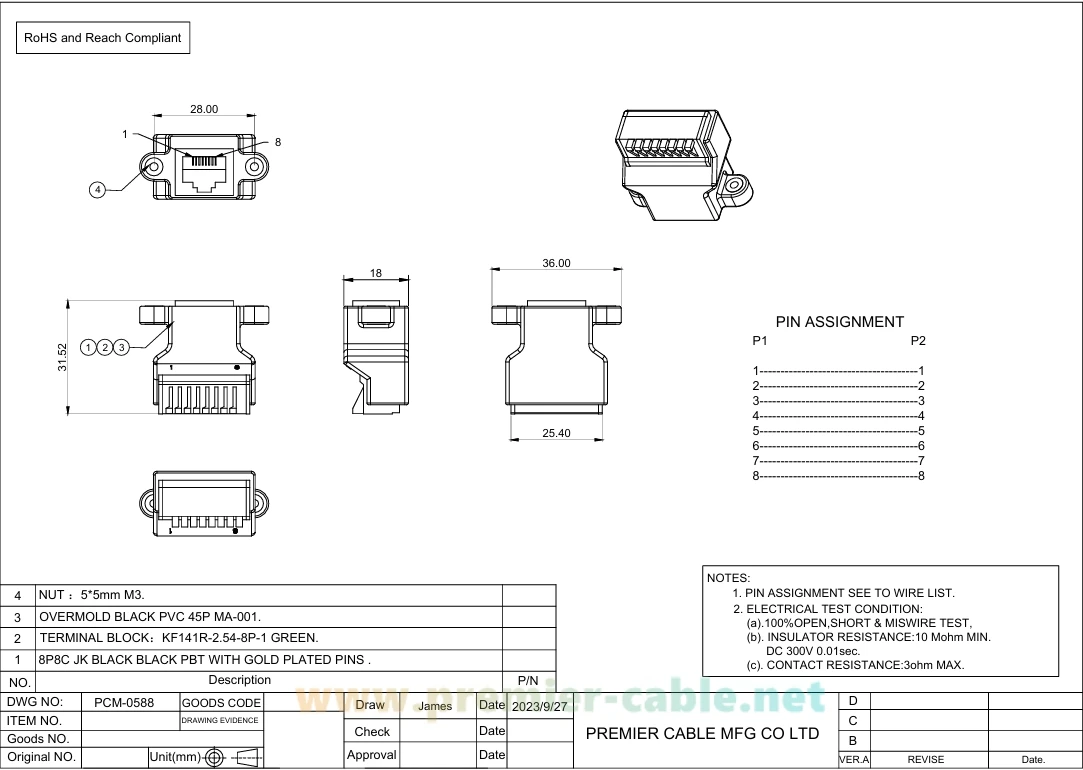

DrawingProduct Details

Produktdetails in Bildern

Produkteigenschaften

Markenname

PremierCable

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Kapazität

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

RoHS-Konformität

Modellnummer

PCM-0588

Panel mounting

No Soldering Required Just Fix the Panel

Connector

RJ45

Vibration-Proof Connection

The terminal blocks are capable of withstanding vibration and shock

Choice

yes

semi_Choice

yes
