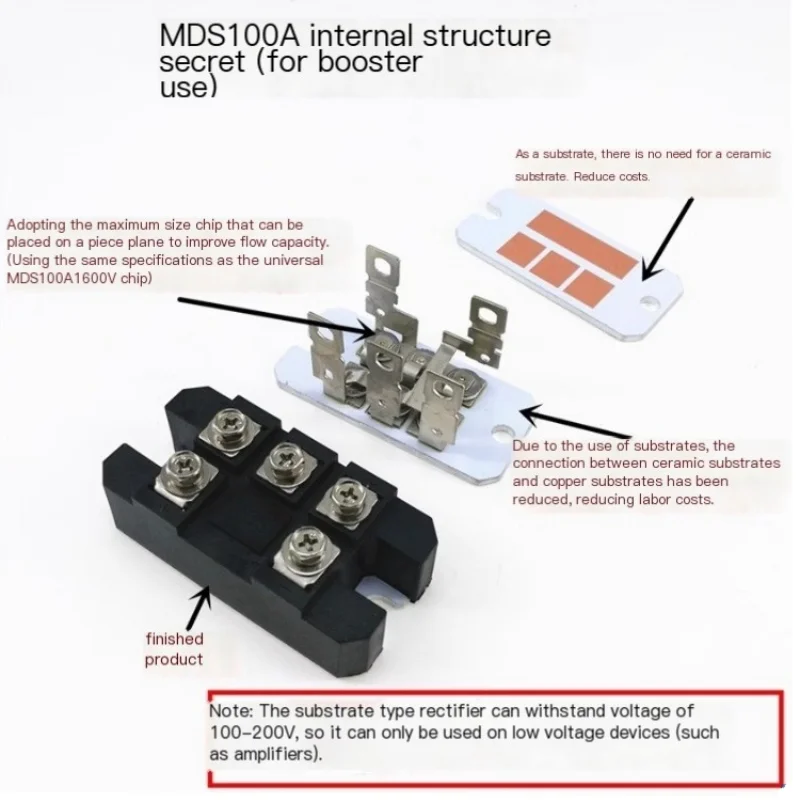

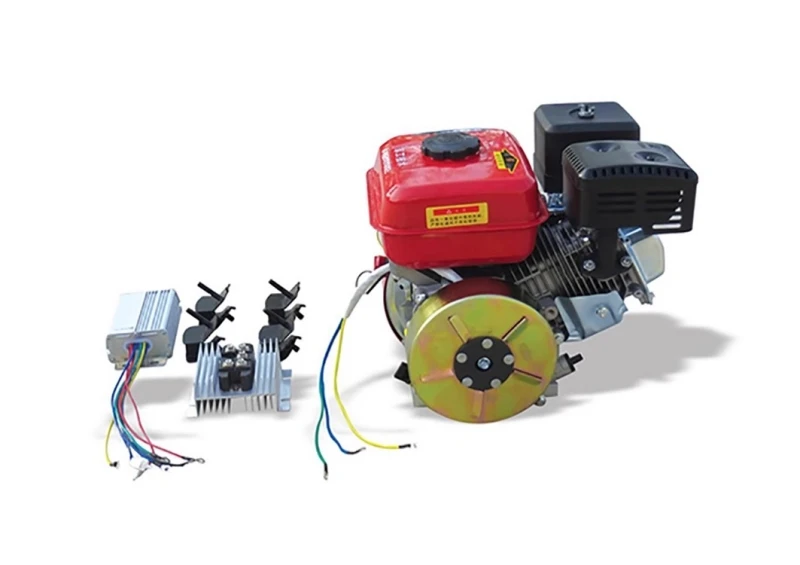

MDS100A Dreiphasen-Gleichrichterbrücke 12 V 24 V 36 V 48 V 60 V 110 V 200 V Speziell für Reichweitenverlängerungen für Elektrofahrzeuge

Produktbeschreibung

Free shipping MDS100A Three phase rectifier bridge 12V 24V 36V 48V 60V 110V 200V Special for electric vehicle range extenders
Recommended for applications below 200V
reminder
1. About product selection
The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.
(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)
2. Radiator configuration
When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use
3. Regarding the source of goods
Regular models are available in stock and can be sold directly. For bulk orders, please inform customer service of the quantity ordered and confirm the delivery time with them.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Choice

yes

semi_Choice

yes
