ESP32-S3-Matrix-Entwicklungsboard, integrierte 8×8 RGB-LED-Matrix und QMI8658C-Lagesensor, unterstützt Wi-Fi und Bluetooth LE

Produktbeschreibung

Introduction

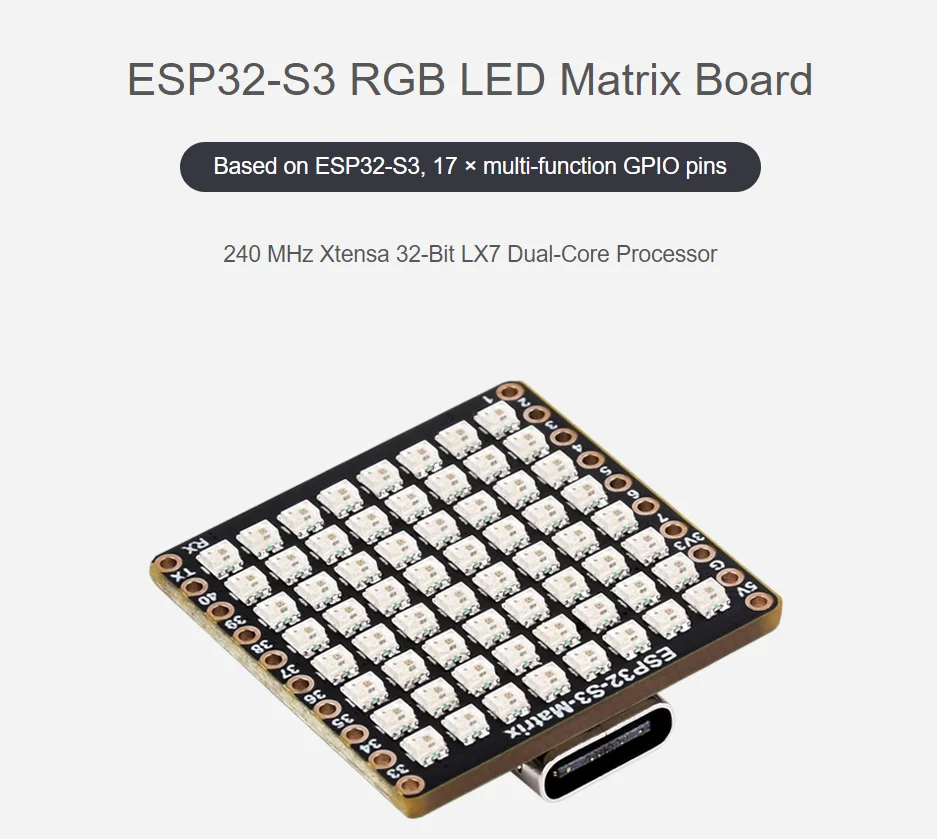

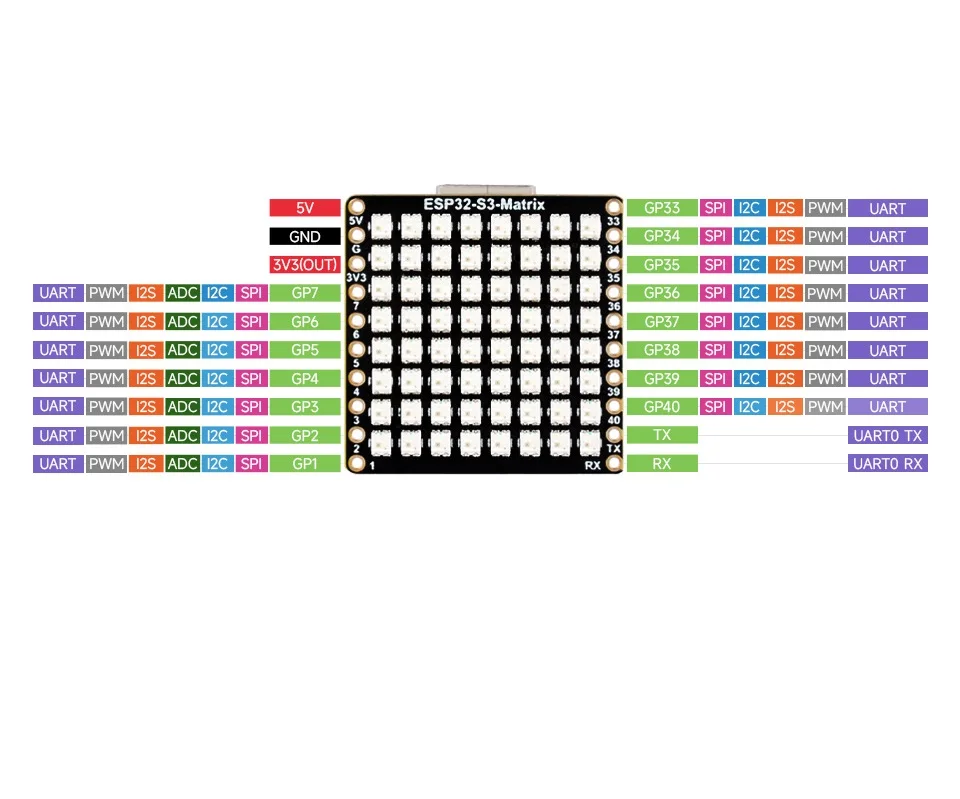

ESP32-S3-Matrix is a compact microcontroller development board with multiple digital interfaces, such as 20x GPIO pin headers, and onboard 8*8 RGB LED matrix, which can be used for displaying cool RGB LED effects or simple images.
In terms of hardware, it adopts ESP32-S3 as the main chip, integrates high-performance Xtensa® 32-bit LX7 dual-core processor, low-power co-processor, WiFi, Bluetooth, RF module, and other peripheral interfaces, enabling it to be compatible with other devices, and is easy to use.
In addition, it supports development on Arduino IDE, and you can easily get started with it and apply it to your projects.

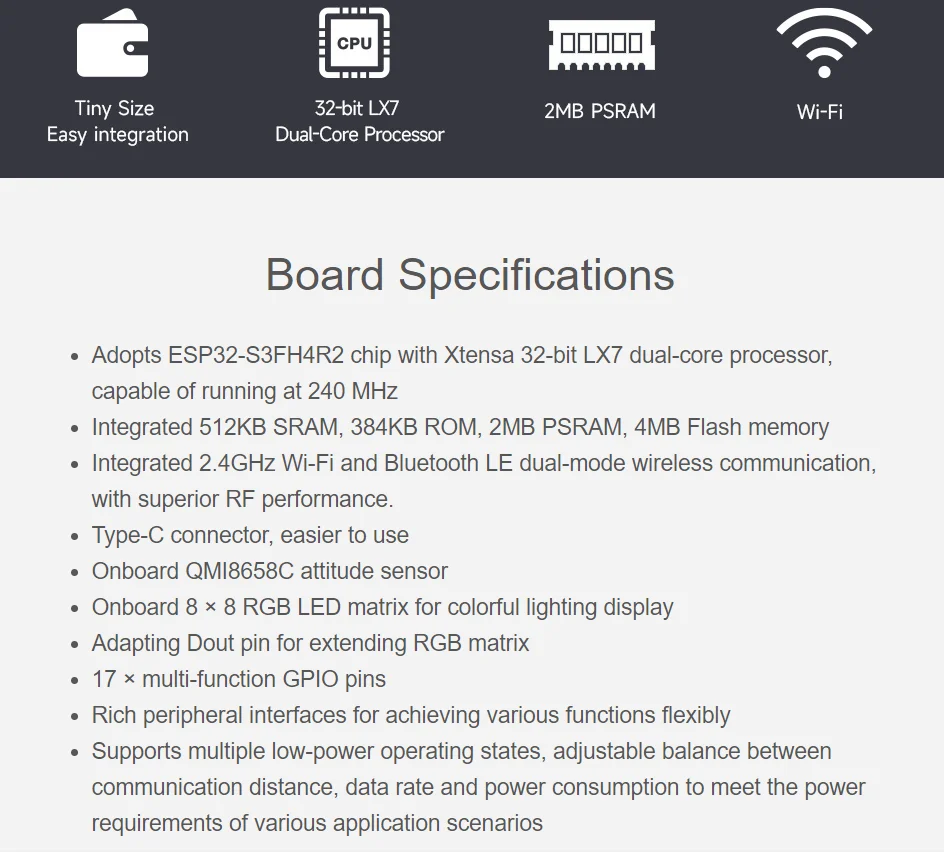

Features
Adopts ESP32-S3 chip, integrates high-performance Xtensa® 32-bit LX7 dual-core processor, running up to 24MHz.
Integrates 512KB SRAM, 384KB ROM, 16KB RTC SRAM, and 4MB Flash memory storage.
Integrates low-power Bluetooth BLE wireless communication, 2.4GHZ WiFi, and superior RF performance.
Type-C connector, easier to use.
Adapting multiple peripheral interfaces, onboard 8*8 beads matrix of 64x RGB beads, for displaying cool RGB LED effects or simple images.
Support multiple low-power working effects, balancing the communication distance, data rate, and power consumption, meeting various application requirements.

Produktdetails in Bildern

Produkteigenschaften

Markenname

W

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul
