Schnellverschluss-Kupplung ISO7241-A NPT ISO A Hydraulische Kupplung 1/4" 3/8" 1/2" 3/4" NPT1 Schnellwechsel-Schnittstelle

Produktbeschreibung

Features
Brand new and high quality
Made of high quality materials
Suitable for ISO series "A" quick release couplings, complete with male and female threads, available in NPT thread sizes.
The quick release ISO A coupling is used for quick connection and disconnection of hydraulic lines. During coupling in the or low pressure range, valves that release or block will automatically start.
The quick release coupling consists of a coupling plug and a coupling socket, which are connected by pushing the sleeve. This ensures a flush connection between the two coupling halves.
Purpose: For agricultural and forestry equipment, such as tractors, trailers, harvesters; Construction equipment and multipurpose vehicles, such as excavators, skid loaders, and hydraulic tools; Mining rigs and industry. If there is pressure in 1 or more hydraulic lines, use suitable under pressure connectors and mining rigs.

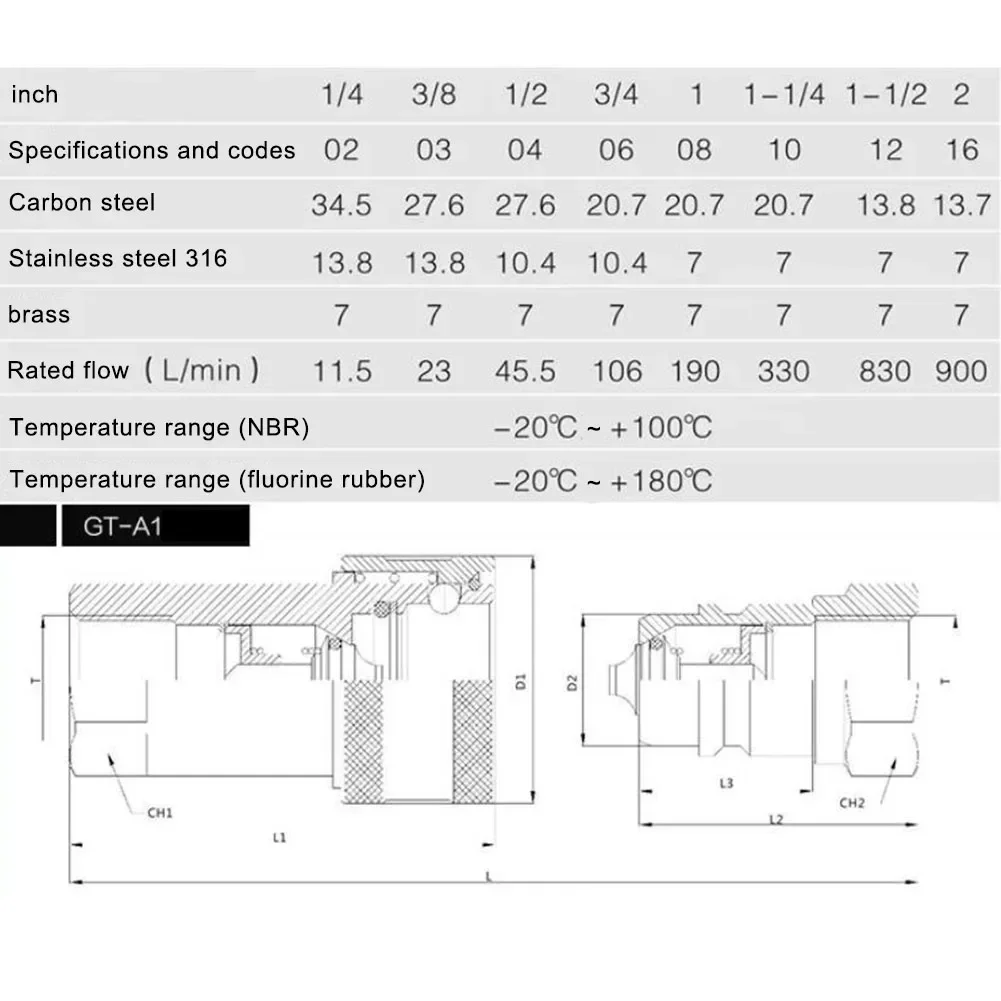

Specifications
Installation form: quick change interface
Type: Through
Material: carbon steel
Model: ISO7241-A
Scope of application: agricultural machinery and industrial equipment
Nozzle diameter: 10 (mm)
Pressure resistance: 40 (MPa)
Thread type: internal thread
Specification: NPT1/4, NPT3/8, NPT1/2, NPT3/4, NPT1 (optional)
Temperature range: - 30 ° C to+120 ° C
Operating pressure: 270 – 350 bar (depending on size)
Quantity: 1 set

Produktdetails in Bildern

Produkteigenschaften

Markenname

NoEnName_Null

Hochbetriebenes Chemikalienunternehmen

Keine

Typ

Energien-Werkzeug-Teile

Material

Legierter Stahl

Ursprung

CN (Herkunft)

Modellnummer

NPT-1

ist kundenspezifisch

Nein

Benutzen

Kommerzielle Herstellung

Choice

yes

semi_Choice

yes
