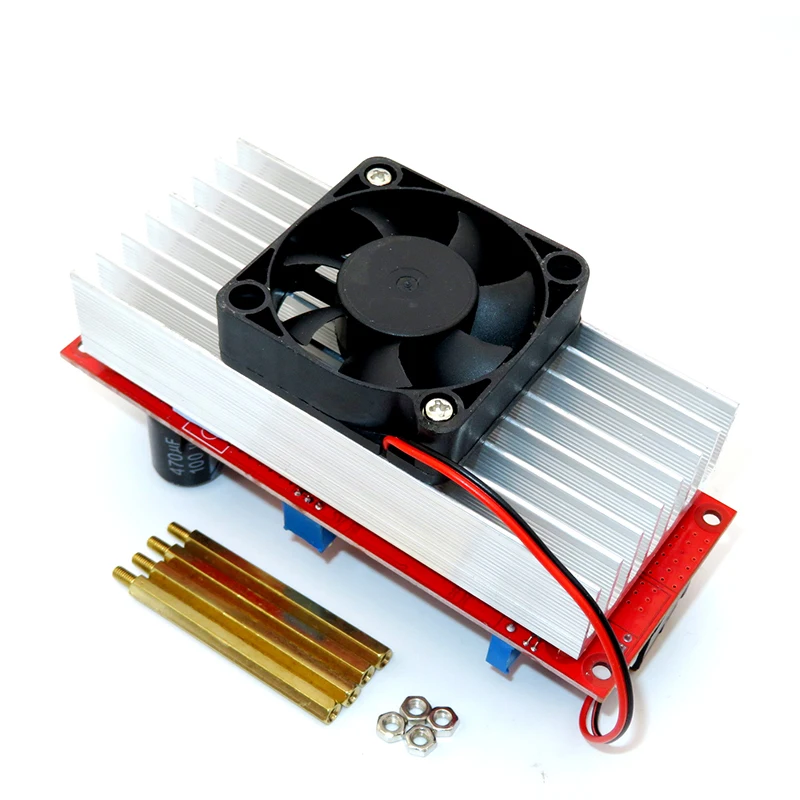

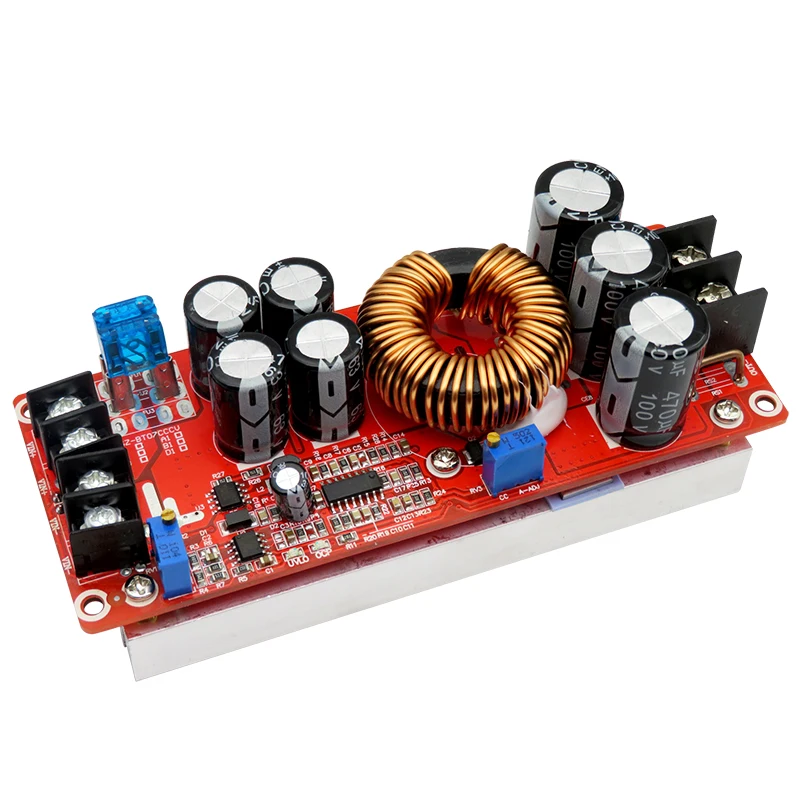

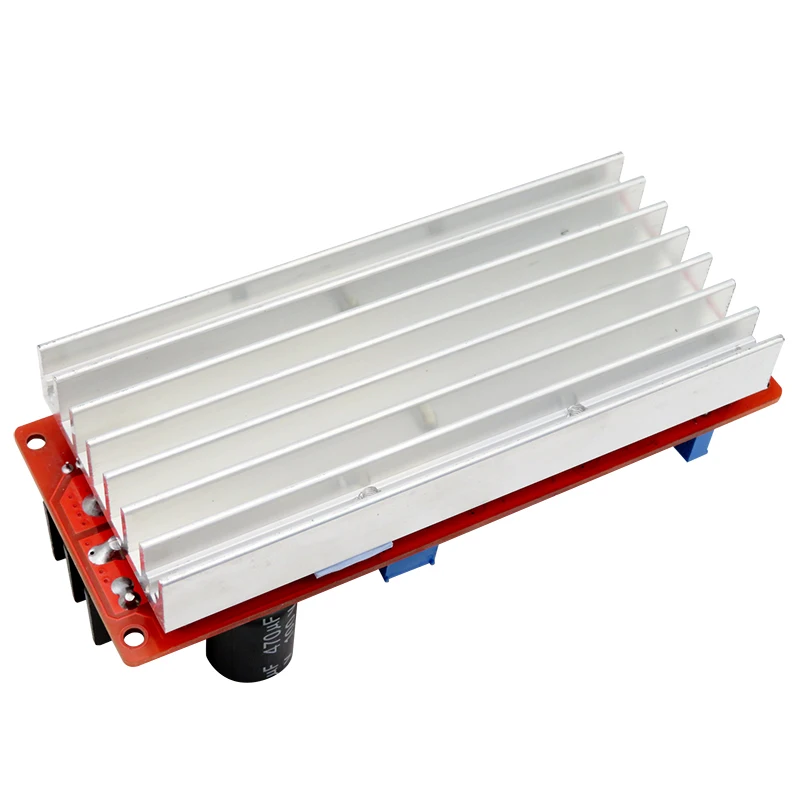

DC-DC 1500 W 30 A Spannungs-Aufwärtswandler Boost CC CV-Stromversorgungsmodul Konstantstrommodul mit Lüfter 10–60 V bis 12–90 V

Produktbeschreibung

1200W 20A
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5-20A
Output Power
Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W
Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel
The current per module can be adjusted to 15A.
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws

Produktdetails in Bildern

Produkteigenschaften

Markenname

REALPOY

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Step Up Module

Verlustleistung

Step Up Module

ist kundenspezifisch

Ja

Betriebstemperatur

Step Up Module

Anwendung

Step Up Module

Paket

Step Up Module
