integrierte Schaltung

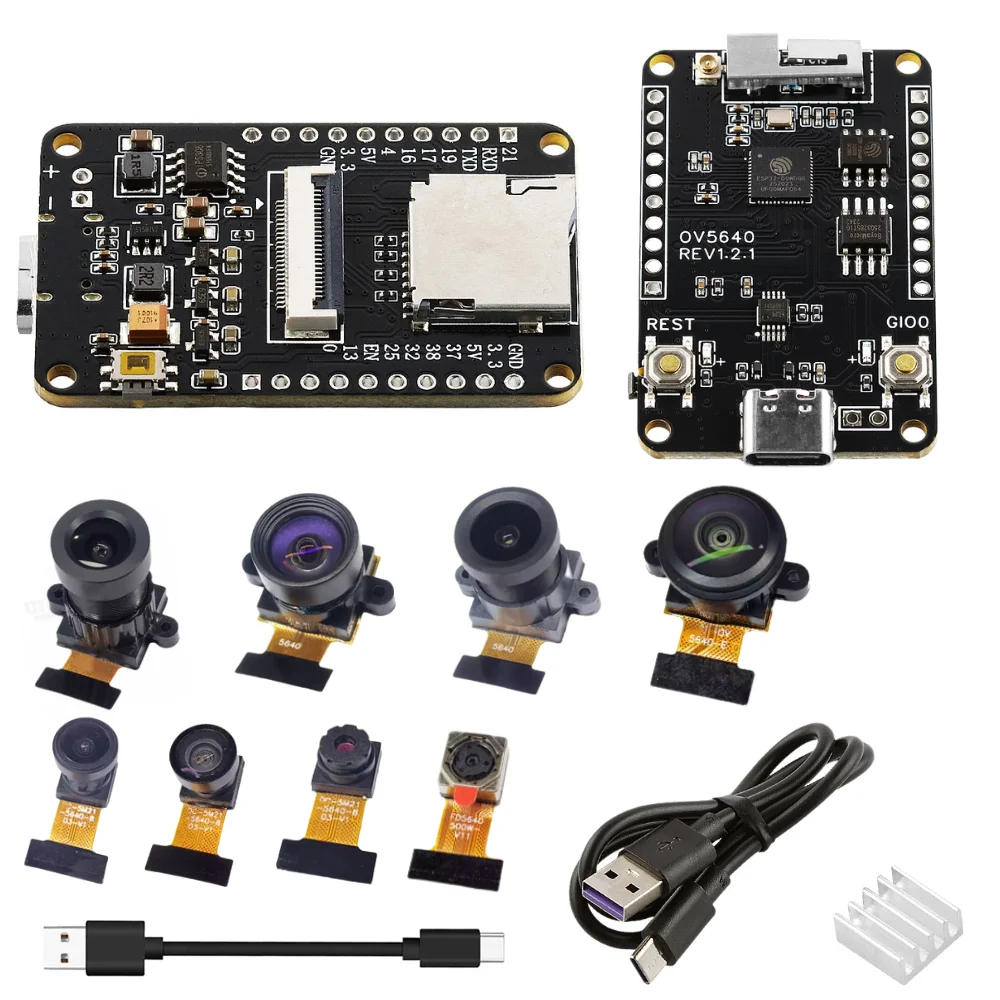

OV5640 ESP32 CAM Kameramodul-Kit 2,4 GHz WiFi und Bluetooth Entwicklungsboard Typ C 8 MB PSRAM HD 5 MP Autofokus 66 120 160 Grad

38,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 7–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

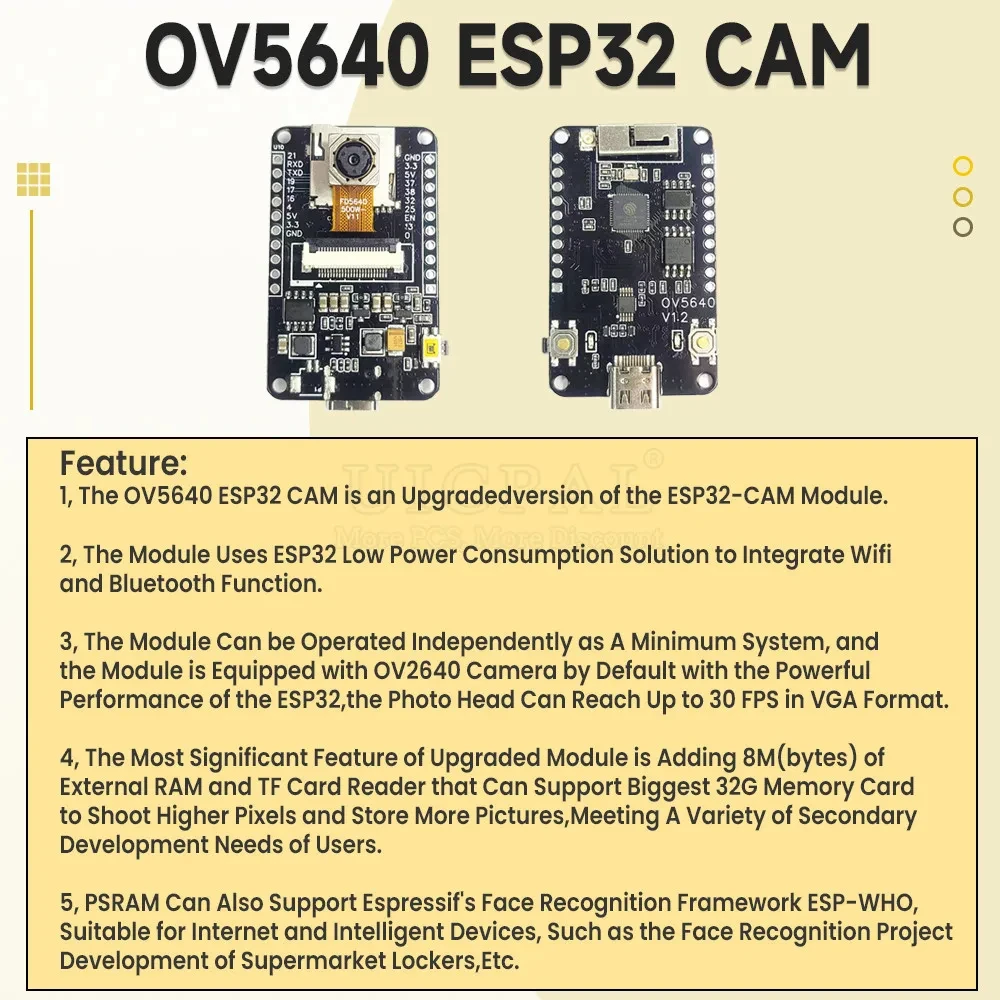

OV5640 ESP32 CAM Camera Module Kit 2.4 GHz WiFi and Bluetooth Develop Board Type C 8MB PSRAM HD 5MP Auto Focus 66 120 160 Degree

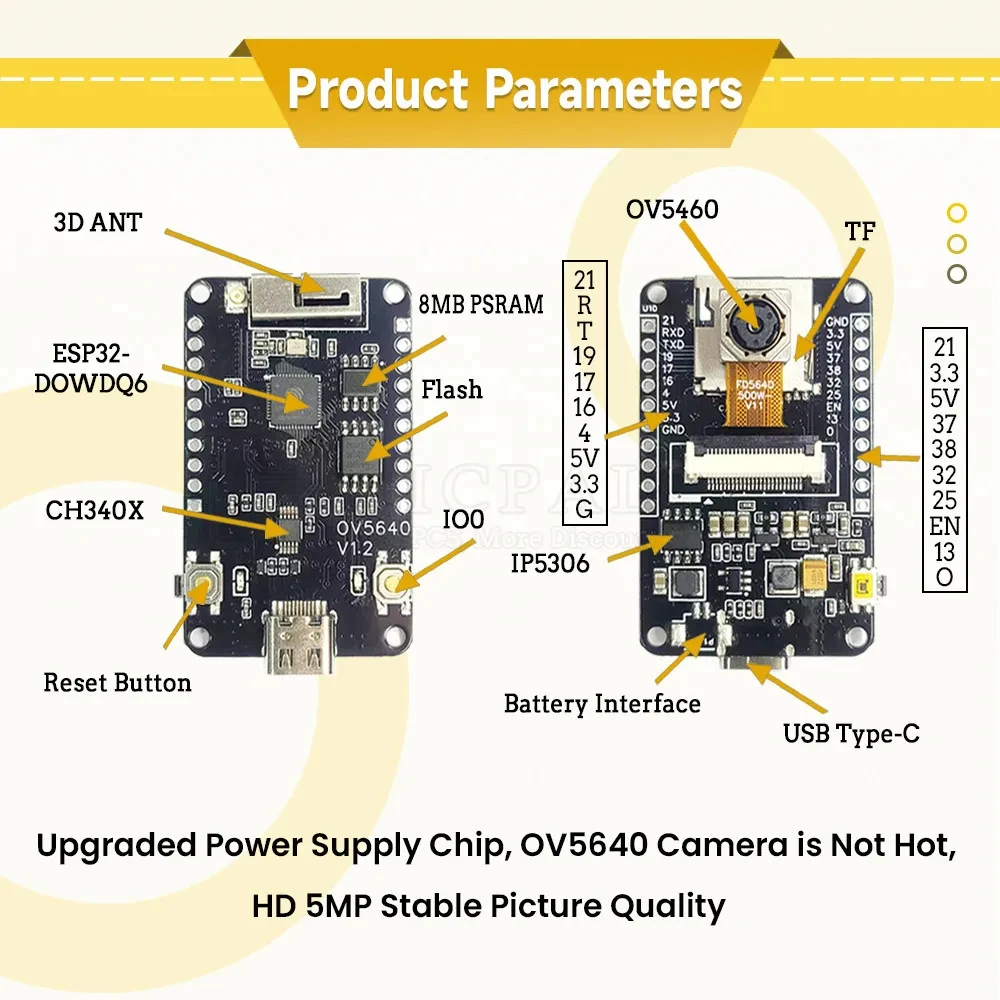

MCU: ESP32-D0WDQ6
The frequency can be adjusted between 80-240MHz, integrated 2.4 GHz Wi-Fi and Bluetooth dual-mode, 40 nanometer technology, internal integrated 520KB RAM and onboard 8MB PSRAM, using SPI protocol communication, speed up to 40M.
USB: CH552
Automatic download circuit, with E8051 core compatible with MCS51 instruction set, the average instruction speed is 8-15 times faster than standard MCS51, ESP32-CAM module uses CH552T to realize automatic download circuit, and it can be easily programmed and debugged on ESP32 with USB.
Note: If you need product instruction or code, please contact us.
Parameter Configuration
CPU Frequency:"240MHz(WiFi/BT)"
Core Debug Level:"None"
Erase All Flash Before Sketch Upload:"Disabled
Events Run On:"Core1"
Flash Frequency:"80MHz"
Flash Mode:"DIO"
Flash Size:"4MB(32Mb)"
JTAG Adapter:"Disabled"
Arduino Runs On:"Core 0"
Partition Scheme:"Huge APP(3MB No OTA/1MB SPIFFS)
PSRAM:"Enabled"
Upload Speed:"921600"
IO Parameter Configuration
