1-10PCS Raspberry Pi RP2040-Zero Mikrocontroller PICO Entwicklung Board RP2040 Dual-core Cortex M0 + Prozessor 2MB Flash

Produktbeschreibung

1-10PCS Raspberry Pi RP2040-Zero Microcontroller PICO Development Board RP2040 Dual-core Cortex M0+ Processor 2MB Flash
Product selling point
1: Wide range of applications
2: Dual-core processor
3: Support configuration pin function, which can be developed and integrated easily and flexibly
4: Support low power sleep and hibernate modes
5: High operating frequency
Product Features

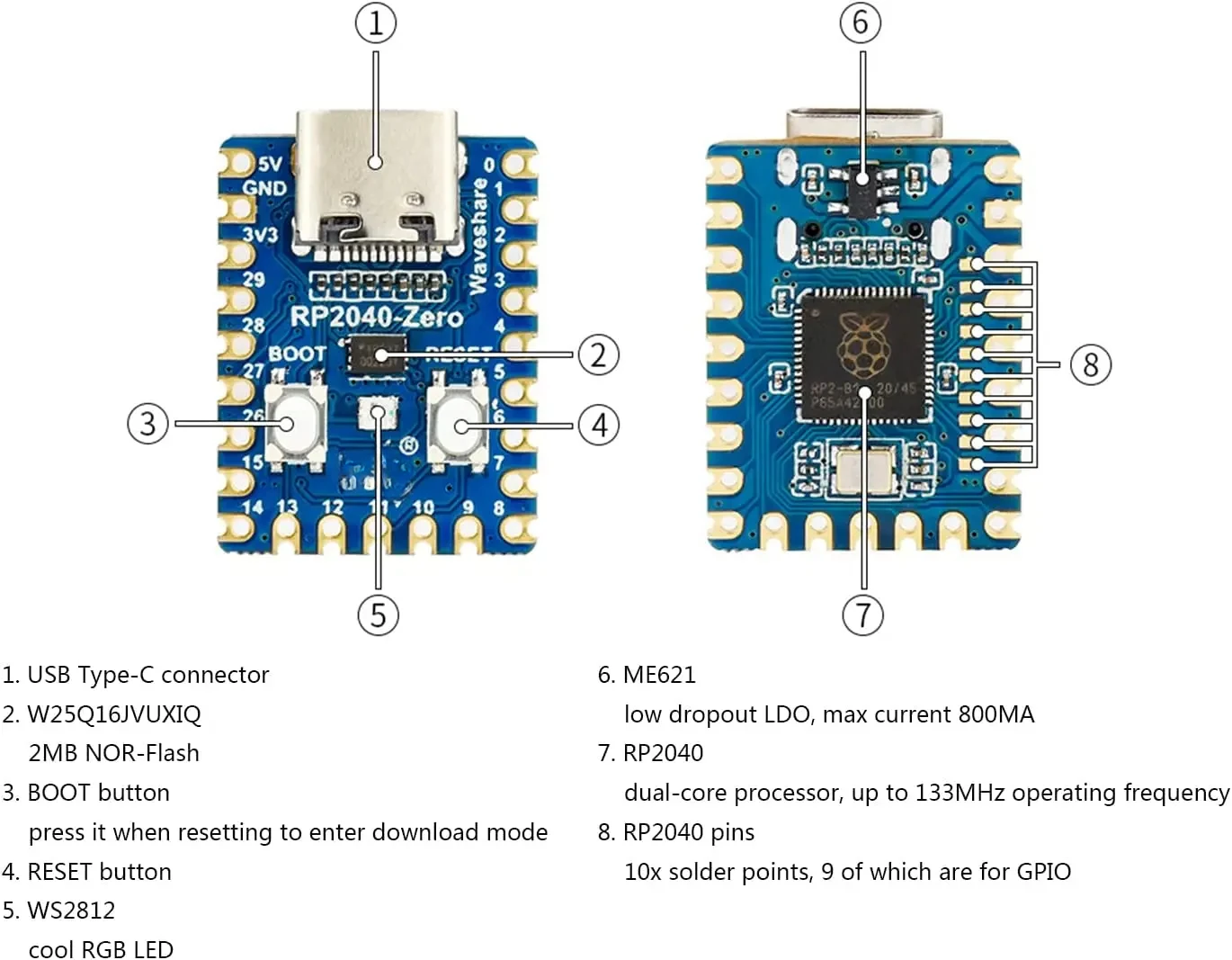

. Adopt RP2040 microcontroller chip
. Equipped with a dual-core ARM Cortex M0+ processor, the operating frequency is up to 133MHz flexible clock. Built-in 264KB SRAM and 2MB on-chip Flash

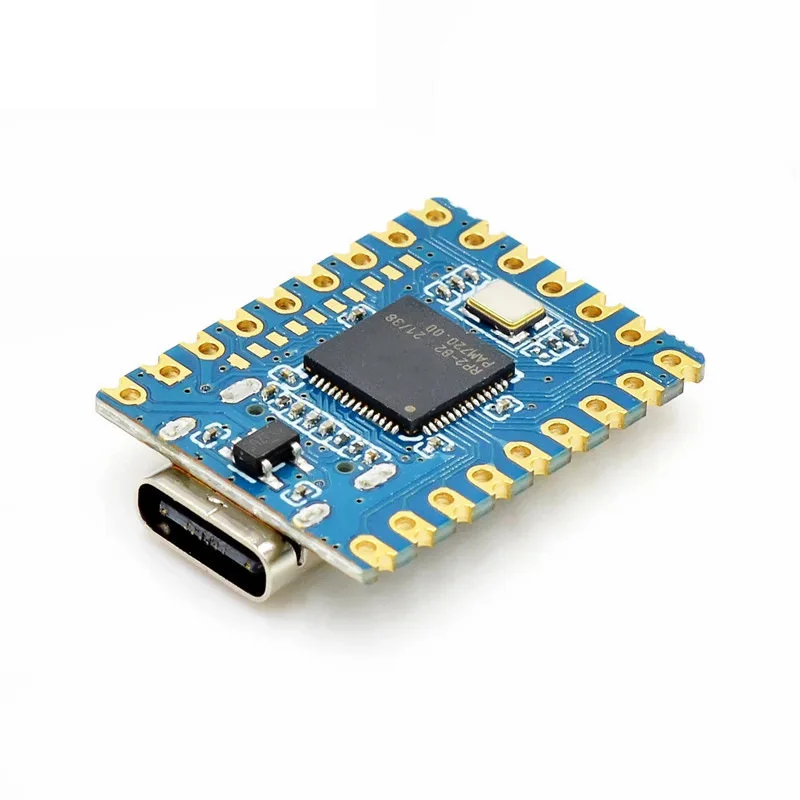

. The real stamp hole design can be directly welded and integrated into the bottom plate designed by the user.
USB1.1 host and device support
. Supports low power sleep and hibernate modes
. Drag-and-drop program download via USB recognition as mass storage
. 29 GPIO pins of RP2040 are led out (20 can be led out through pin headers, and the rest can only be led out by soldering)
. 2 SPIs, 2 12Cs, 2 UARTs, 4 12-bit ADCs, 16 controllable PWM channels.
Accurate on-chip clocks and timers
. Temperature Sensor
. On-chip accelerated floating-point library
. 8 programmable I/O (PIO) state machines for custom peripheral support

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Switch And Sensor For Arduino STM

ist kundenspezifisch

Ja

Anwendung

Computer

Paket

SMD

Choice

yes

semi_Choice

yes
