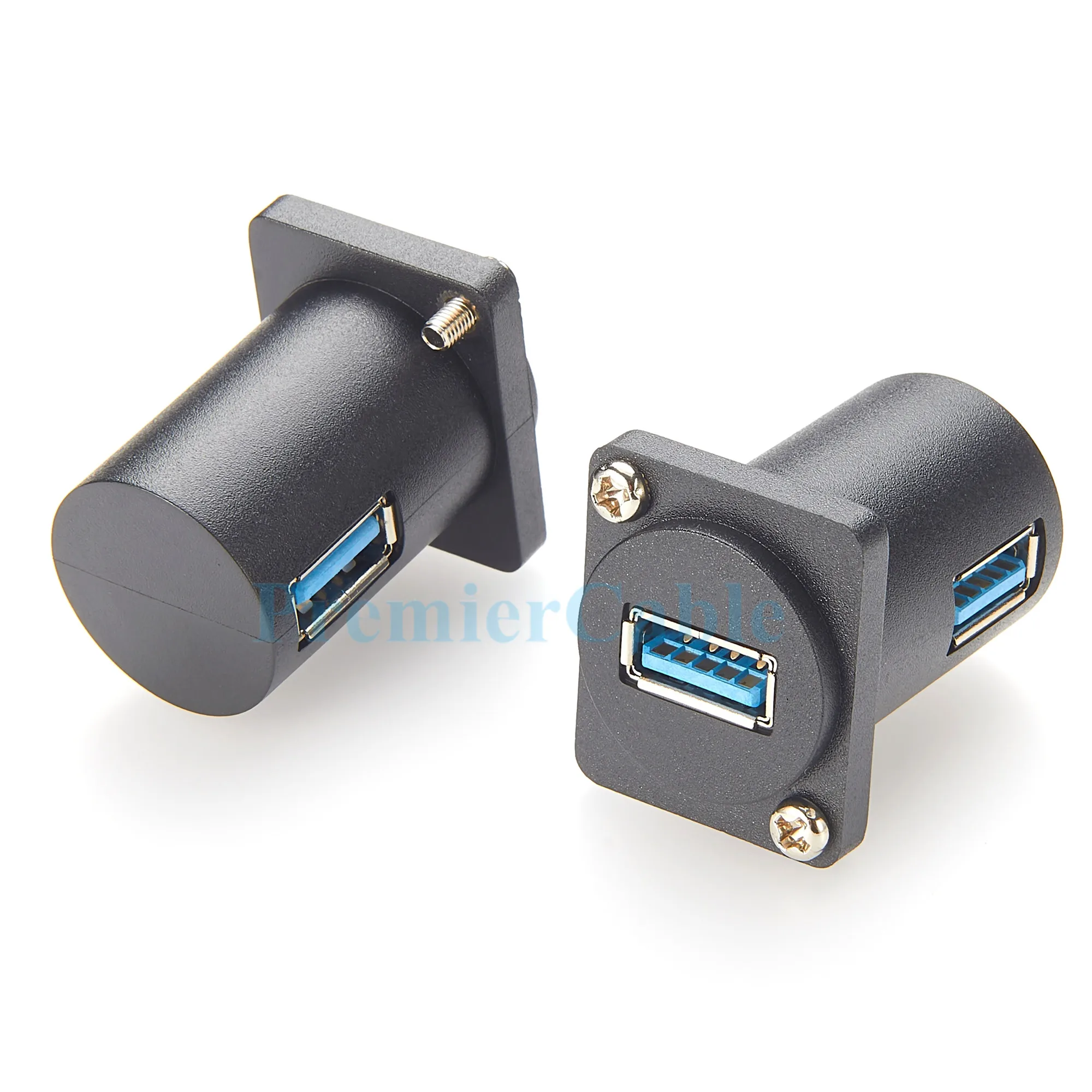

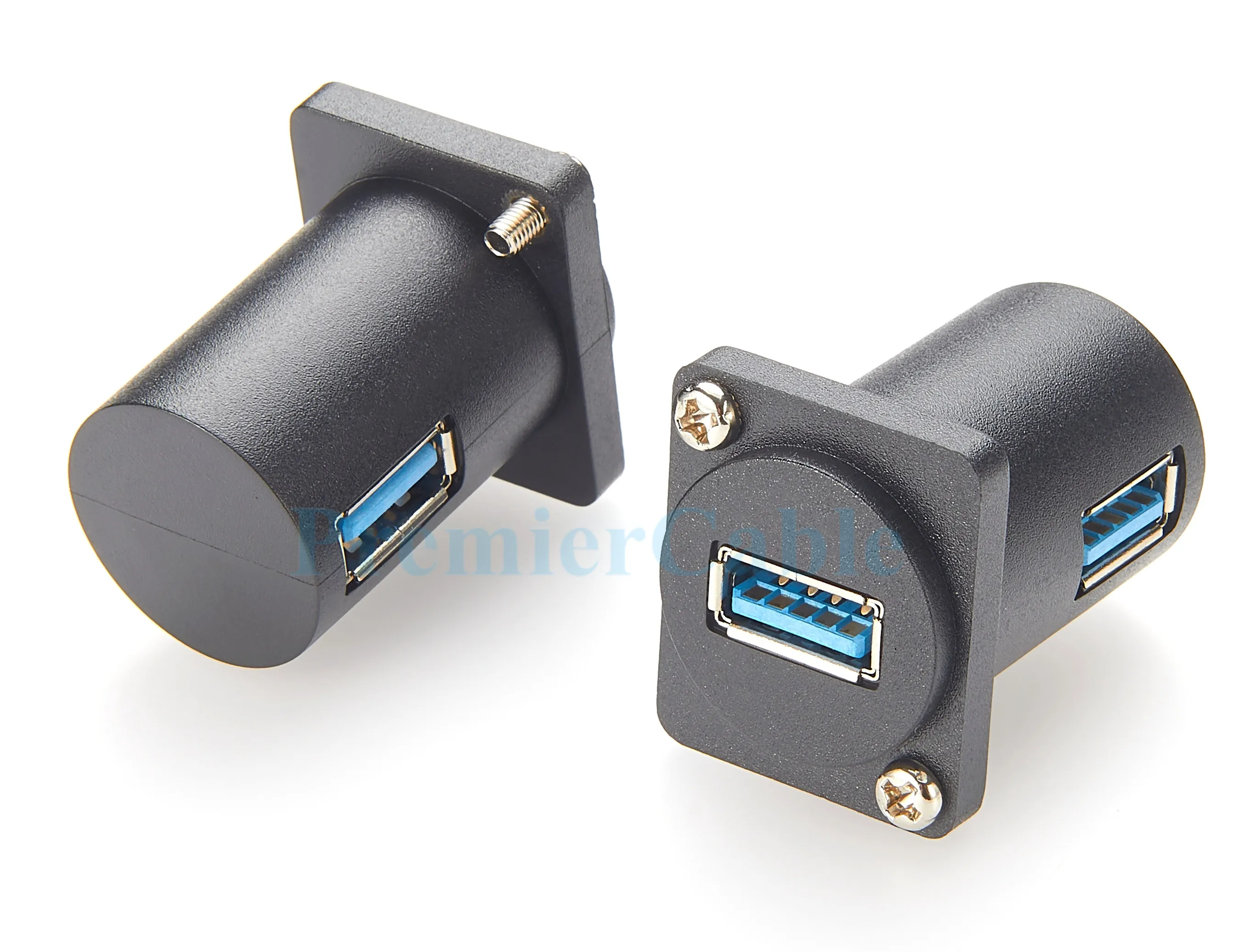

USB 3.0-Adapter für Panelmontage, abgewinkelter Ausgang, USB 3.0 A-Buchse, D-Typ-Stecker für Panelmontage, Durchgang durch lötfreie Schottkupplung

Produktbeschreibung

USB 3.0 female to female extenders can be connected to USB connectors as well as used as network extension cables. Supports USB hot-swapping, specifically solving the conversion and connection between USB ports. Widely used for data transfer and charging connection for home and office, automation, medical, smart home and other devices.
D Shaped Housing is universally compatible with standard hole spacing on D Series Panels and Wall Plates.
Plug And Play：With data transfer rate up to 5 Gbps, this USB 3.0 adapter is 10x faster than USB 2.0 (480 Mbps), ensures fast charging&data syncing. It is also backward compatible with USB 2.0, 1.1, 1.0 standard devices.
High Quality：The housing of this usb connector is made of PVC for durability; the internal contact pins are made of copper alloy (gold plated) to provide a more stable network connection.
Widely Application：Connects equipment with USB ports like a PC, Mac, desktop, laptop, notebook, media player, USB external hard drive, AV receiver or other equipment with USB ports with the cables concealed behind the wall via wall plates.
Technical：
Interface 1: USB 3.0 A Type Female
Interface 2: USB 3.0 A Type Female
Transfer rate:5Gbps
Mounting Type: Panel Mount
Panel cut-out (diameter): ca. 24mm
Housing material: High Qulity PVC
Contact Pin: Pure Copper(Gold-Plated)

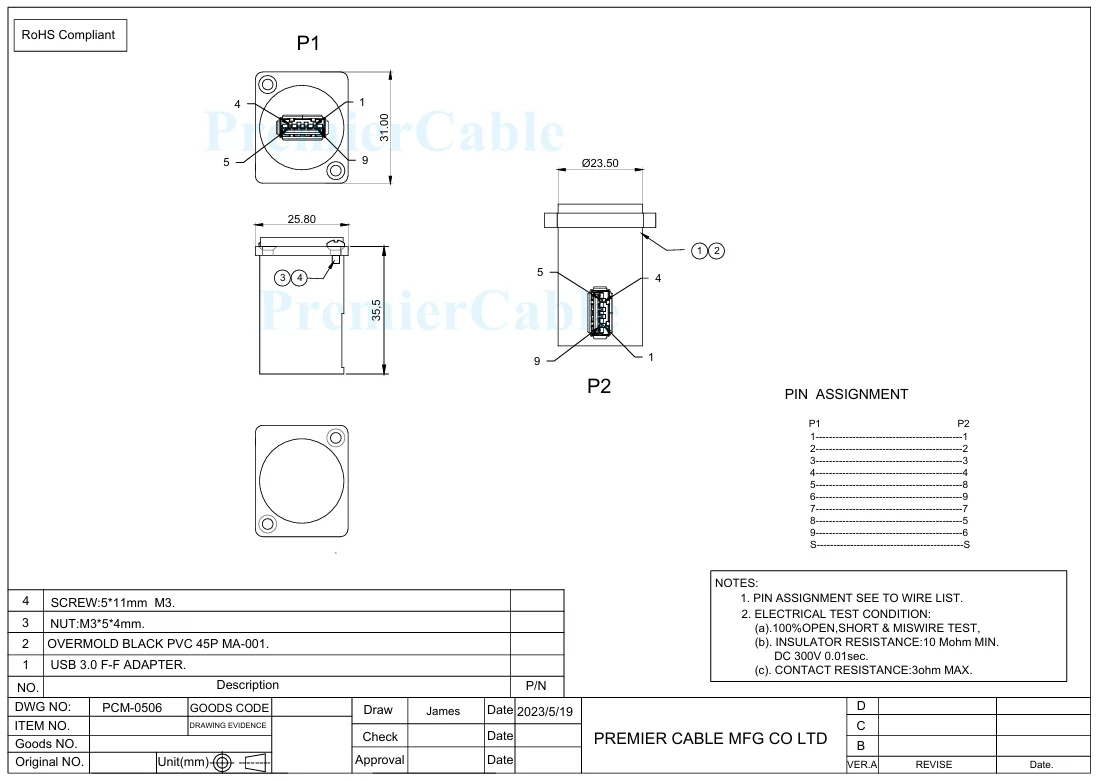

Product DisplayPlease refer to the drawings below for dimensions

Produktdetails in Bildern

Produkteigenschaften

Markenname

PremierCable

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Kapazität

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

RoHS-Konformität

Modellnummer

PCM-0506

Connector

USB 3.0 Feamel to Female

D-Type Module USB 3.0

USB 3.0 Short Cable Panel Socket
