Motorisierter Kugelhahnantrieb mit manuellem Schalter, 2-Draht-Steuerung, elektrischer Kugelhahnmotor, AC/DC 12 V, 24 V, 110 V, 220 V

Produktbeschreibung

About this item

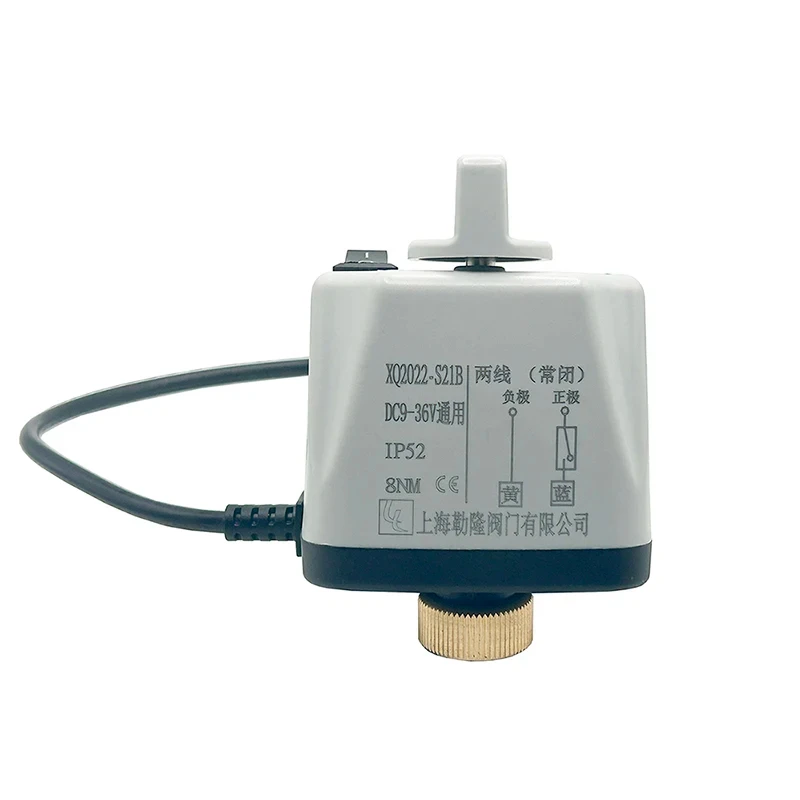

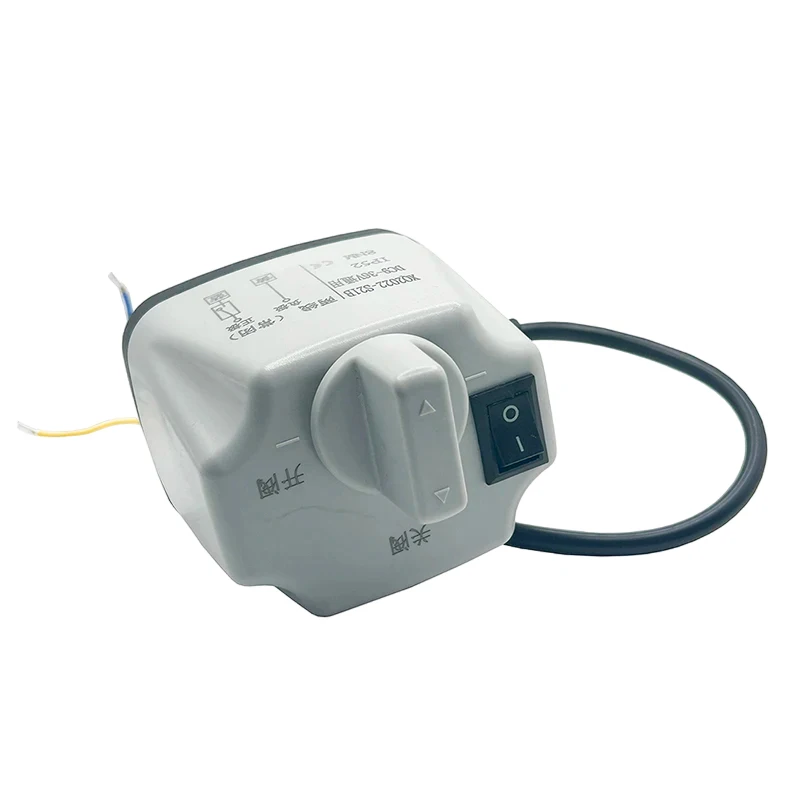

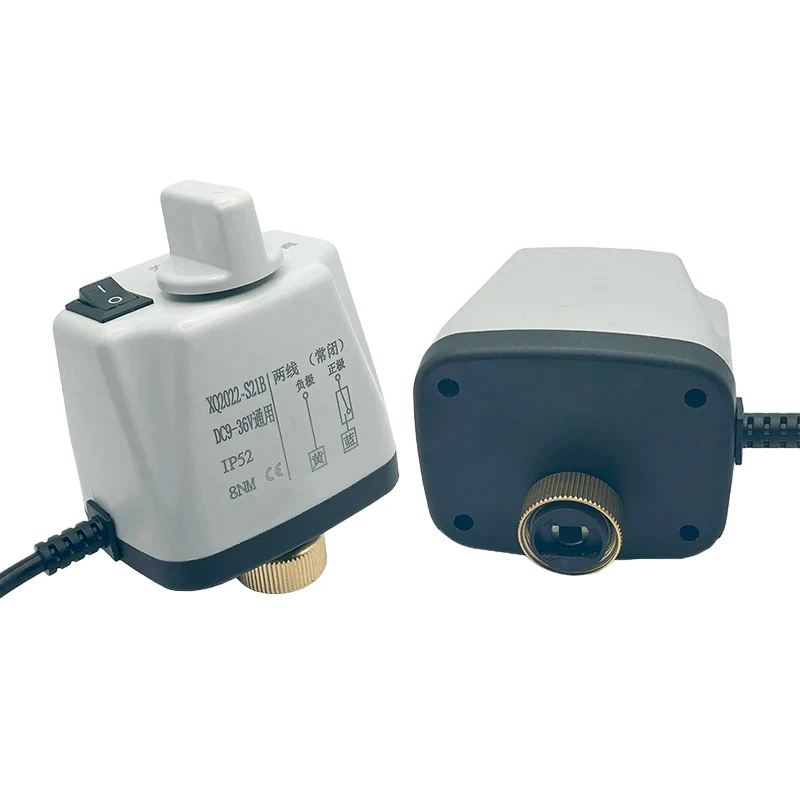

Motorized Ball Valve Actuator consists of valve body and driver. It has the advantages of simple structure, reliable operation, large straight-through flow, energy saving, and can replace solenoid valves. It can be widely used in heating, central air conditioning, solar water heating system, water treatment system cold and hot water switch control.

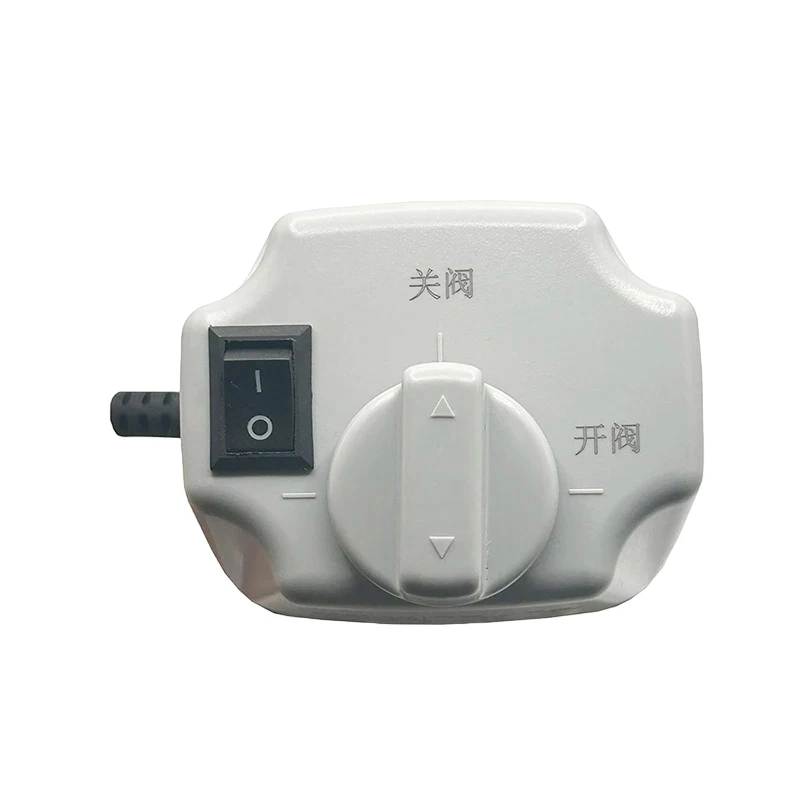

In addition, the Actuator comes with manual switch function, it can be adjusted manually if the valve is locked. Or when the power is cut off, the valve can be opened manually if necessary.
Product information
Medium: Cold water, Hot water or 50% Glycol solution
Wiring mode: 2-wire, power-off reset
Working form: Normally Close/Normally Open
Driving voltage: 220VAC, 110VAC, 24VDC, 12VDC
Power consumption: 6 W (only when the valve is opened and closed)
Action time: 5-15s
Nominal Pressure: 1.6 Mpa
Lead length: 30 CM
Notice
1. The power-on time is not lower than 1 minute, strictly follow the positive and negative wiring, and do not reverse.
2. "AC110-220V" marked on the motorized ball valve can be connected to 110V-220V voltage, "DC9V-36V" can be connected to 9V-36V voltage
3. The more you order, the more offers, please contact us
4. Package list: Actuator*1

Produktdetails in Bildern

Produkteigenschaften

Markenname

Acarps

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Struktur

Ball

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Standard oder Nichtstandard

Standard
