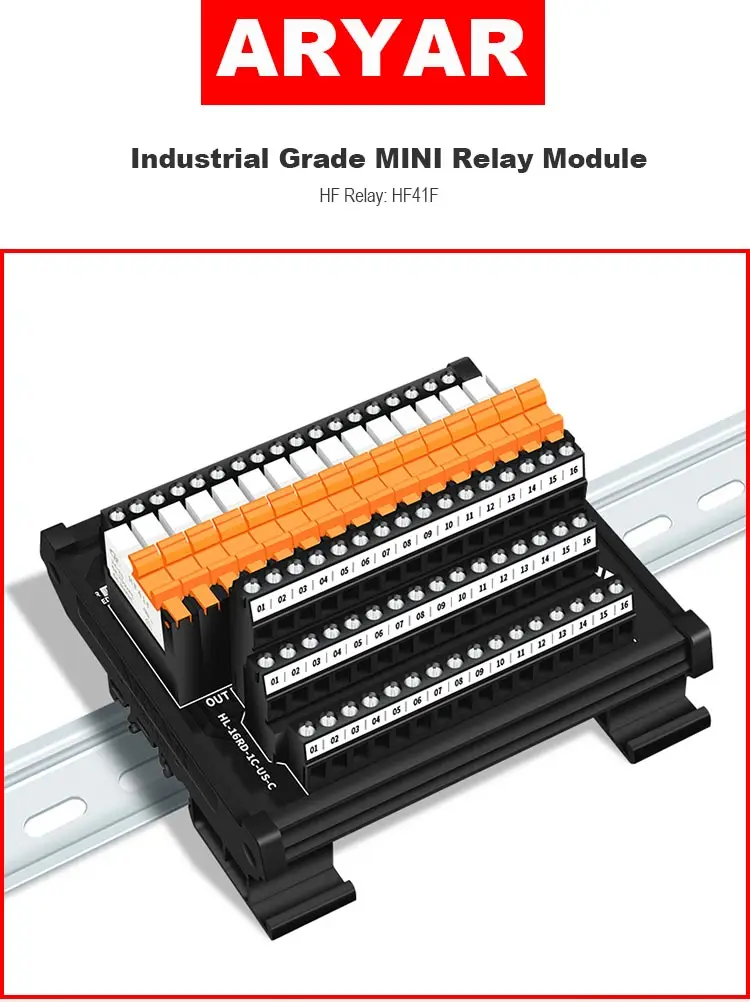

Schlanke DIN-Schienenmontage DC5V 12V 24V SPST 5A HF41F Relaismodul SPS-Treiberplatine Ausgangsverstärkerplatine

Produktbeschreibung

Control mode: Input compatible

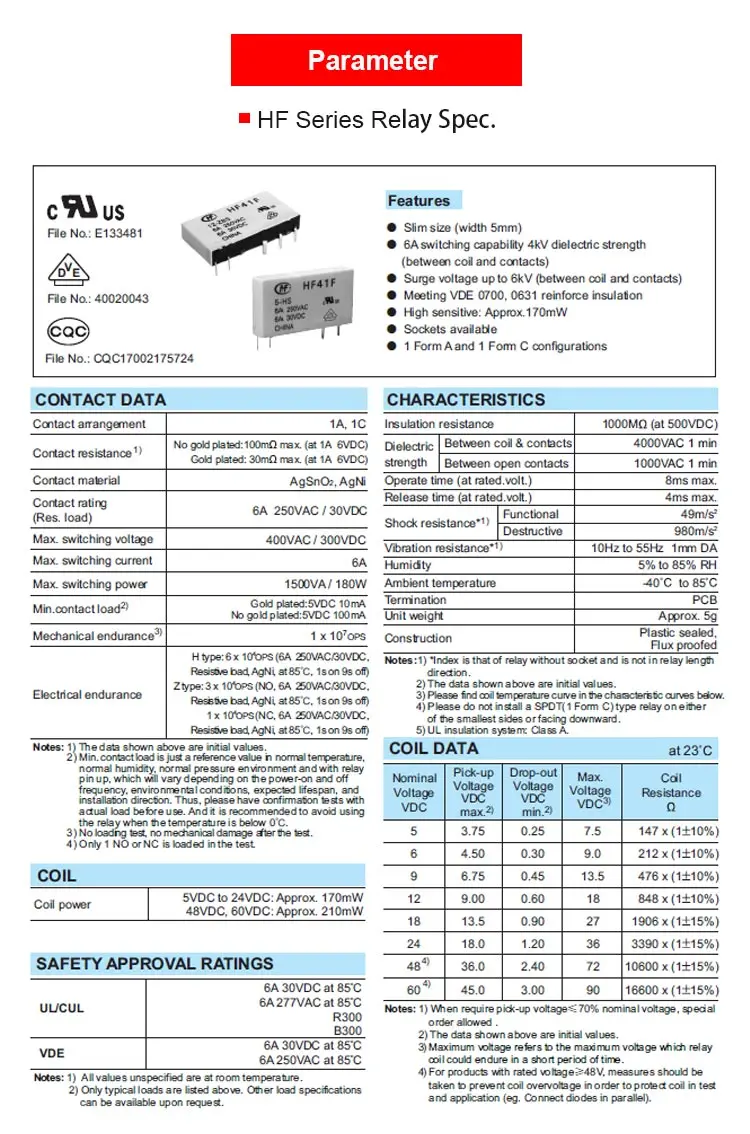

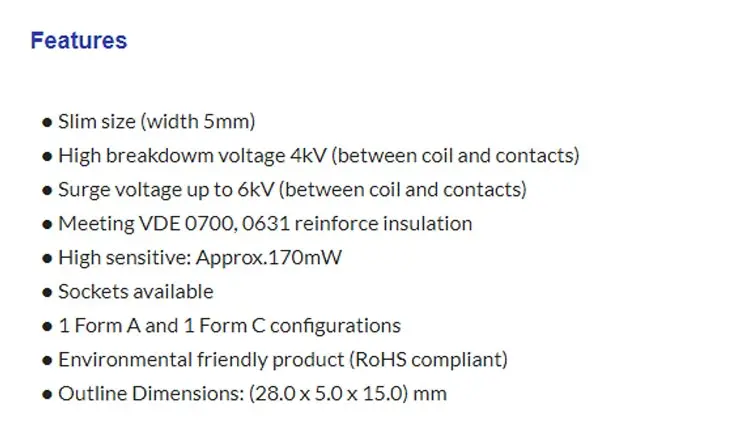

Relay: HF41F

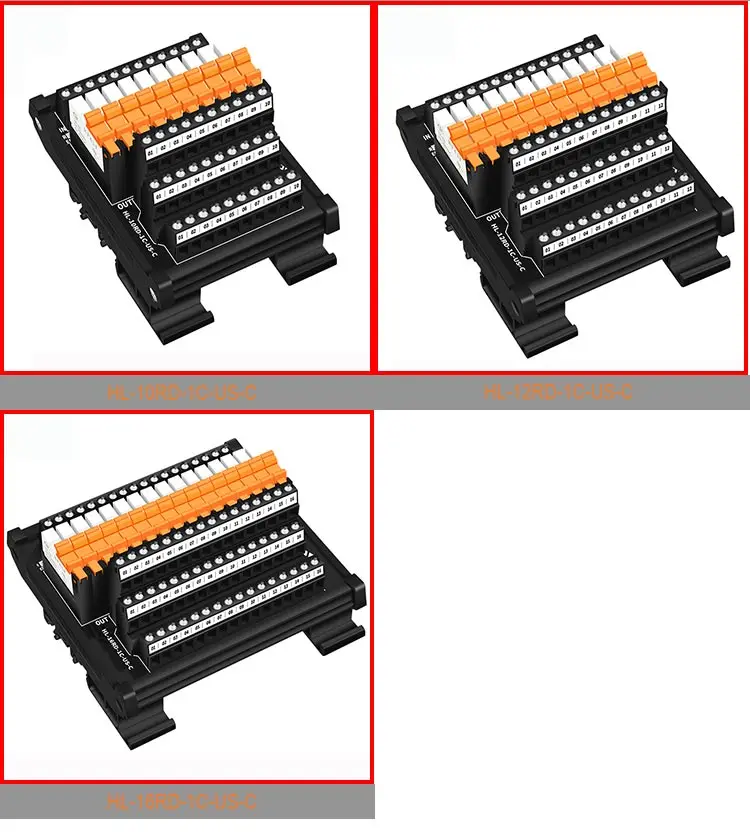

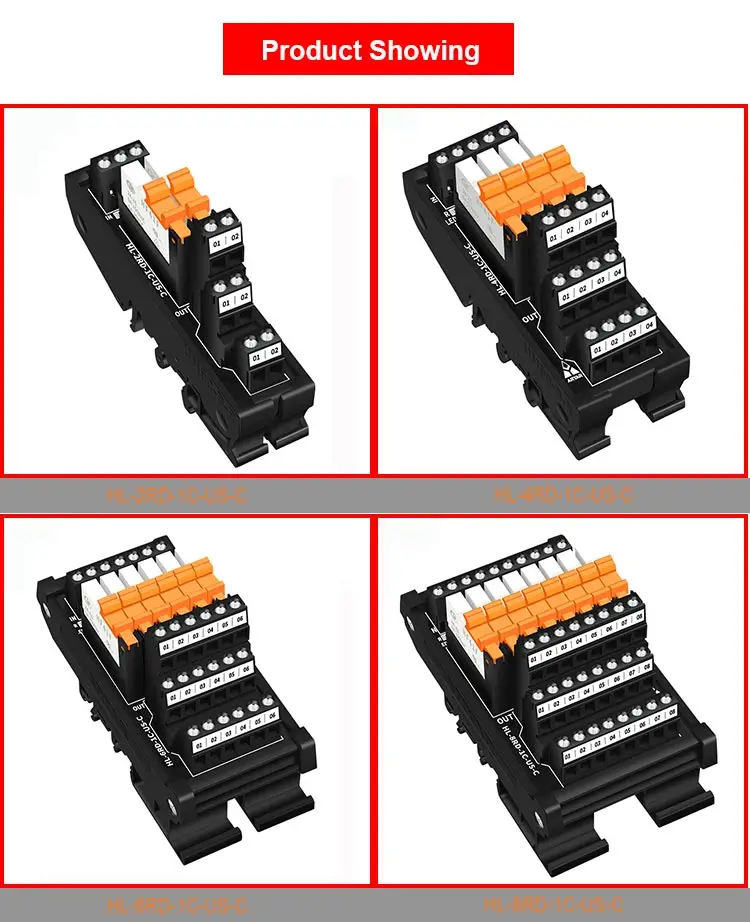

Relay/switch channel number: 2-16

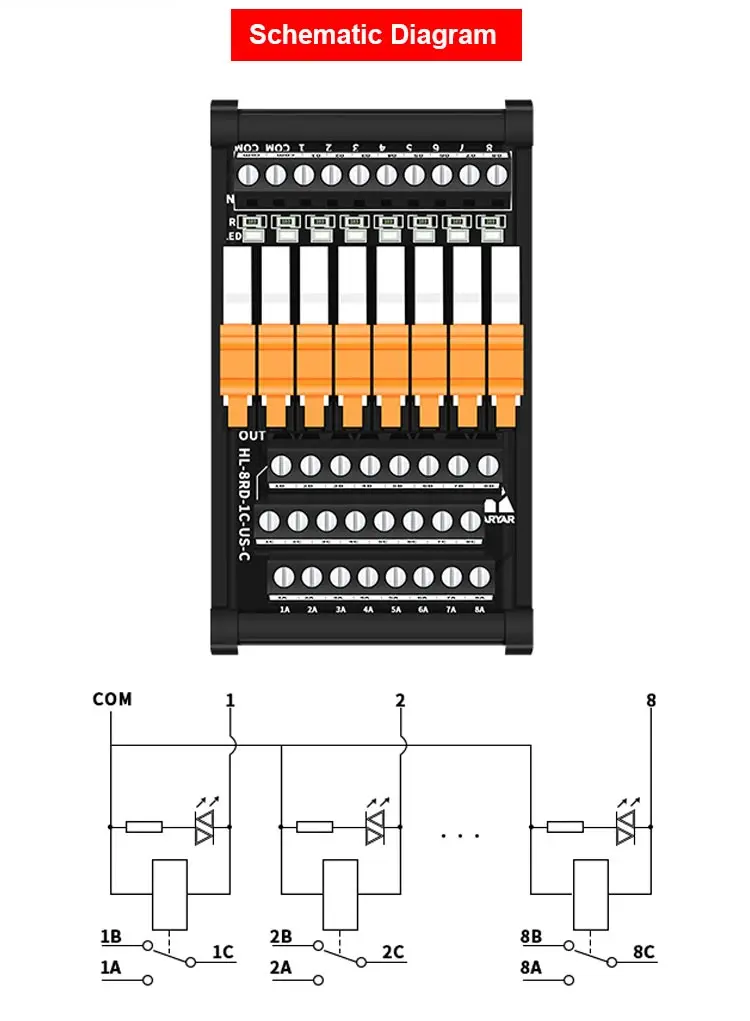

Relay switch type: SPST 1 Open and 1 Close
Each channel switching current upto 5A at 250VAC (or 30VDC)

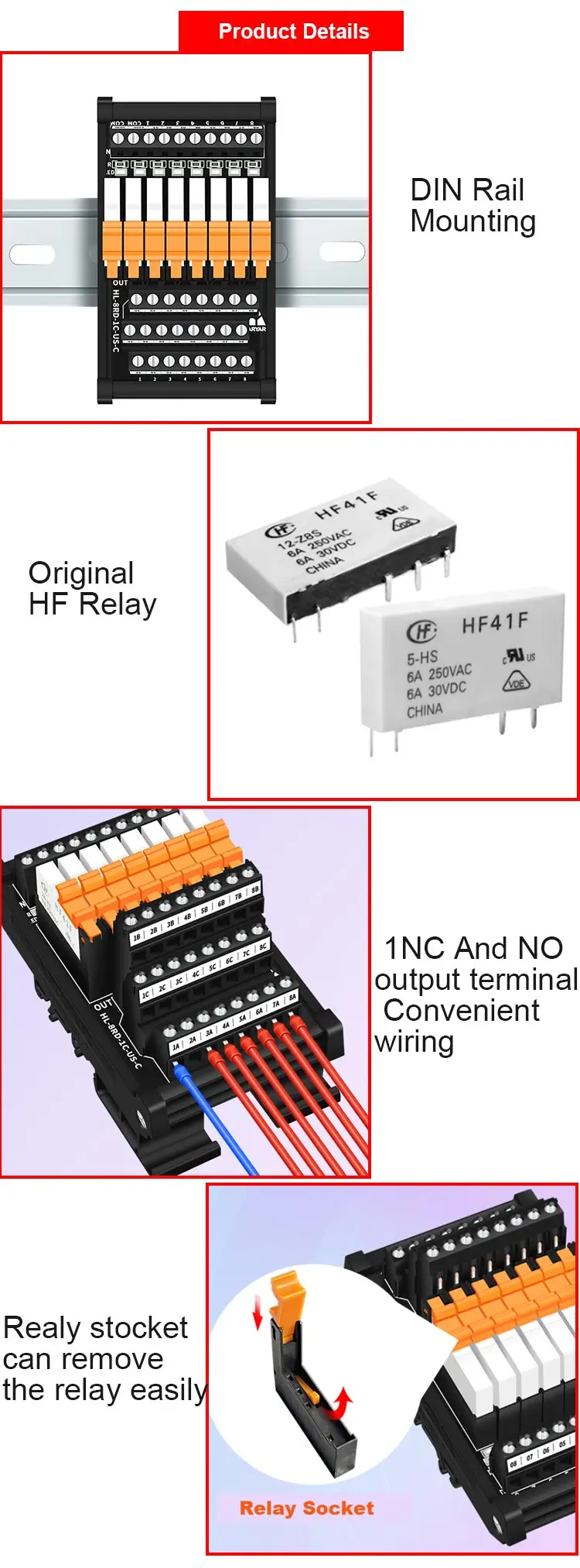

High quality fireproof materials DIN rail mount carrier, can support width 15mm/32mm/35mm rail.
Original HF41H relay and relay terminal socket.
With removal key, easy to replace pluggable relays.
Relay Coil Protection by means of a Freewheeling diode
LED indication to denote relay actuation.
100% new, never used.
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2) Payment must be made within 3 days of order.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
1. WORLDWIDE SHIPPING.(Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Theorie

Spannungsrelais

Spannung

5V,12V,24V

Modellnummer

HL-RD-1C-US-C

Stromquelle

Gleichstrom

ist kundenspezifisch

Ja

Kontaktbelastung

Geringer Stromverbrauch

Benutzen

Allgemeiner Zweck

Zertifizierung

NONE

Schutzfunktion

Versiegelt

Brand

ARYAR

Original Relay Type

HF41F

Application Type

PLC amplifier board

Rated Coil voltage

5VDC

Coil Ratings

5A 250VAC 5A 30VDC

Channel number

2-16 channels

Relay pole

1 pole

Choice

yes

semi_Choice

yes
