DC5-80V Netzteil ESP8266 WiFi Einkanal-Relaismodul ESP-12F Entwicklungsboard

Produktbeschreibung

1.VCC, GND:DC8-80V power supply 2.MICRO USB: DC5V USB power supply. Note: choose one of the three power supply modes of DC8-80V/DC5V USB/pin 5V 3.6X6MM button: ESP8266 reset button 4. Download the DART program 0: GND,RX,TX, and 5V of ESP8266 are connected to the external TTL respectively. Serial Port Module GND,TX,RX,5V, 100 need to connect with GND when downloading, and disconnect after downloading 100 and GND connection 5.GPIO pin outlet port 6. The relay output NC: Normally closed end, relay shorted with COM before snap-in, suspended after snap-in COM: Public end; NO: the relay is suspended before the pick-up and shorted with COM after the pick-up. 7. Power indicator L ED 8. Programmable L ED: use GPO16 control;. 9. Relay indication L ED: The suction fashionable is lit.

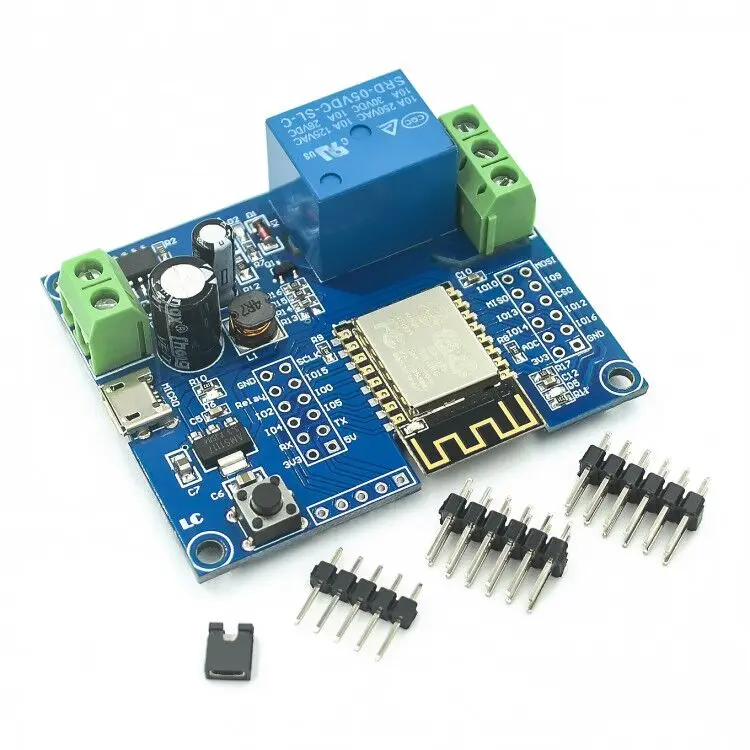

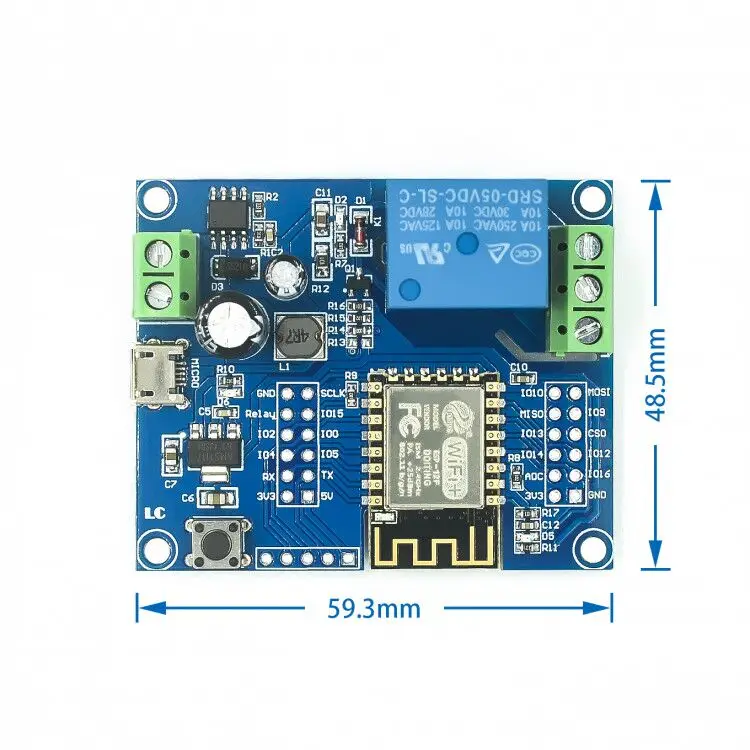

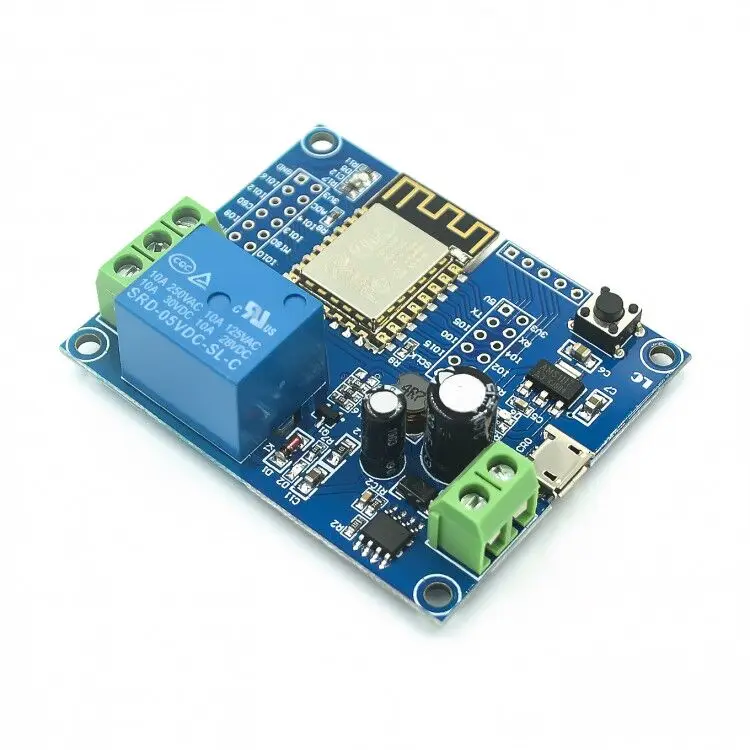

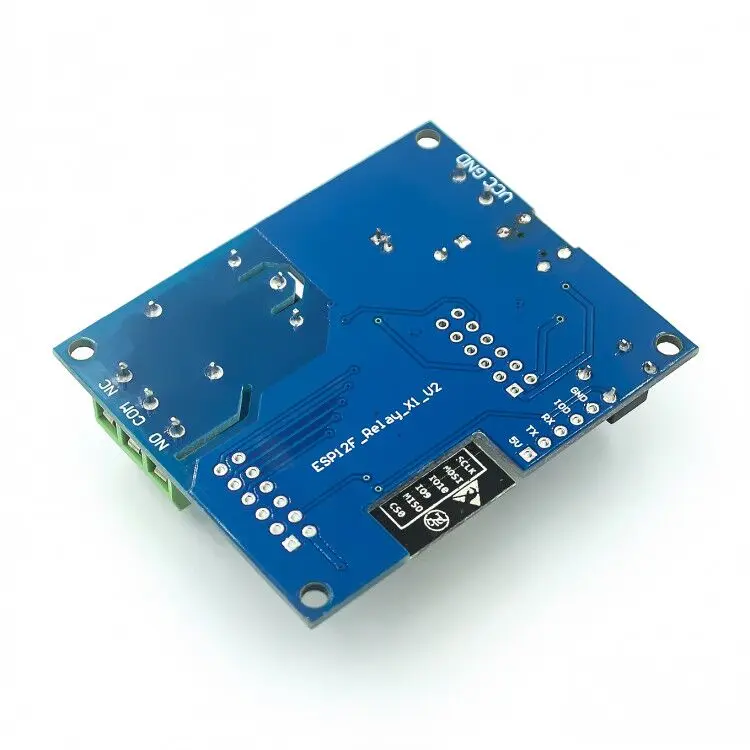

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1
