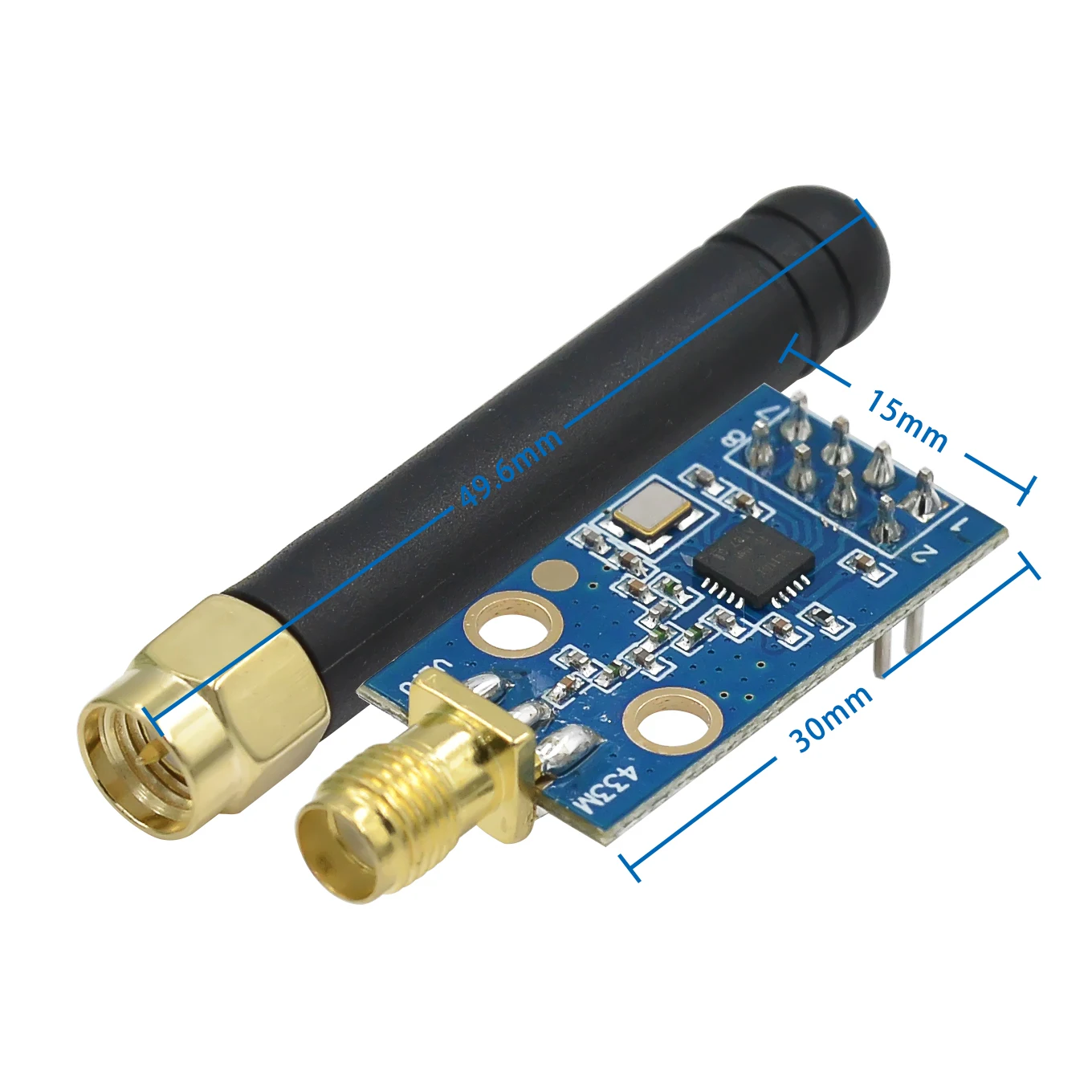

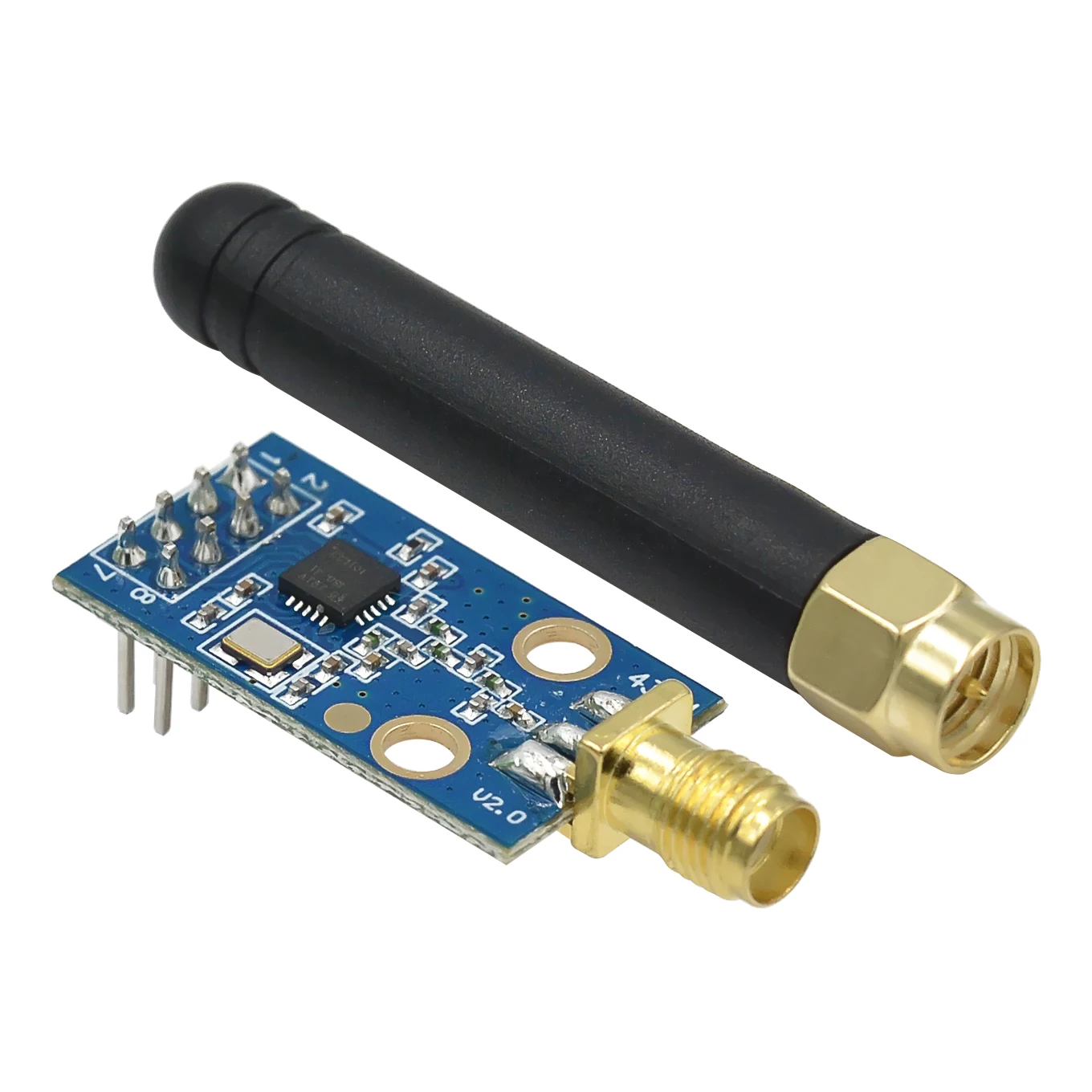

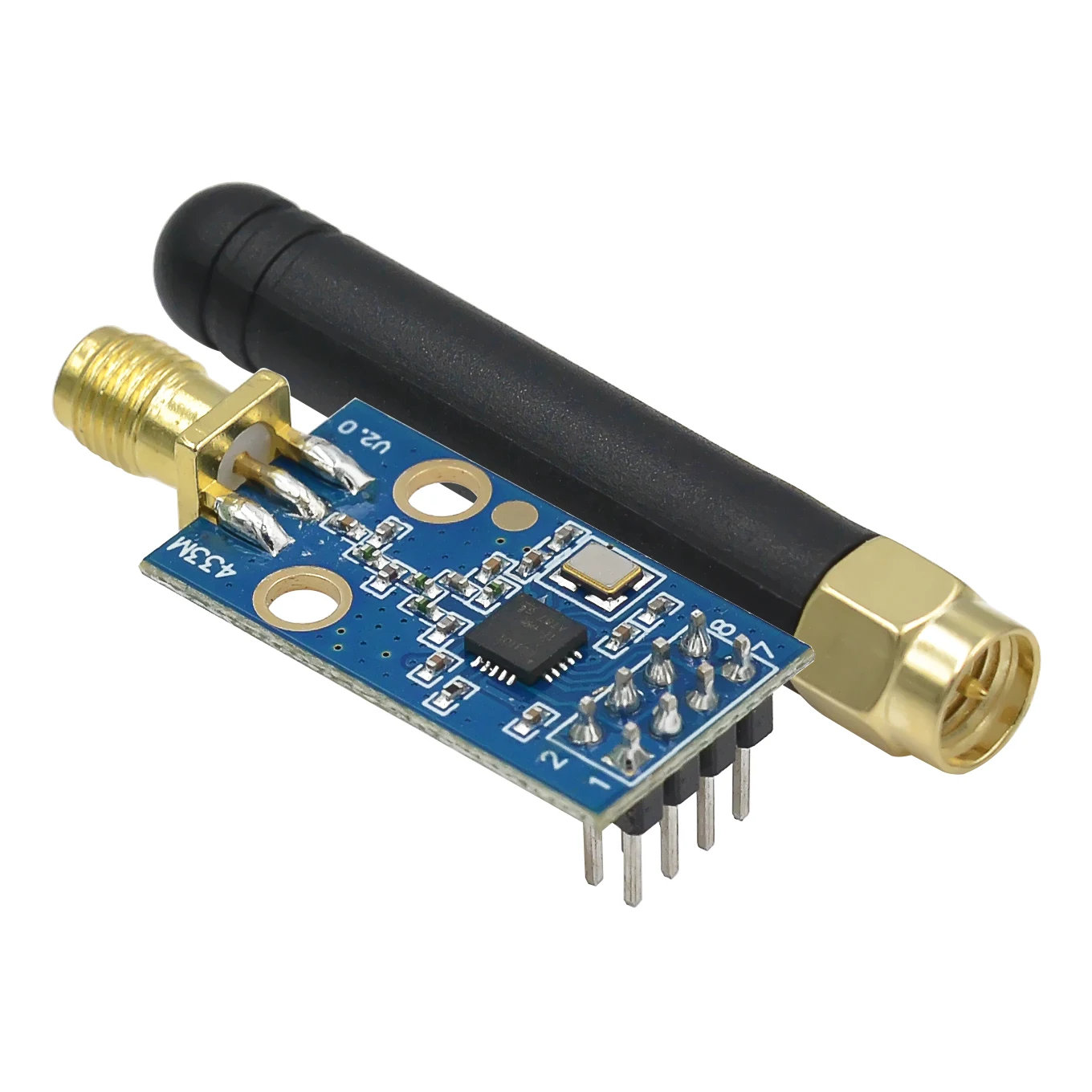

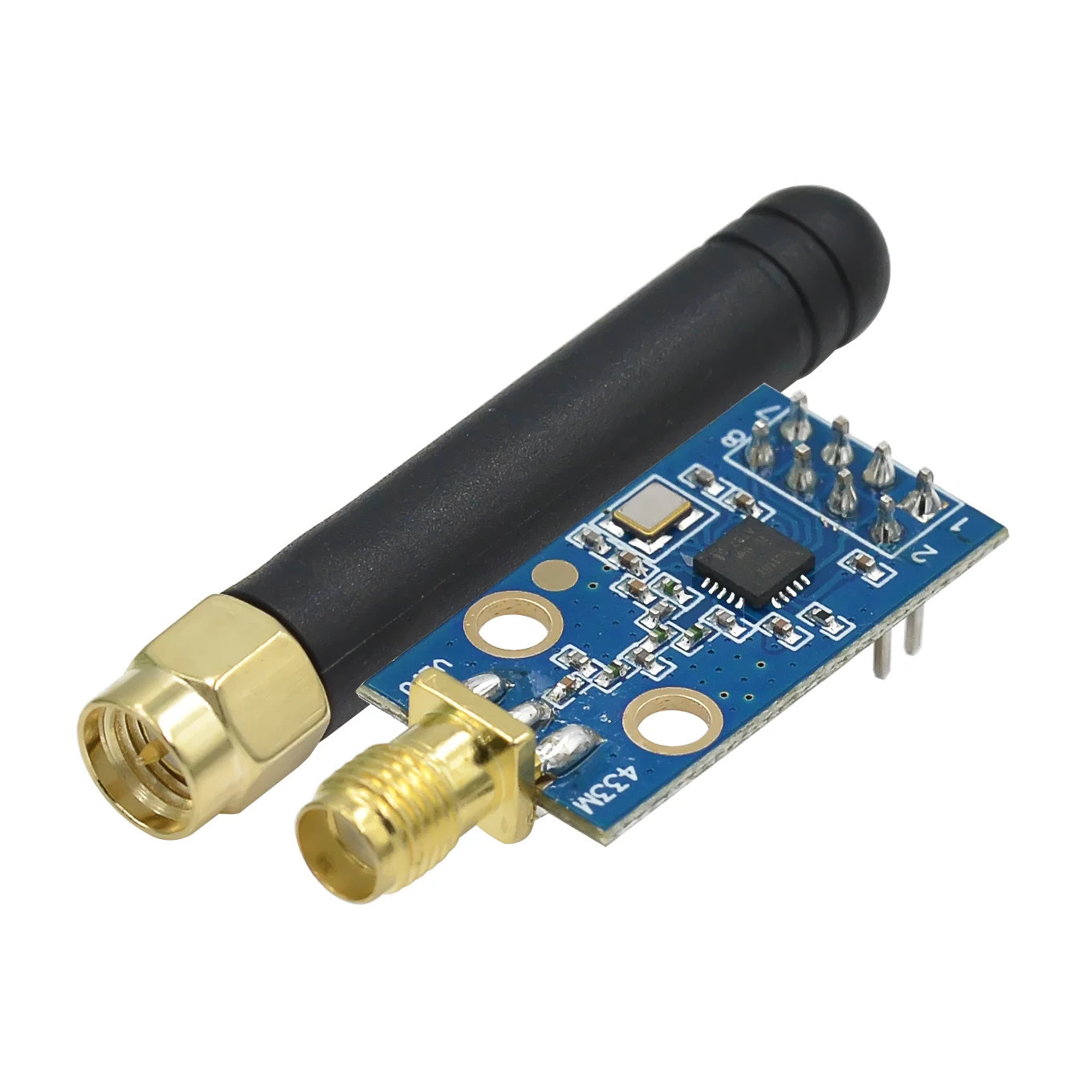

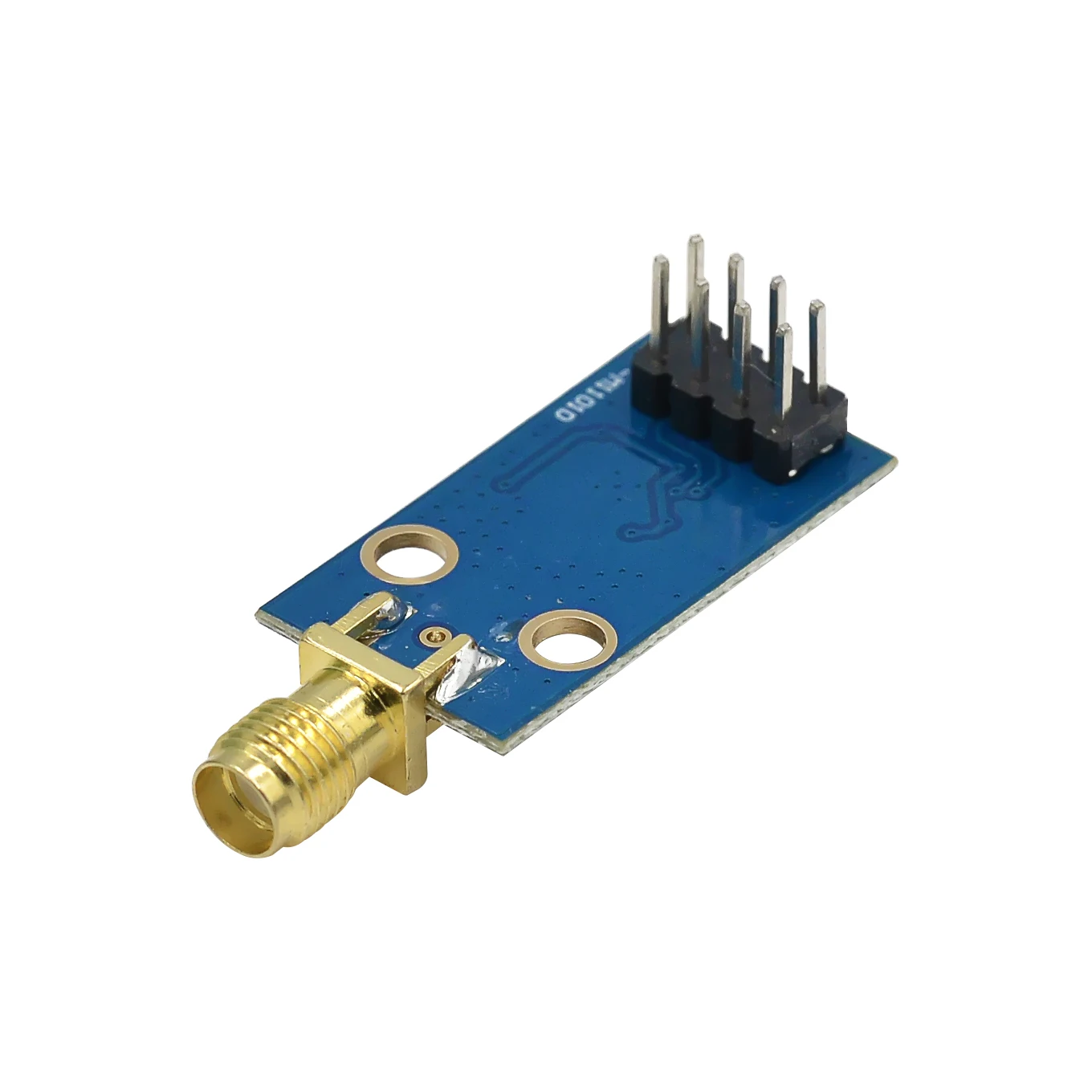

1PCS CC1101 Drahtlose Modul Mit SMA Antenne Wireless Transceiver Modul Für Arduino 315/433/868/915MHZ

Produktbeschreibung

Industrial-grade CC1101 wireless module 433M digital transmission transceiver class NRF905 SI4432 SMA interface
Wireless Module
Condition: New
Operating frequency:(Module:387-464MHZ)
Working voltage:1.8-3.6V
Instantaneous maximum working current
Maximum transmit power: 10mW (+10dBm)
Features
315/433/868/915MHZ ISM band
Support 2-FSK, GFSK and MSK modulation
Receiver sensitivity -110dBm at 1200 baud
Minimum operating speed 1.2kbps, the highest 500kbps
Separate 64-byte RX and TX data FIFO buffer
Built-in hardware CRC error detection ensures reliable data transmission
Support RSSI signal strength detection and carrier sense function
Low power consumption
Mailing Address (256) Operating frequency can be programmed via SPI
Programmable output power, for all the support frequencies up to +10 dBm
WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption
Fast frequency synthesizer with proper frequency hopping system

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1
