NBR SC-Zylinderdichtung, bidirektionaler Kolbendichtungsring vom COP-Typ, pneumatisch, Luftdichtung, verschleißfestes Gummiauflage für Zylinder

Produktbeschreibung

Product Information
Model:COP Type Bidirectional Piston Sealing Ring
Material: Nitrile Butadiene Rubber （NBR）
Colour: Black
Working Temperature: -20 °C~+80 °C
Material hardness:93 degrees
Package:Bubble pack / Paper Box
Surface Treatment:Untreated

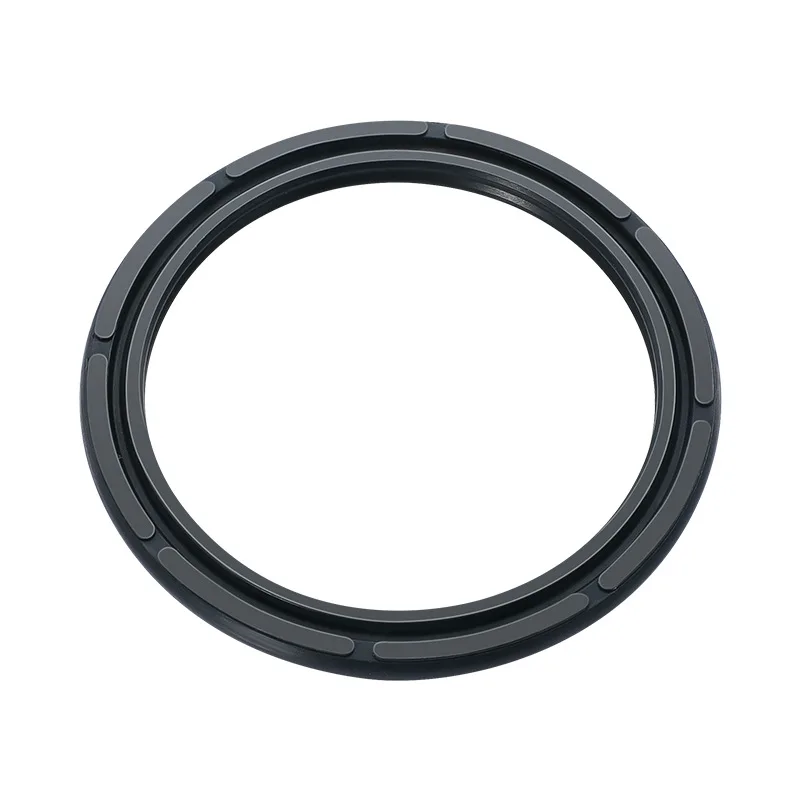

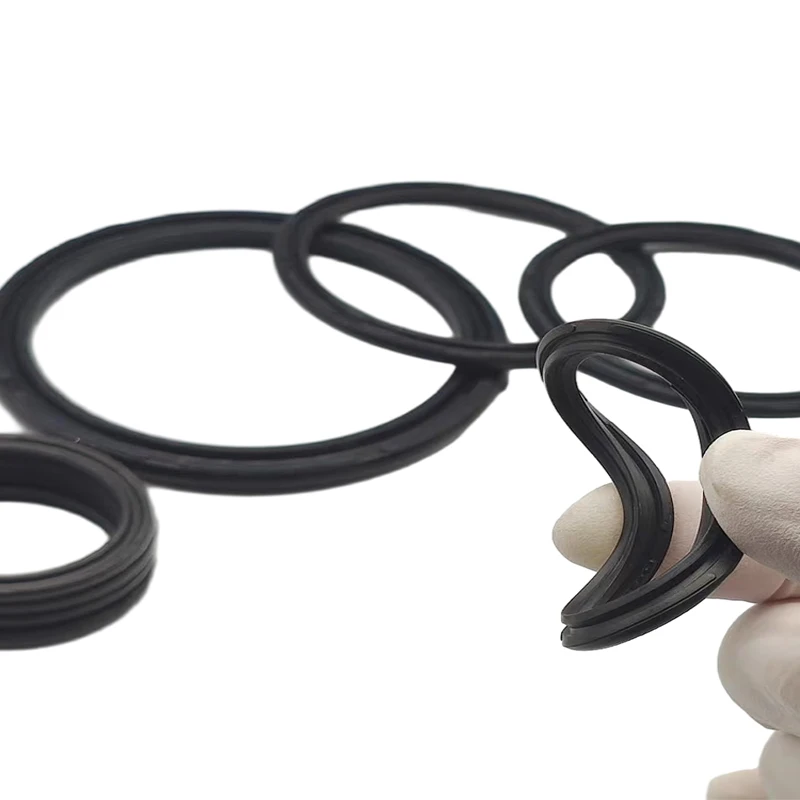

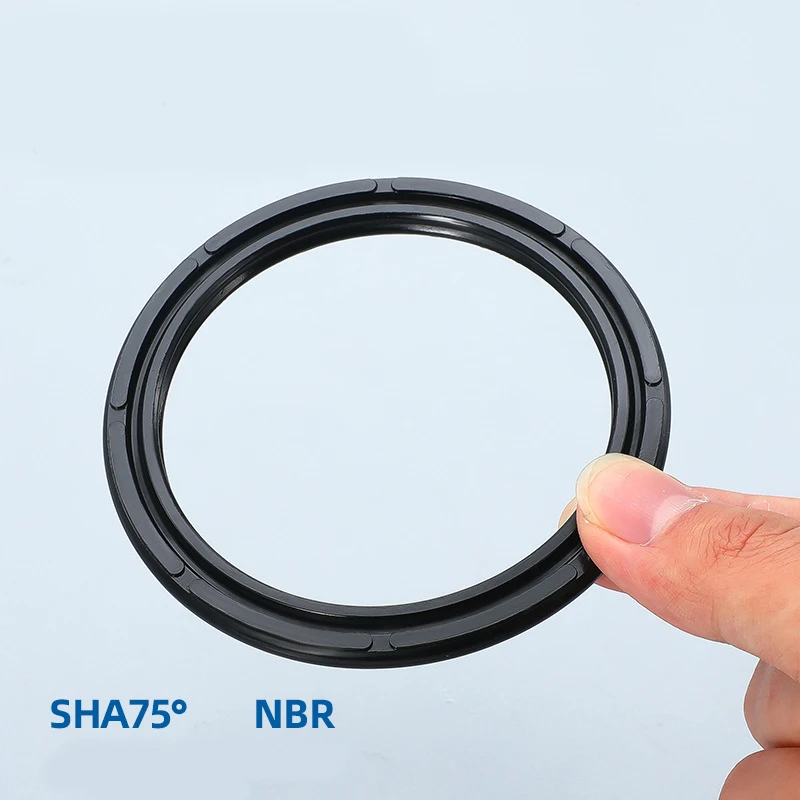

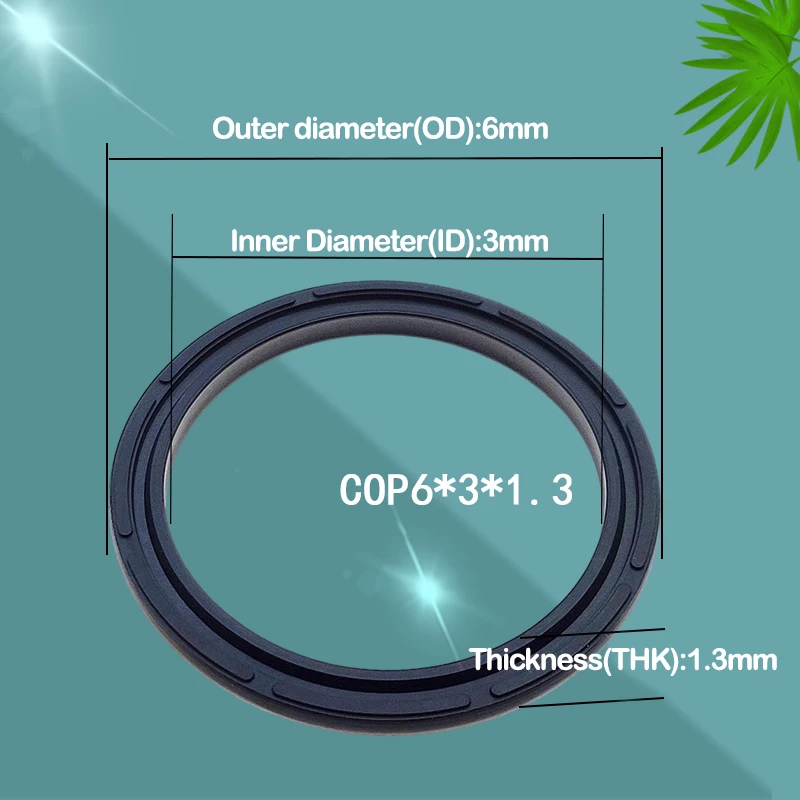

COP(OPA) seal ring
The utility model relates to a small acting cylinder piston seal, which has better friction characteristics than an O-ring, and is used for standard cylinders, small diameter cylinders and thin cylinders.
Technical parameters and installation
Working pressure: ≤1.0MPA
Operating temperature: -20 °C~+80 °C
Surface velocity: ≤1M/S
Medium: oil-lubricated air as well as dry and oil-free air (initial lubrication required during assembly)
Installation
This type of pneumatic seal is easily fitted over the piston into the groove. In order to avoid damage to seals, measures should be taken to avoid sharp edges during installation. In the case of oil-free lubrication, it is important to have a complete auxiliary synovial film on the sealing surface, which should be done before assembly to ensure a long working life of the seal.
Note:There have been serious delays in parcels from free logistics channels. Please try to choose paid logistics channels, such as the following logistics channels
Express Service
The company solemnly promises

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Material

Metall

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

COP Type Bidirectional Piston Sealing Ring

Form

Ringdichtung

Standard oder Nichtstandard

Standard

Zertifizierung

NONE
