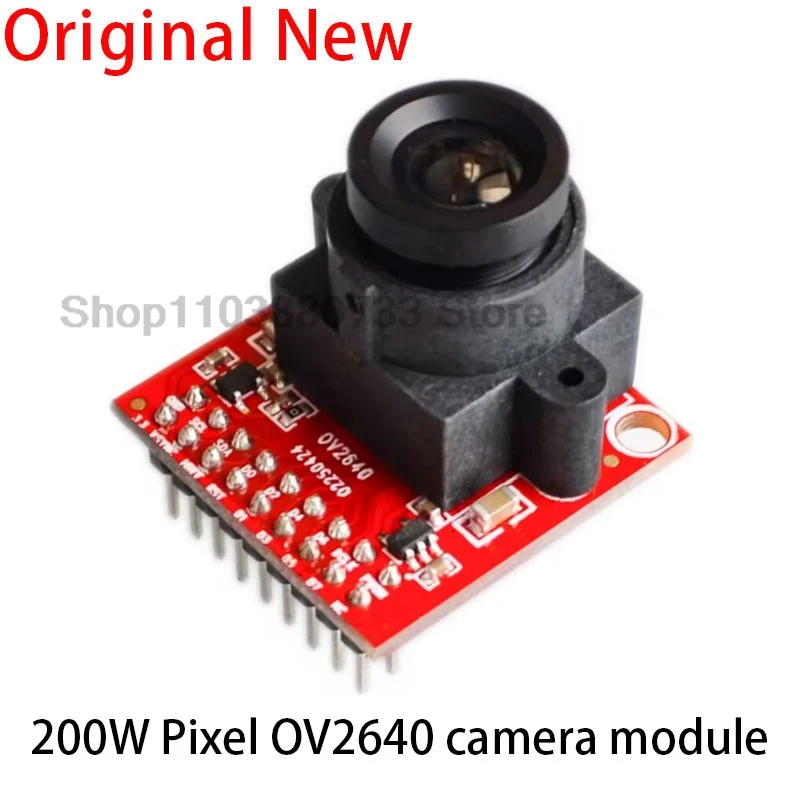

OV2640 Kameramodul 2MP Megapixel STM32F4 Treiberquellencode Unterstützung JPEG-Ausgang für Arduino

Produktbeschreibung

200W pixel OV2640 camera module New STM32F4 driver source code support JPEG output standard camera lens focal length 3.6mm.
1. Module introduction
The OV2640 camera module is made with a 1/4 inch OV2640 million HD CMOS sensor. It has the characteristics of high sensitivity, high flexibility, support JPEG output, etc. And can support exposure, white balance, chroma, saturation, contrast and many other parameter Settings, support JPEG/RGB565 format output, can meet the needs of different occasions.
Module parameter performance
1, sensor size: 1/4 inch.
2, pixel: 1600*1200 (200W).
3, output format: RGB565/JPEG/YUV/YCbCr, etc.
4, control interface: SCCB.
5, working voltage: 3.3V
6, module size: 27mmX27mm
The OV2640 image sensor has 2 megapixels (1632x1232 pixels), is small and operates at low voltage, and provides all the functions of a single chip UXGA camera and image processor. Through SCCB bus control, can output a variety of resolution 10-bit sampling data in the form of whole frame, sub-sampling, taking window, etc. The product UXGA image reaches 15 frames per second. The user has complete control over image quality, data format and transmission mode. All image processing functions, including gamma curves, white balance, saturation, chroma, etc., can be programmed through the SCCB interface. The sensor technology applied by OmmiVision image sensors improves image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, tail support, float, etc., resulting in clear and stable color images.
The product uses OV2640 sensor as the core component, integrates active crystal oscillator and LDO, has simple interface and is very convenient to use.
Module features
�� High sensitivity and low voltage for embedded applications
�� Standard SCCB interface, compatible with I2C interface
�� RawRGB,RGB(GRB4:2:2,RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output formats
Support UXGA, an SXGA, VGA, QVGA, QQVGA, CIF, QCIF and until 40 x the size of the different sizes
�� Support automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration. Image quality control includes color saturation and color
Phase, gamma, sharpness ANTI_BLOOM and other Settings.
�� Support image scaling, panning and window Settings

Produktdetails in Bildern

Produkteigenschaften

Markenname

Ydlzmsjiah

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

ist kundenspezifisch

Ja
