1 Stück 10 ml grüne UV-Lötmaske BGA PCB-Farbe verhindert korrosive Arcing-Lötpaste Flussmittel PCB UV lichtempfindliche Tinten

Produktbeschreibung

This is a liquid photo solder resist, is an acrylic oligomer.
Due to the special nature of the material, the solder mask oil will not dry naturally. UV curing is required.
As a protective layer, it is applied to the circuit and substrate on which the printed circuit board does not need to be soldered or used as a solder resist.
The purpose is to protect the formed line pattern for a long time.
Industrial Applications
Prevent physical disconnection of the conductor circuit.
In the welding process, the short circuit caused by the bridge is prevented.
Welding only in the parts that must be welded to avoid solder waste.
Reduce copper contamination of the welding trough.
Prevent deterioration and corrosion of insulation due to external environmental factors such as dust and moisture.
It has high insulation and makes it possible to increase the density of the circuit.
Instructions

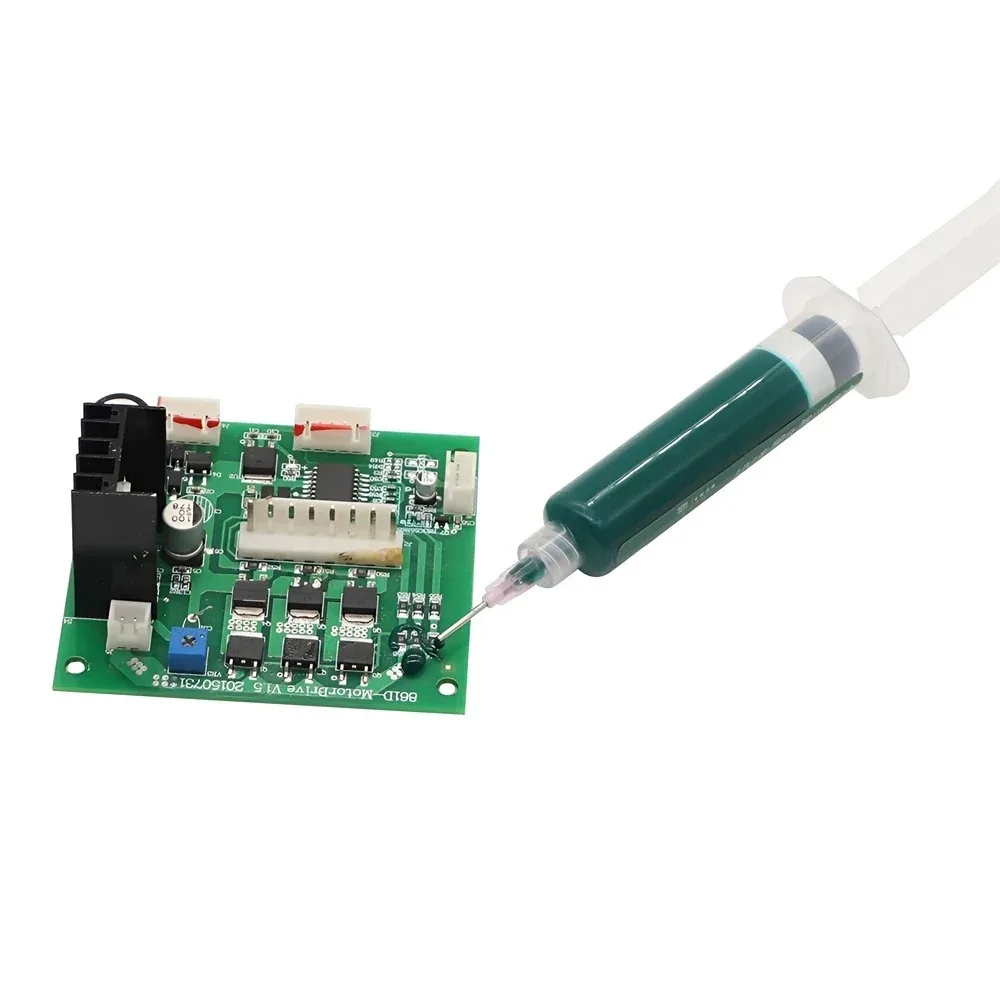

Apply the soldering mask oil ink to the motherboard that needs to be repaired. (Please apply as evenly as possible, and make sure the coating is not too thick.)
Use the UV flashlight to be curing the coating. (Since the power of the flashlight is relatively small, the curing time is about 5-15 minutes.)
To wipe the wrong substrate, it is recommended to use industrial alcohol or industrial cleaner.
Precautions
Use only with adequate ventilation.
The solder paste contains organic solvent. Avoid repeated contact with skin. If the solder paste gets on your skin, wipe it off with alcohol and rinse thoroughly with water.
In order to be cautious, in the operation, the smoke released by the solvent during operation should be avoided as much as possible, and the skin and mucous membrane tissues should not be contacted for too long. Avoid repeated breathing of vapor.
Avoid contacting with eyes.

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Zertifizierung

CE

Choice

yes

semi_Choice

yes
