9IMOD RC Digatal Servo 11KG Coreless Metal Gear Servo 4,8-8,4V für 1/8 1/10 1/12 1/18 RC Auto RC Hubschrauber DIY Zubehör

35,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 6–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

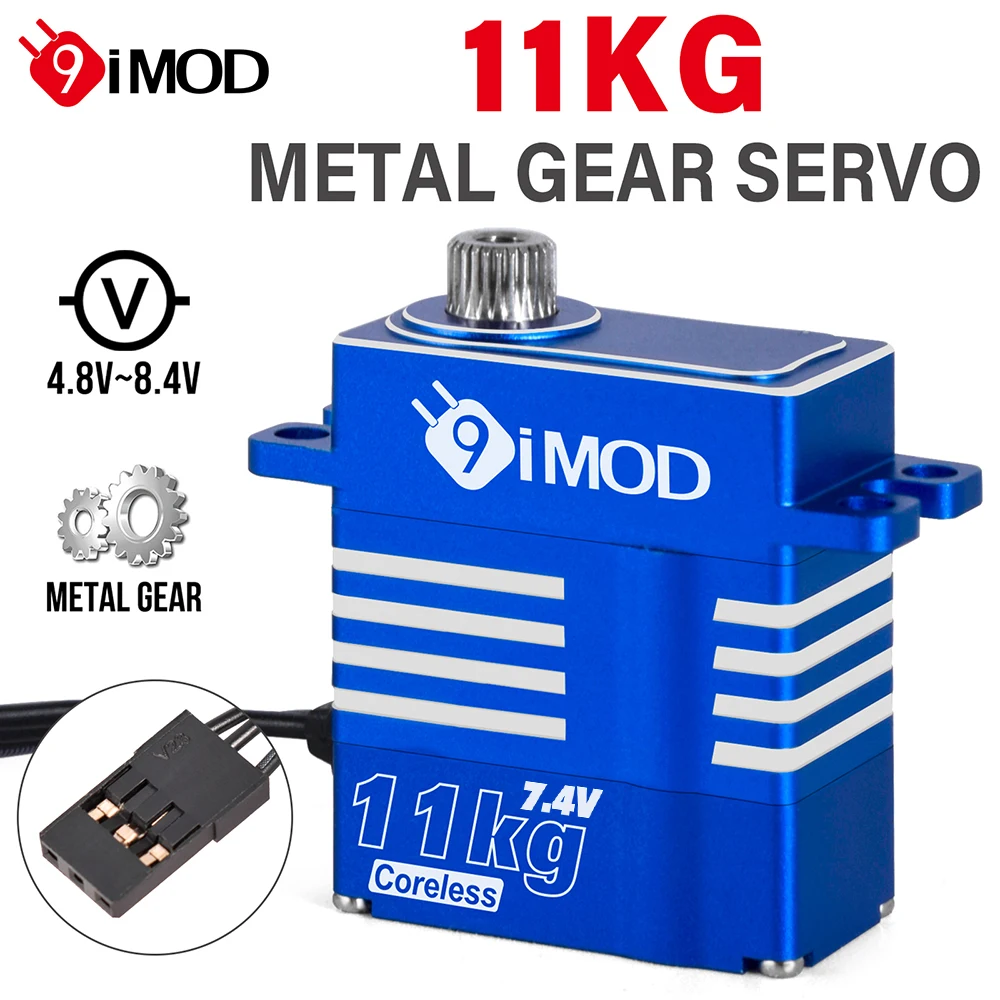

9IMOD RC Digatal Servo 11KG Coreless Metal Gear Servo 4.8-8.4V for 1/8 1/10 1/12 RC Car RC Helicopter DIY Accessories
Features
Coreless metal gear high torque digital micro servo, high sensitivity, stable and low-noise.
High precise metal gear, with better accuracy and longer service life.
Operating at a voltage range of 4.8V to 8.4V, this rc digital servo delivers impressive performance.
Description
11KG Coreless Metal Gear Servo,Full Aluminum Case and Stainless Steel Gear ball bearings Design,the servo work stable, low noise, Its lightweight design, makes it ideal for various RC applications.
Specifications
Brand: 9IMOD
Operating Voltage: 4.8~8.4V DC
Standby Current: ≤20mA
Rotating Direction: CCW(500→2500 us)
Pulse Width Range: 500~2500us
Neutral Position: 1500us
Operating Travel Angle: 180° ±10° (500~2500 us)
Max. Operating Travel Angle: 270° ±10° (500~2500 us)
Mechanical Limit Angle: 360°
Left & Right Travelling Angle Deviation: ≤ 5°
Centering deviation: ≤ 1 °
Dead Band Width: ≤ 3us
