M12 bis hirschmann magnetventil stecker din bilden einen sensor aktor adapter hydraulisch pneumatisch elektro magnetisch

Produktbeschreibung

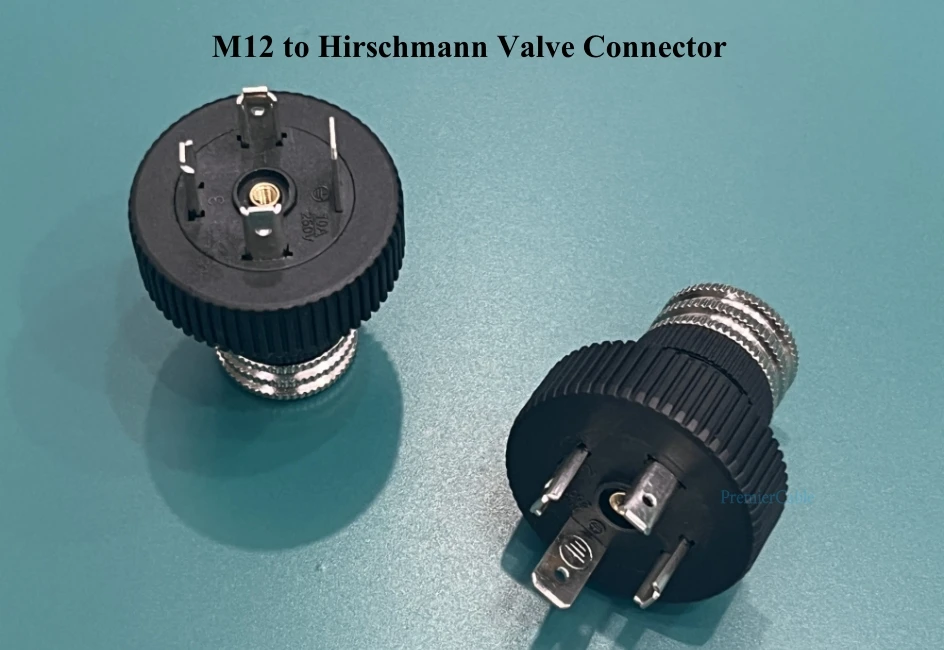

The M12 to DIN 43650 Form A Sensor Actuator Cable Adapter are designed to provide easy and reliable quick disconnect options for many valve applications.and with quick disconnect receptacles or plugs.
Specifications
Component Type: Receptacle

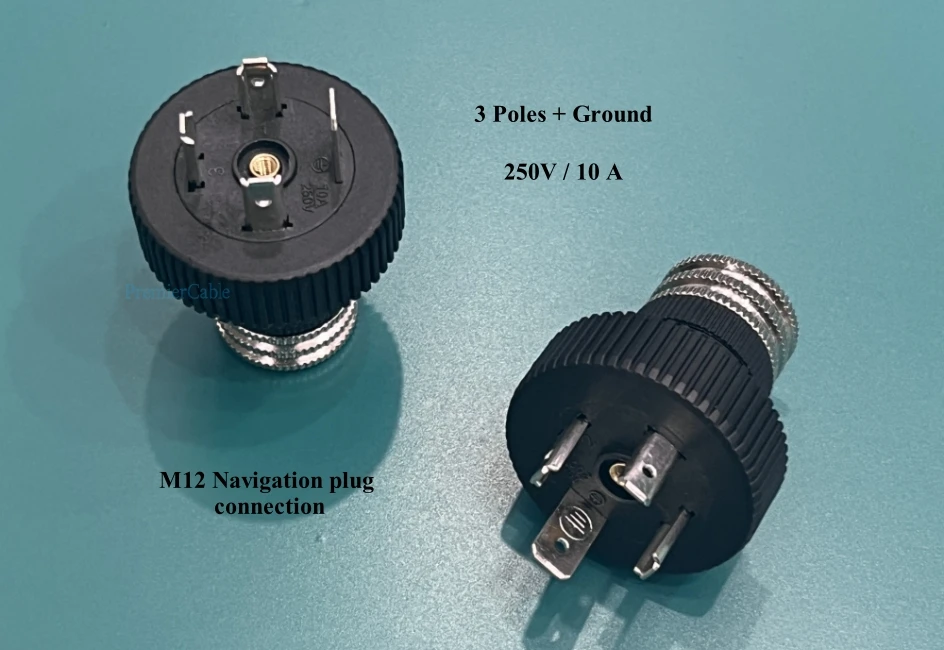

Number of Poles: 3 Poles + Ground

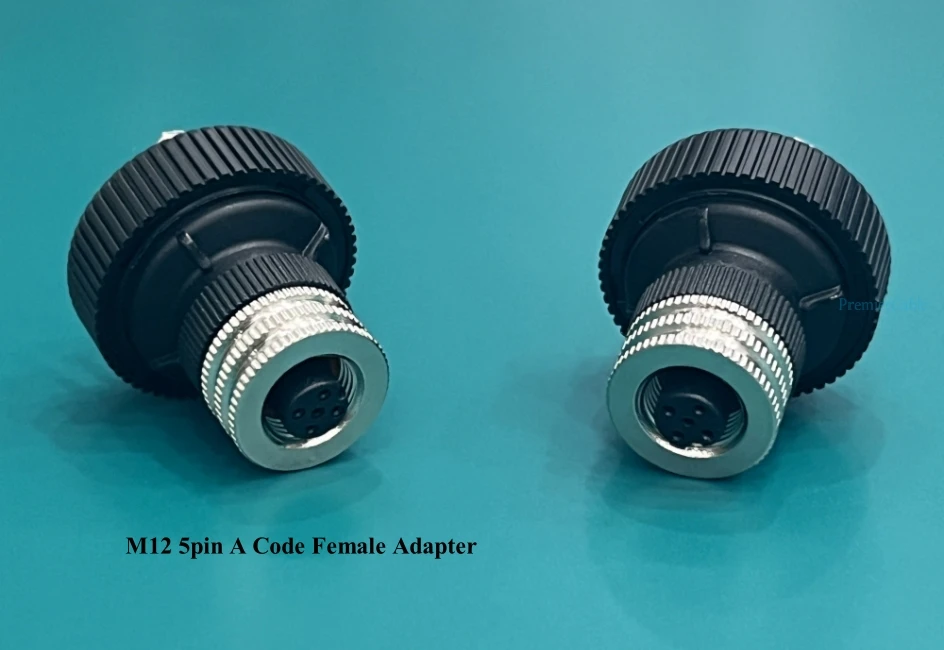

Pin Count (M12): 5
Protection Class: IP65
Screw: Zinc Plated Steel
Orientation Head (M12): Male Straight
Coupling Thread: Male
Mounting Thread: M12
Color Code: DIN 43650 Form A
Nominal Current: 250V/10A

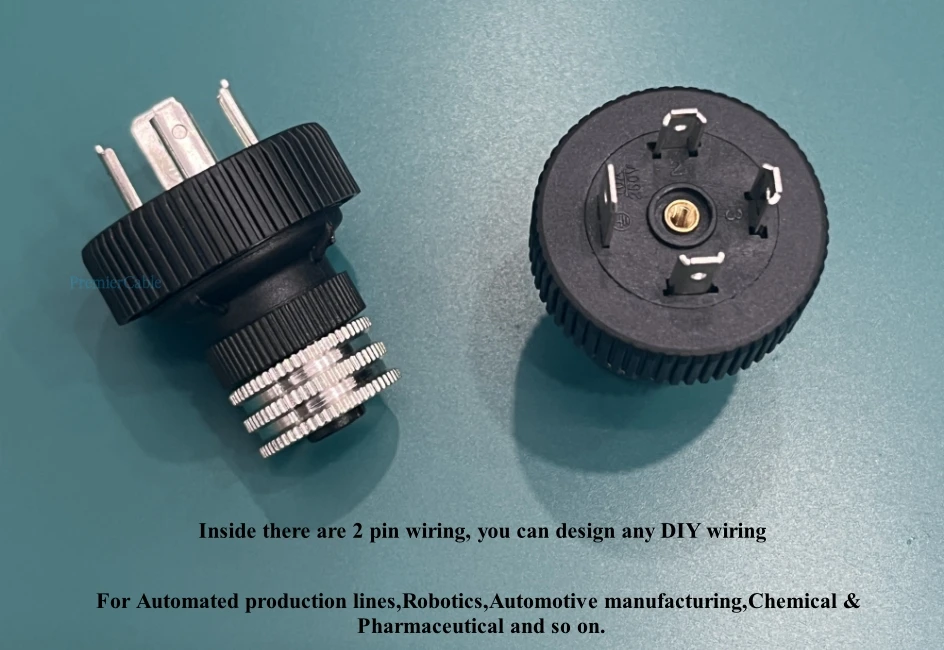

Inside there are 2 pin wiring, you can design any DIY wiring
Application field
Automated production lines: M12 to Hirschmann Joint Solenoid Valve Connector used to connect solenoid valves to control systems to control the flow of gases and liquids.
Robotics: Connect solenoid valves and robot controllers to manage pneumatic or hydraulic systems.
Automotive manufacturing: DIN 43650 Valve Connector Connecting various solenoid valves in the car, such as oil pressure and brake system control.
Chemical & Pharmaceutical: Hydraulic Pneumatic Valve Sensor Control the flow of liquids and gases to ensure precise control of the production process.
Water treatment: used for water flow and pressure control to ensure the normal operation of the water treatment process.
HVAC Systems: Control the flow of fluids and air in HVAC systems to improve system efficiency and comfort.

Produktdetails in Bildern

Produkteigenschaften

Markenname

PremierCable

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

CE

Modellnummer

PCM-DV-001

Choice

yes

semi_Choice

yes
