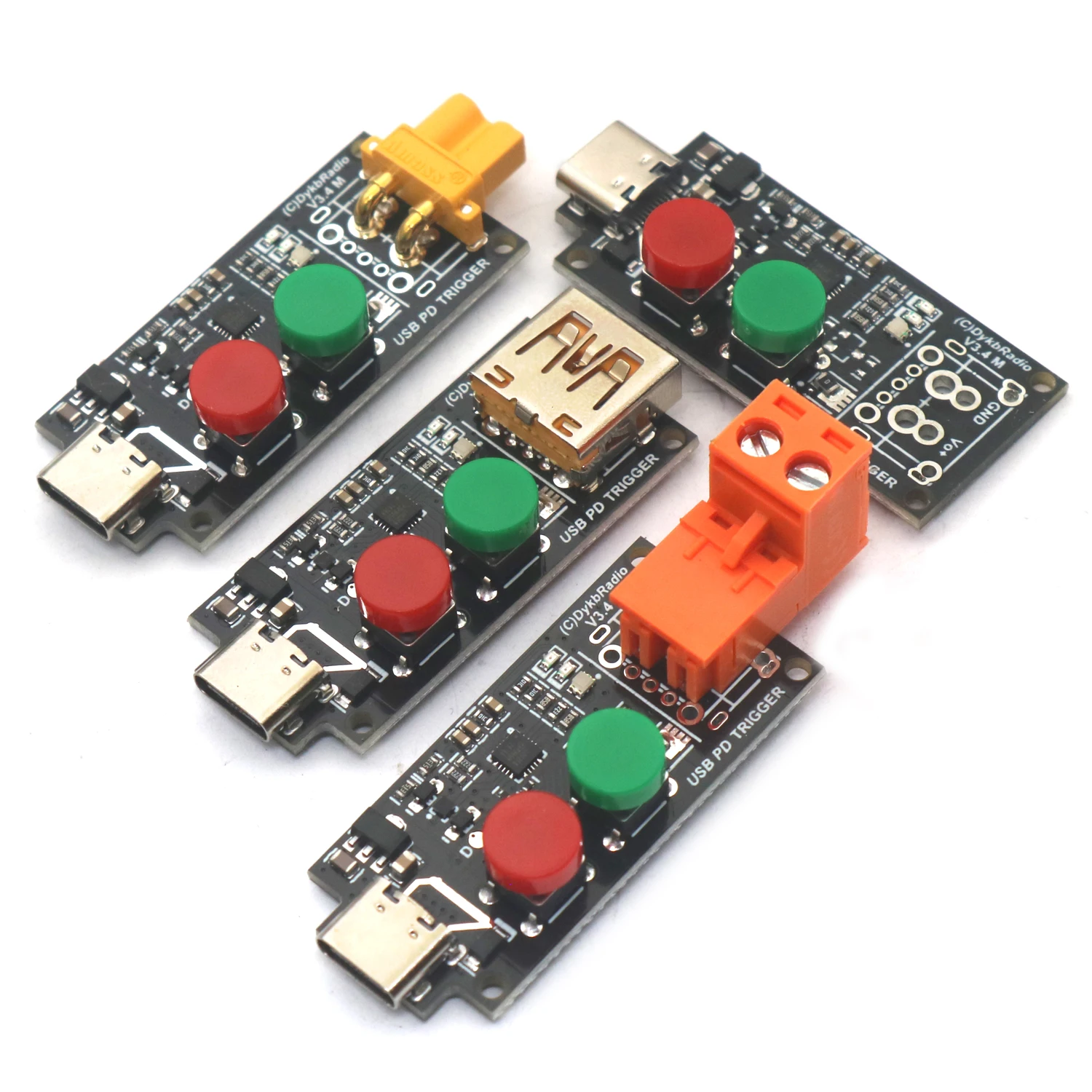

240W 5A USB-C PD/QC Spannungs-Trigger Schnellladegerät PD2.0/3.0/3.1/3.2 Decoy 5V 9V 12V 15V 20V 28V 48V PD zu DC Adapter Ladegerät

Produktbeschreibung

240W 5A TYPE USB PD/QC Voltage Trigger Module Fast Charge PD/QC 2.0/3.0/3.1/3.2 Decoy Trigger Board 5V 9V 12V 15V 20V 28V 48V PD TO DC Adapter Cable Connection
Before purchasing Please refer to our advertising test video
Your charger and cable must simultaneously support Voltage and power
PPS mode works only in the 3.3v-11v range
red LED1: PD mode indication
green LED2: QC mode indicator
RGB: represents voltage

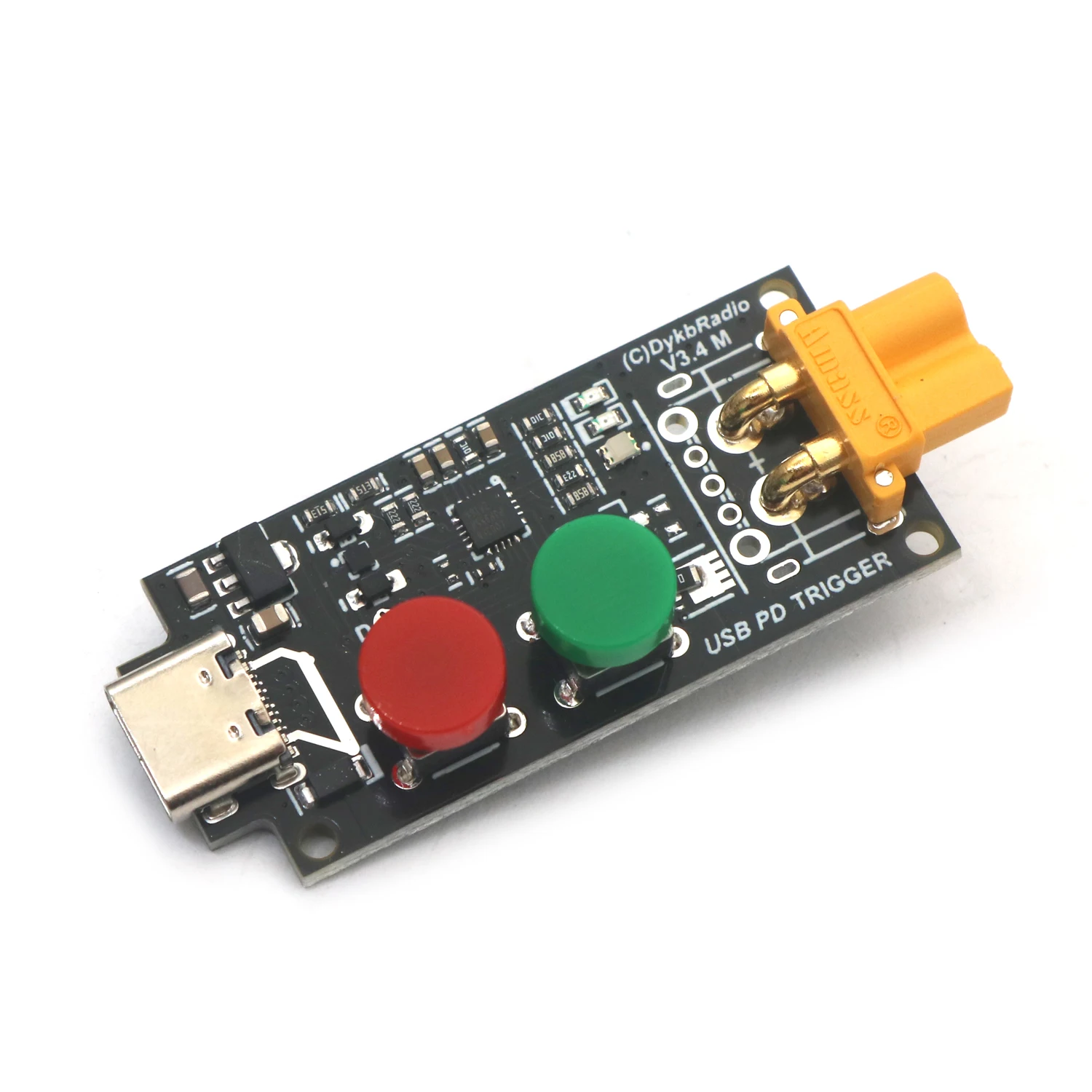

The USB PD/QC Voltage Trigger Module is a voltage trigger (decoy) module specifically designed for chargers, power banks, and energy storage devices. The module consists of a CC VBUS voltage clamping and protection circuit, an output open/close circuit, five LED indicators, two buttons, and so on. The module has the following features
1. Rich input and output interfaces, simple and intuitive operation.
2. Can be used in scenarios such as PC laptops, Raspberry Pi development boards, toys, outdoor devices such as wind turbines and motors, power tools, and factory testing. The module is flexible and convenient to use, and can be modified and DIY for specific scenarios.
3. The module has two buttons, which perform the following actions
a. Left (red) button: Short press to switch to a fixed voltage, long press to switch to PPS or QC3 step mode, short press to exit the mode. Long press to turn on the device, the red LED lights up after the long press, and then enters the PDO rotation.
b. Right (green) button: In PPS or QC3/4 mode: Short press to increase, long press to decrease. Long press to turn on the device, the GRREN LED lights up after the long press, and then enters the QC mode.
1. The RGB color corresponds to the voltage range (+1.5V to -1.5V): no light

Produktdetails in Bildern

Produkteigenschaften

USB PD QC Voltage Trigger Module

PD QC TO DC Decoy

QC 2.0 3.0 4.0

PD 2.0 3.0 3.1 3.2

Voltage Trigger

5V 9V 12V 15V 20V 28V 48V

Datenaufzeichnung

Nein

Markenname

NONE

Zertifizierung

NONE

Typ

TYPE-C USB PD/QC Voltage Trigger Module

Halbfertigprodukt

Ja

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

Ausgangsspannung

USB XT30 2PIN

Modellnummer

PD QC TO DC Voltage Trigger Decoy

Größe

PD protocol PD2.0 3.0 3.1 3.2

Hochbetriebenes Chemikalienunternehmen

Keine

Art

QC protocol QC 2.0 3.0 4.0
