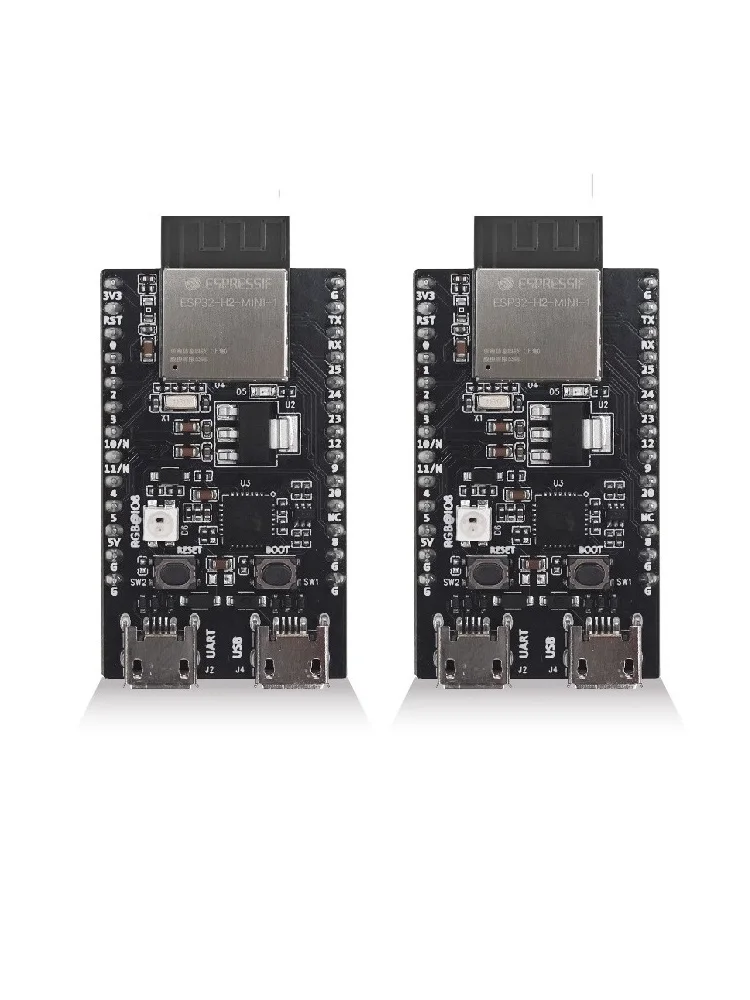

ESP32-H2-DevKitM-1 Entwicklungsboard, Original Espressif Thread/Zigbee/BLE5 Evaluation Kit

Produktbeschreibung

ESP32-H2-DevKitM-1 (with ESP32-H2-MINI-1 on board)
The document consists of the following major sections
Getting Started: Overview of ESP32-H2-DevKitM-1 and hardware/software setup instructions to get started.
Hardware Reference: More detailed information about the ESP32-H2-DevKitM-1’s hardware.

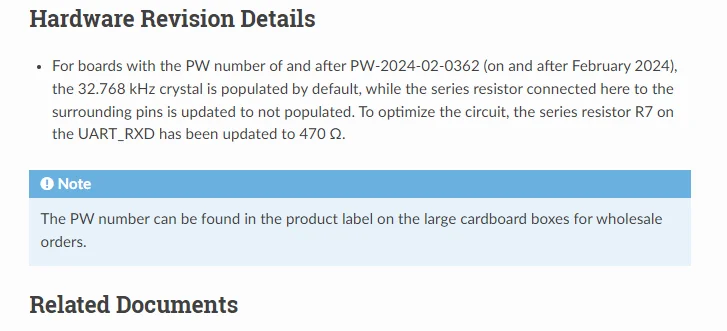

Hardware Revision Details: Revision history, known issues, and links to user guides for previous versions (if any) of ESP32-H2-DevKitM-1.
Related Documents: Links to related documentation.
Getting Started
This section provides a brief introduction of ESP32-H2-DevKitM-1, instructions on how to do the initial hardware setup and how to flash firmware onto it.
Software Setup
Please proceed to Get Started, where Section Installation will quickly help you set up the development environment and then flash an application example onto your ESP32-H2-DevKitM-1.
Contents and Packaging

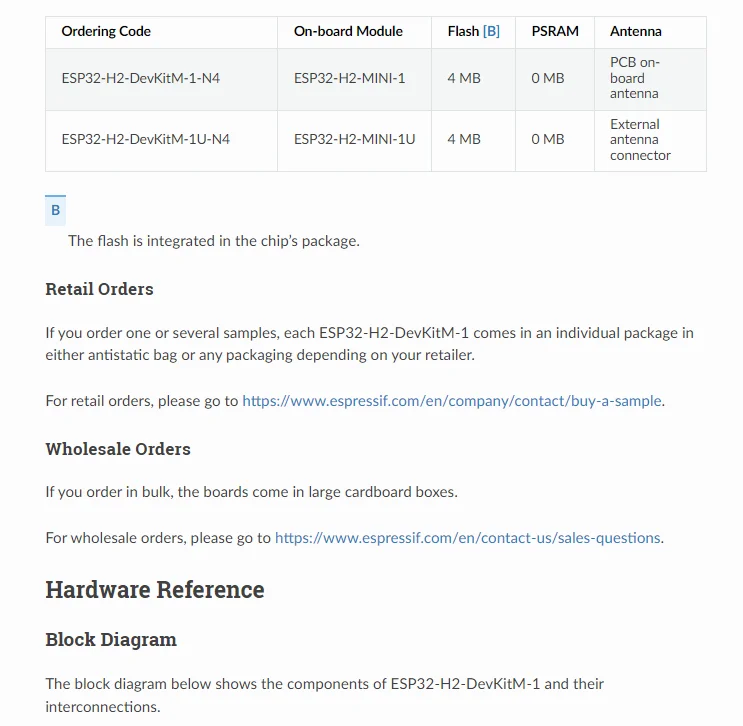

Ordering Information
The development board has a variety of variants to choose from, as shown in the table below.
Power Supply Options
There are three mutually exclusive ways to provide power to the board
USB Type-C to UART port, default power supply
5V and GND pin headers
3V3 and GND pin headers

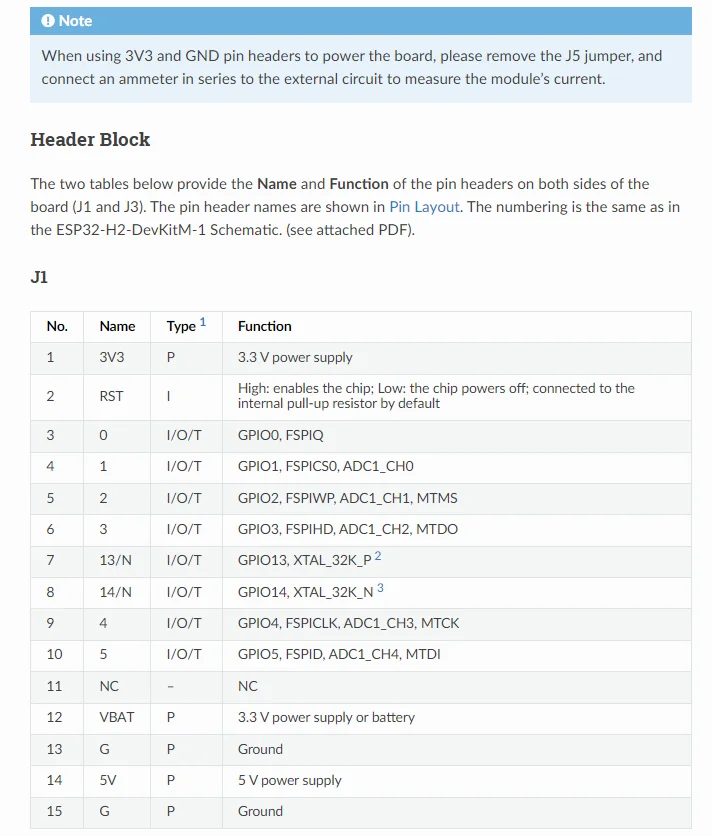

Current Measurement

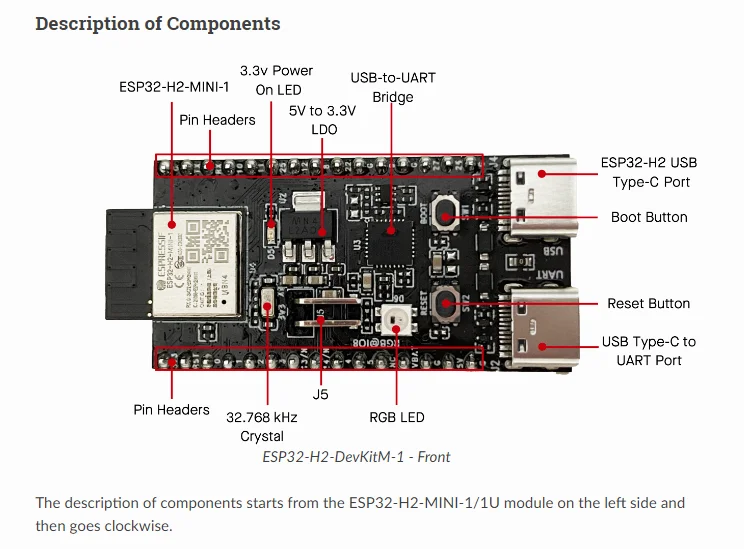

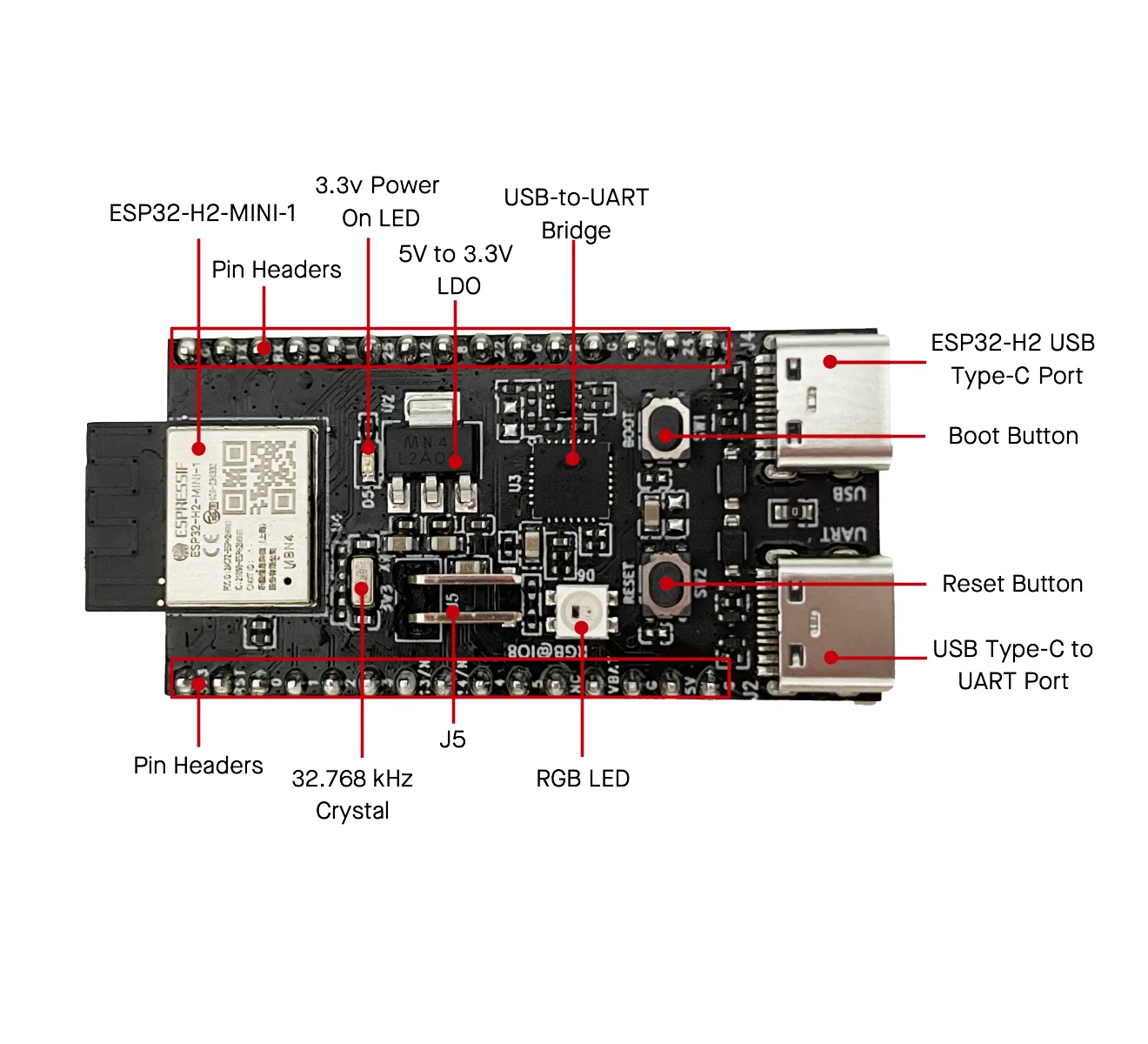

The J5 headers on ESP32-H2-DevKitM-1 (see J5 in Figure ESP32-H2-DevKitM-1 - Front) can be used for measuring the current drawn by the ESP32-H2-MINI-1/1U module

Produktdetails in Bildern

Produkteigenschaften

Markenname

W

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul
