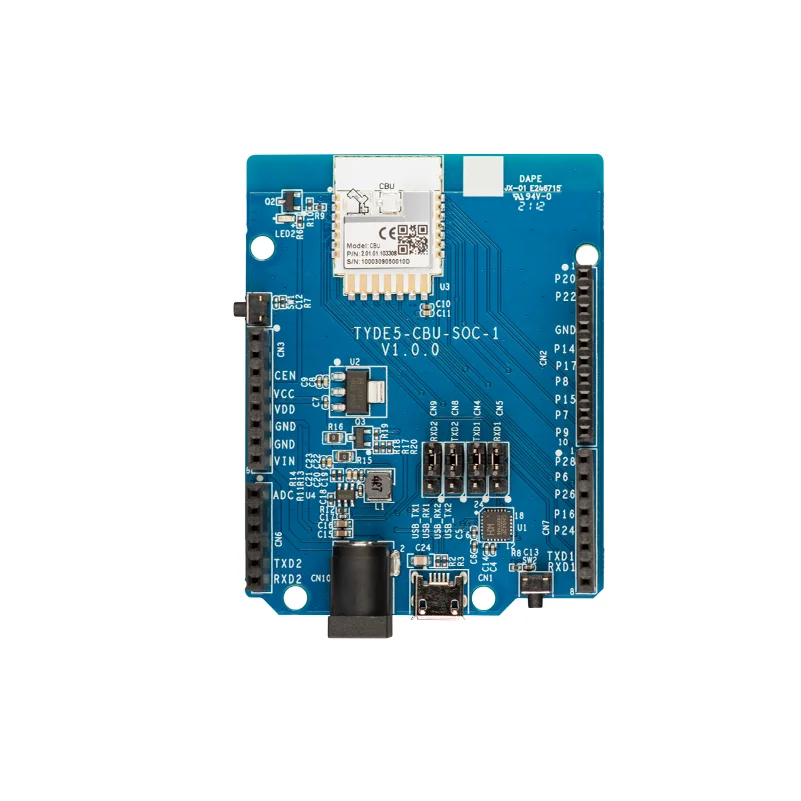

Tuya CBU Development Board Onboard CBU Modul Wi-Fi/ Bluetooth LE SoC Board

Produktbeschreibung

The Tuya Sandwich Wi-Fi and Bluetooth LE combo SoC has Tuya’s CBU network module as a microcontroller, which is designed to help you easily prototype your IoT ideas. It can work with functional boards or circuit boards to implement specific features.
Applications
This development board applies to a wide range of prototypes implemented with Tuya’s no-code solutions, such as sockets, power strips, switches, and lights.
Develop with the board to build your IoT projects easily and fast.
You can use this board for different development purposes.
Embedded program development and debugging
App development and debugging
Creating connected devices that can be controlled with a mobile phone
Getting started with IoT development and learning how the Wi-Fi-based control system works
Components

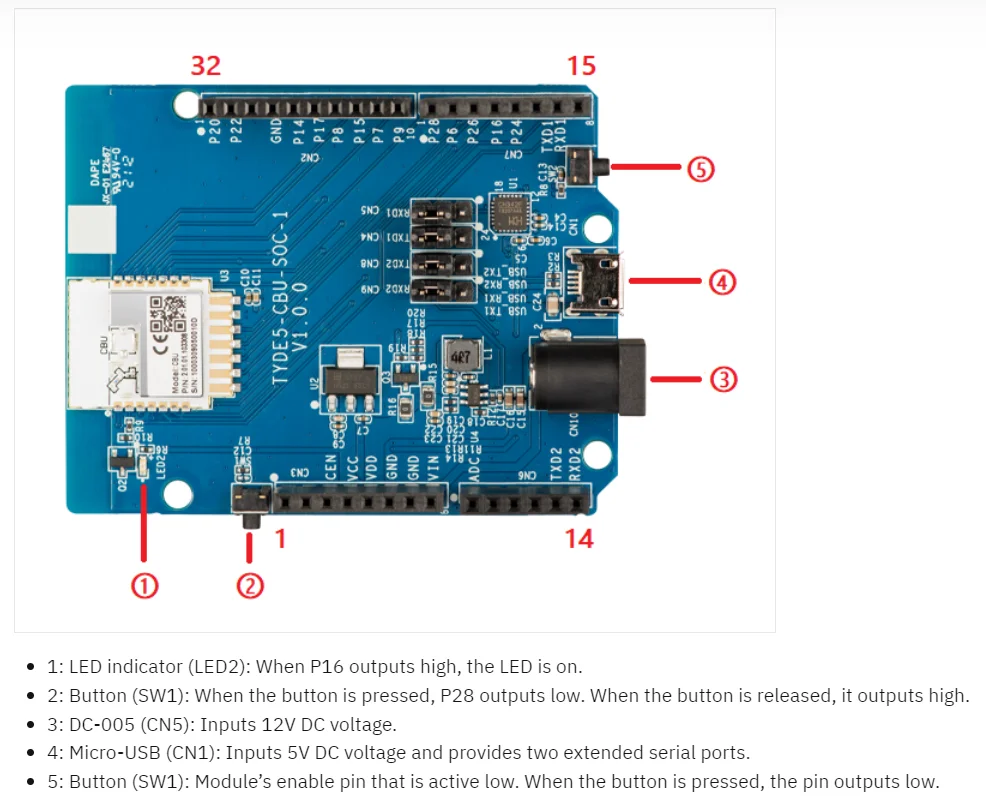

The development board is integrated with Tuya’s proprietary high-performance Wi-Fi and Bluetooth LE combo module. It has on-board buttons, LED, GPIOs, and a USB-to-serial chip. For more information, see the CBU Module Datasheet.

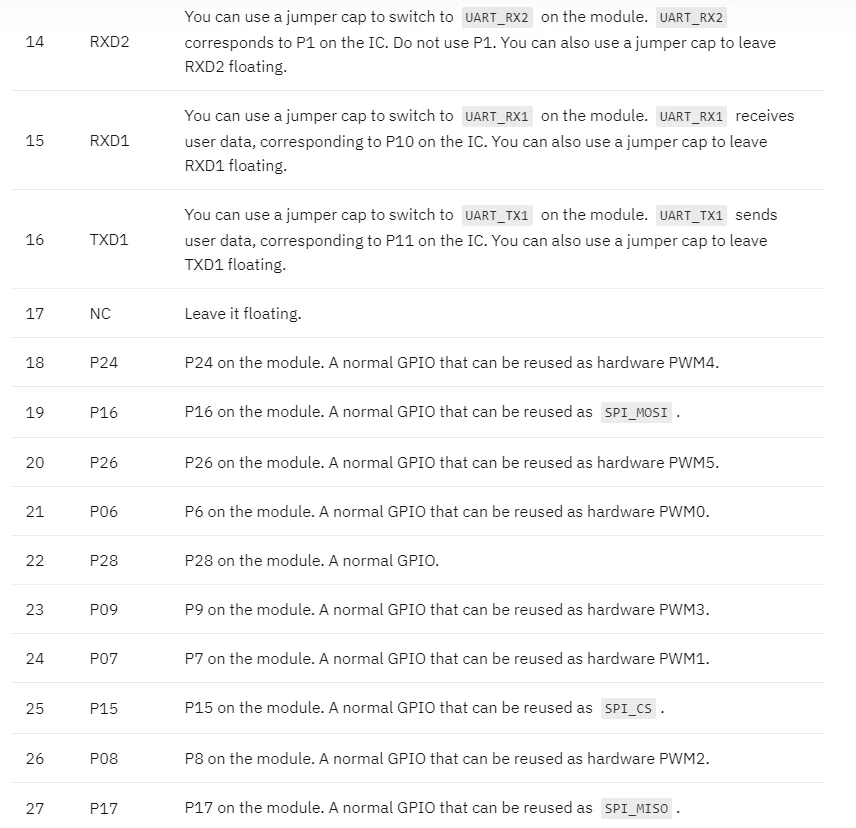

I/O port and pin description
How USB-to-serial chip works
The board has a built-in USB-to-serial chip. The single-channel USB port can provide two extended serial ports. You can use a jumper cap to allow the 2-channel serial port on the module to connect to the USB-to-serial chip. Pin connection description
Silkscreen of pin header
CN9
CN8
CN4
CN5
Pins on module

Produktdetails in Bildern

Produkteigenschaften

Markenname

W

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul
