IX2AL Fahrradvorbau MTB/Rennrad/Gravel Ultraleichter Fahrradvorbau aus 7075 T6 Aluminiumlegierung, CNC-gefertigt, Titan-Schrauben, nur 67g -6 -17 Grad

Produktbeschreibung

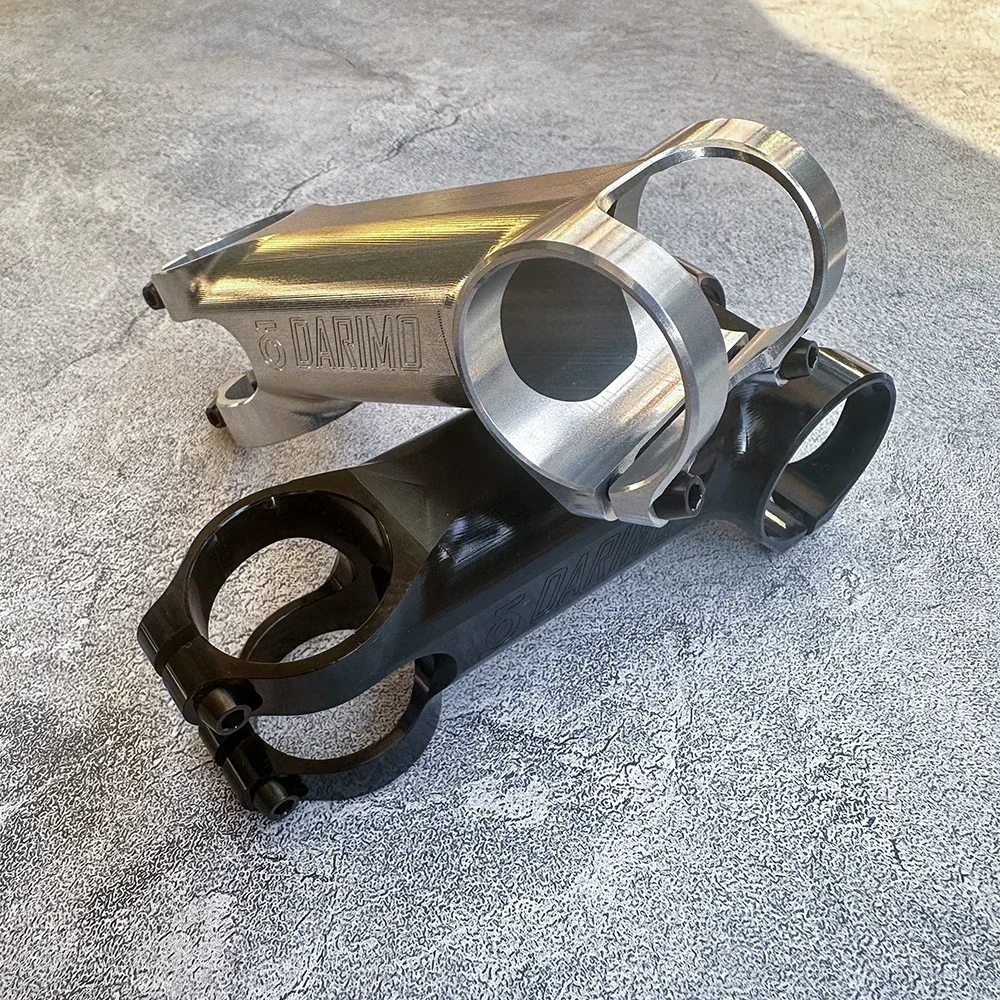

IX2AL 7075 T6 aluminum stem Silver/Black | -6°
is the perfect stem for everyone who loves aluminum stems and still wants to do without every unnecessary gram on the bike. With just 72g and a length of 80mm, this stem is a real flyweight. Anyone who wants to build an ultra-light bike should consider this stem.
But how do the Spaniards manage to produce such a flyweight? The clever minds from Valencia have worked a lot and save material wherever they can. But of course they also pay attention to safety and rigidity. For the latter, the shape plays an important role. The stem features an integrated faceplate with just two screws. With this design, the stiffness in the clamping area is increased on the one hand and the surface pressure on the handlebars is reduced on the other. The large contact area (24 square centimetres) makes it stiffer than heavier stems. After all, this stem impresses with an impressive design language and becomes a real highlight on your bike.
Features
Area of intended use: Gravel, MTB (Cross Country, Marathon)
Material stem: 7075 T6 aluminum
Material screws: titanium
Handlebar clamp Ø: 31.8 mm
Steerer diameter: 1 1/8"

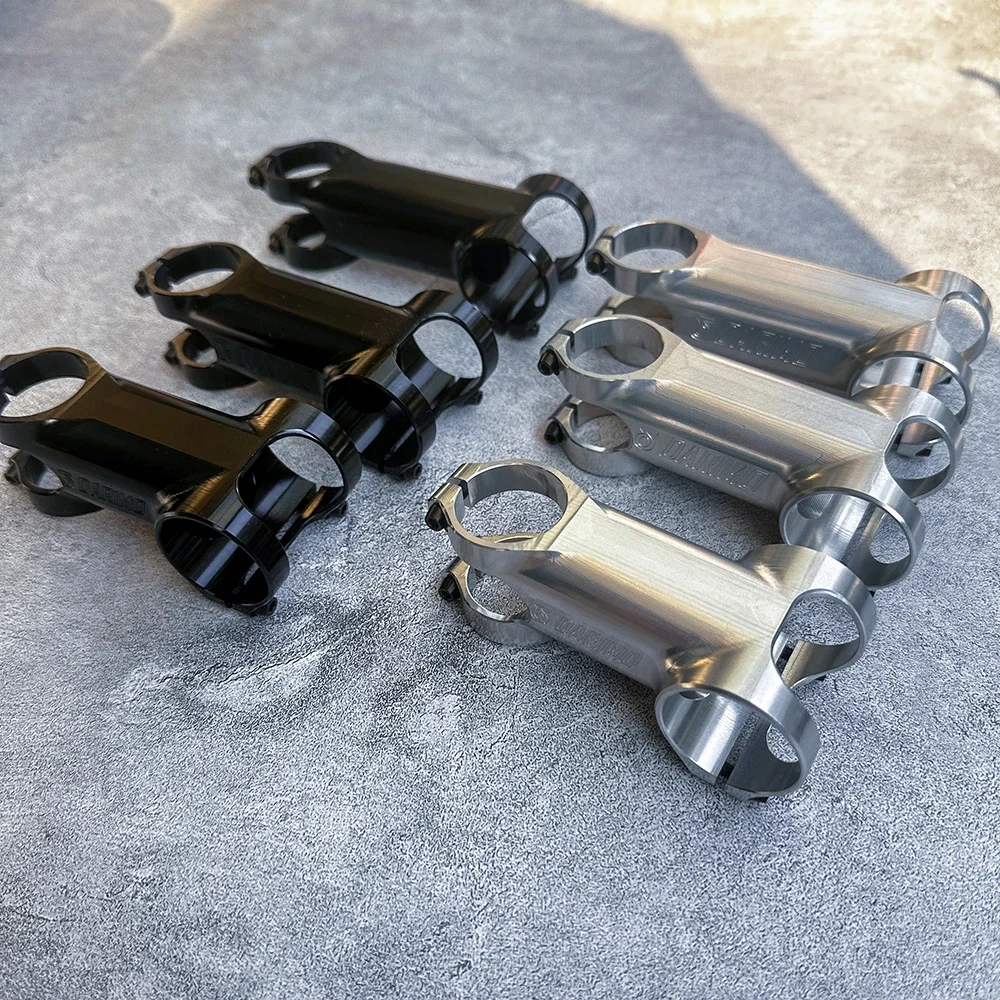

Lengths: 40,50,60, 70, 80, 90, 100, 110, 120 or 130 mm
Angle: -6°
Clamp height steerer tube: 38 mm
Handlebar clamping width: 48 mm
Tool holder: 4 mm Allen key
Max. permissible torque: 3.5 Nm
Weight limit: max. 90 kg (driver + clothing + luggage)
Finish: Anodized aluminum

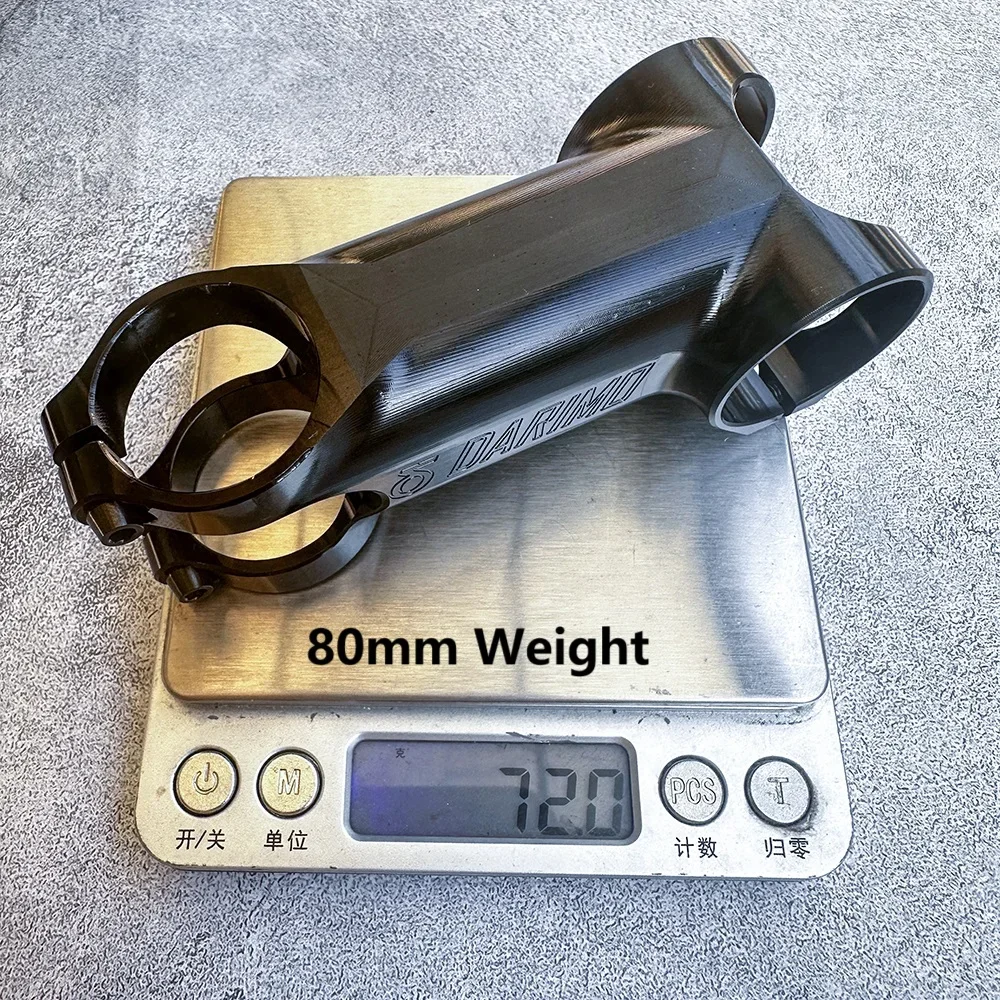

Weight weighed: 66g(70mm), 72g (80 mm), 77g(90mm),61g(60mm),79g(100mm),83g(110mm)

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Durchmesser der Lenkerklemme

31,1 - 32,5 mm

Durchmesser der Gabelklemme

28.6mm

Typ

Fahrrad-Stängel

Material

Aluminiumlegierung

Höhe

26 - 35 mm

Choice

yes
