3–24 V, 8 Bit, blau/rot, gemeinsame Anode/Kathode, LED-Anzeige, Modul, Breadboard, Starter-Kit, Platine für MCU ARM 3D-Drucker UNO MEGA2560

Produktbeschreibung

Product Name: 3.3V 5V 8-bit blue/Red common anode/cathode LED Indicator module diy kit for Arduiuo NANO UNO Raspberry PI 4 nodemcu
Packing list: 1 DC 3-24V 8-bit blue/red common anode/cathode LED lamp strip
Description: Can be inserted directly into the breadboard, Perfect for connecting your Arduiuo UNO Mini Nano Mega2560 DUE bread board etc or other MCU (AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 STC MSP430 FPGA/CPLD Etc.)

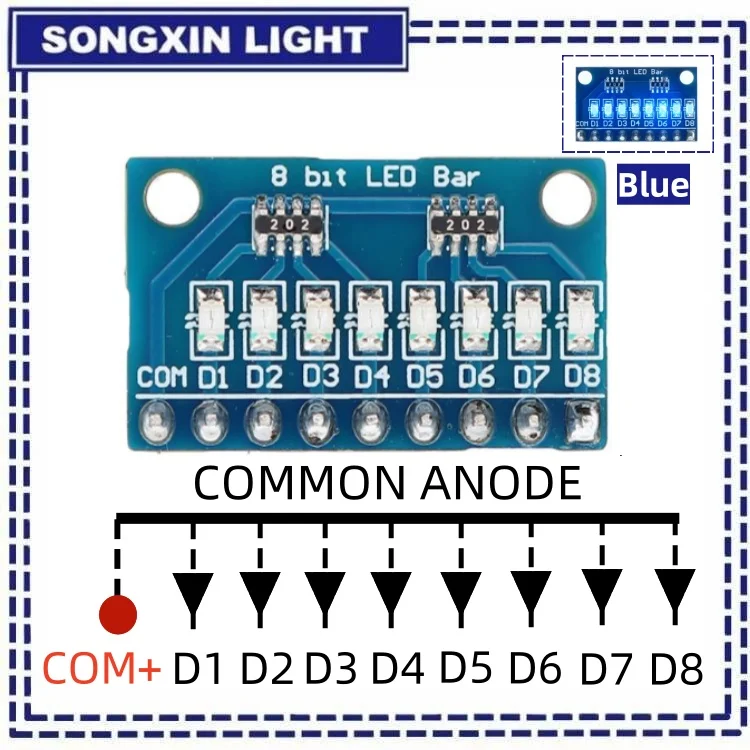

DC 3.3V 3.7V 5V 12V 24V 8-bit blue/red common anode/cathode LED bar
Product Name: 8-Bit LED Bar Graph Module
Description: This module consists of eight individual LED bars, each with its own common cathode and anode. The LEDs can be controlled individually to create a variety of visual effects.
Specifications
Input voltage: 3.3V - 5V
Current consumption: up to 20mA per LED
Dimensions: 30mm x 20mm
Interface: solder pads for direct connection to a microcontroller or other circuitry
Applications
Displaying numerical data such as sensor readings or battery levels
Creating simple animations or visual effects
Indicating the status of a system or device
Usage Notes
Each LED bar has two pins: one for the common cathode and one for the anode. To turn on an LED, connect the cathode pin to ground and the anode pin to a positive voltage.
The current through each LED can be adjusted by adding a resistor in series with the anode pin.
The module can be powered directly from a microcontroller's digital output pins, but care should be taken not to exceed the maximum current rating of the pins.
Here is a brief description of how to wire the 8-bit LED bar graph module

Produktdetails in Bildern

Produkteigenschaften

Markenname

XIASONGXIN LIGHT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

ist kundenspezifisch

Ja

Anwendung

Computer

Paket

SMD

Functions

Electronic Module

Range of application

Switch And Sensor For Arduino STM
