Schnee Regentropfen Erkennung Sensor Modul Regen Wetter Modul Feuchtigkeit Für Arduino Relais Steuer Modul Regen wasser sensor modul

Produktbeschreibung

Note The raindrop controller module only has the 12V power supply version
Product use
robot kit, raindrop, rain, plant leaf humidity sensor, can be used for monitoring various weather conditions, and with relay direct output, control motor and so on start and close.
Product Introduction

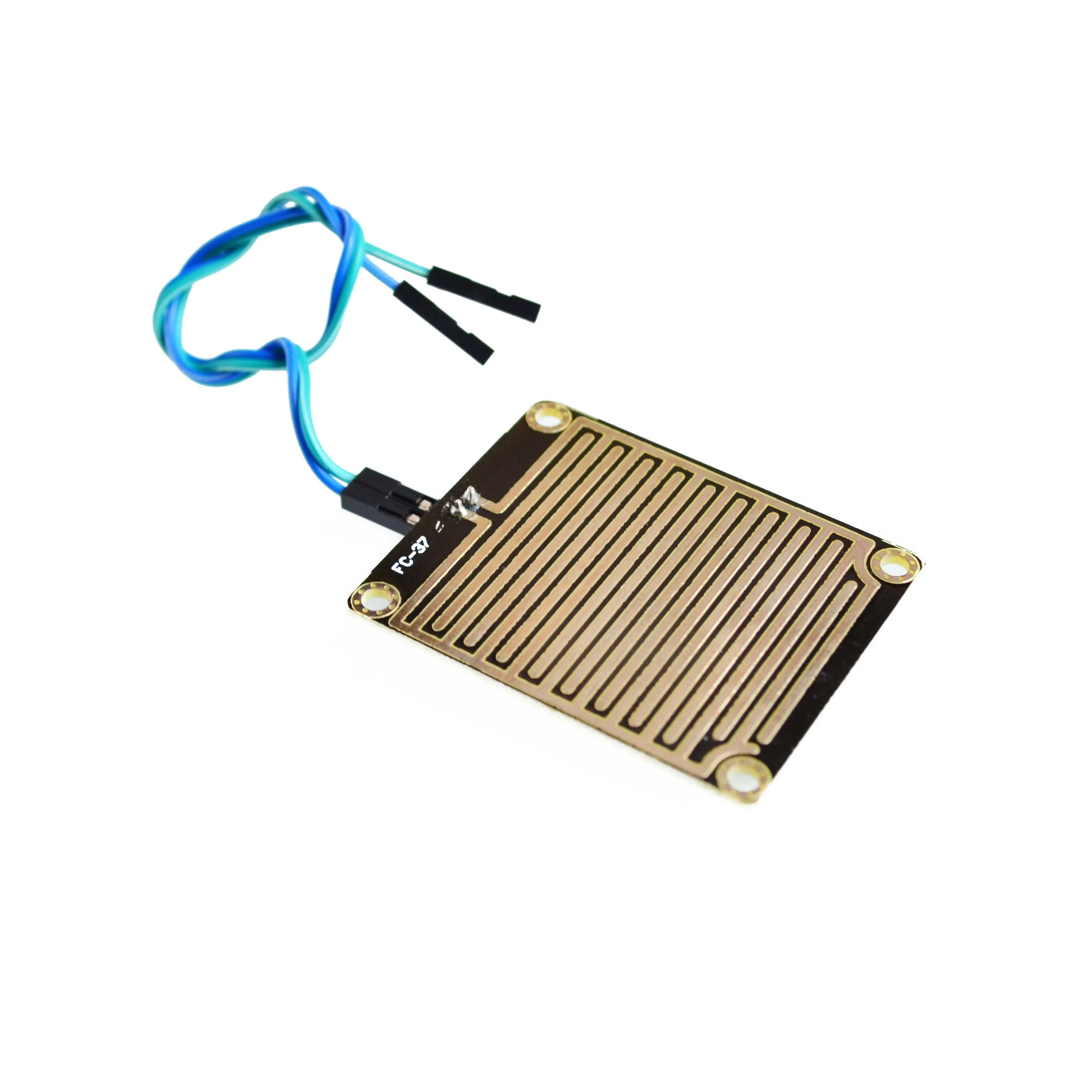

1, The sensor is made of high quality FR-04 double-sided material, with a large area of 5.0*4.0CM, and the surface is treated with nickel plating, with oxidation resistance, electrical conductivity, and better performance in life

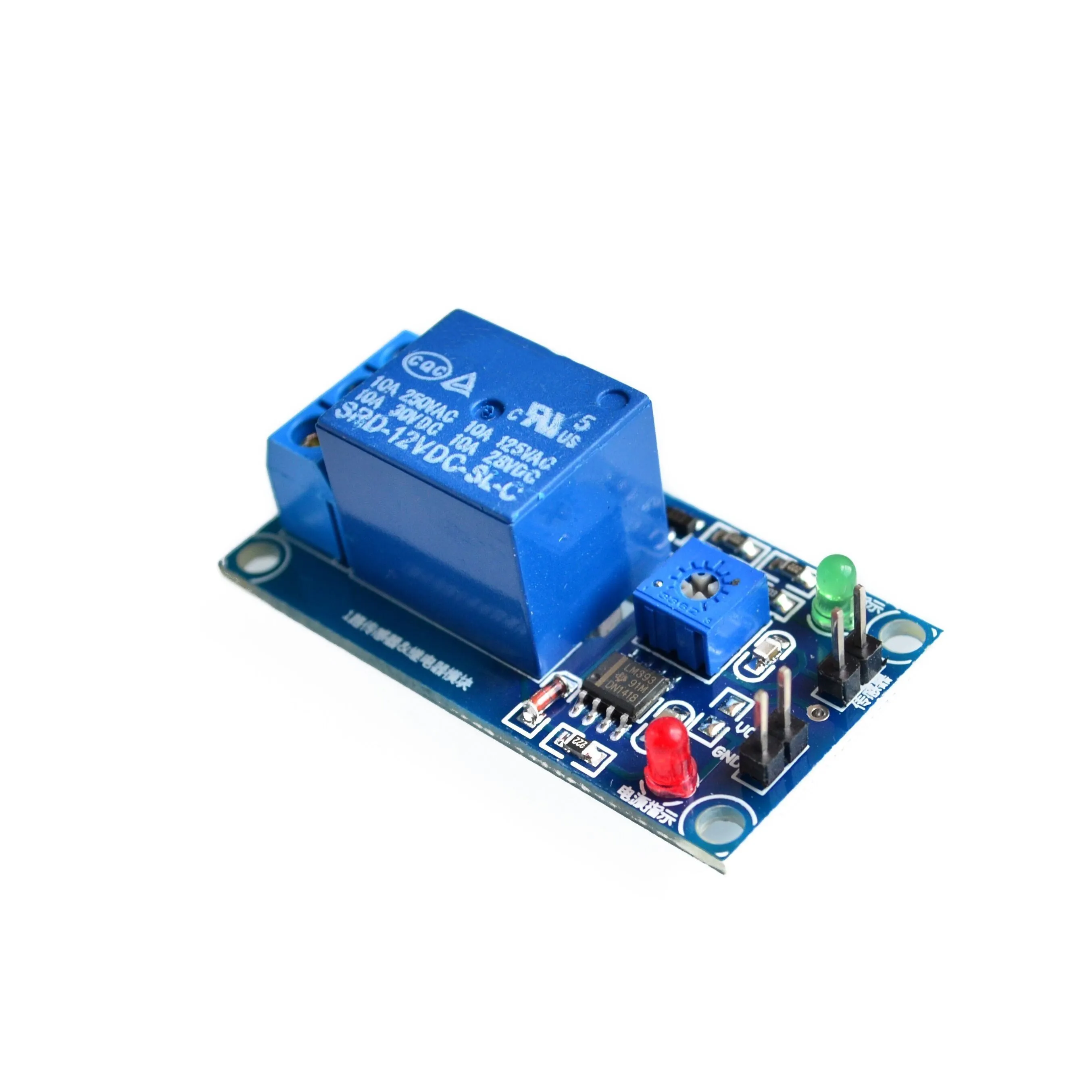

2. The module is directly equipped with high-power relay to directly control the load
3, with potentiometer to adjust the sensitivity, control in different water, control the opening of the relay.
Function introduction
When connected to the power supply, the power indicator light is on. When there is no water drop on the induction board, the relay pulls and starts the relevant equipment. The switch indicator light is on, a drop of water drops, the relay is disconnected, and the switch indicator light is not on.
Performance parameters
Module power supply: 12V static current: 5-12 ma
Relay load capacity: 250V 10A (AC) 30V 10A (DC)

Produktdetails in Bildern

Produkteigenschaften

Verlustleistung

1

input current

more than 100mA

Anwendung

Computer

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Paket

DIP

Betriebstemperatur

40-+85

Ursprung

CN (Herkunft)

ist kundenspezifisch

Ja

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

1

Choice

yes

semi_Choice

yes
