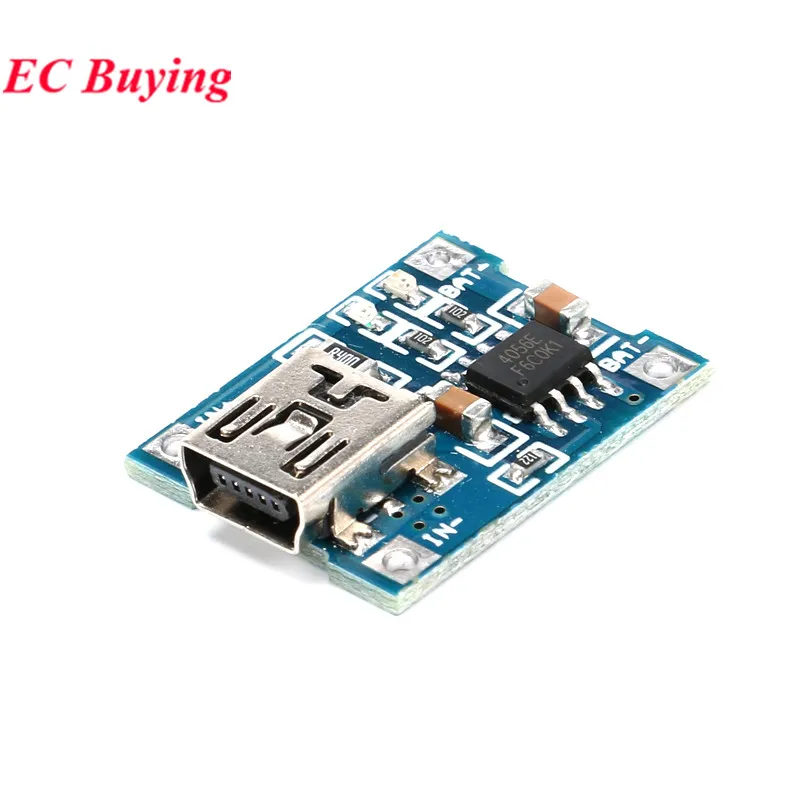

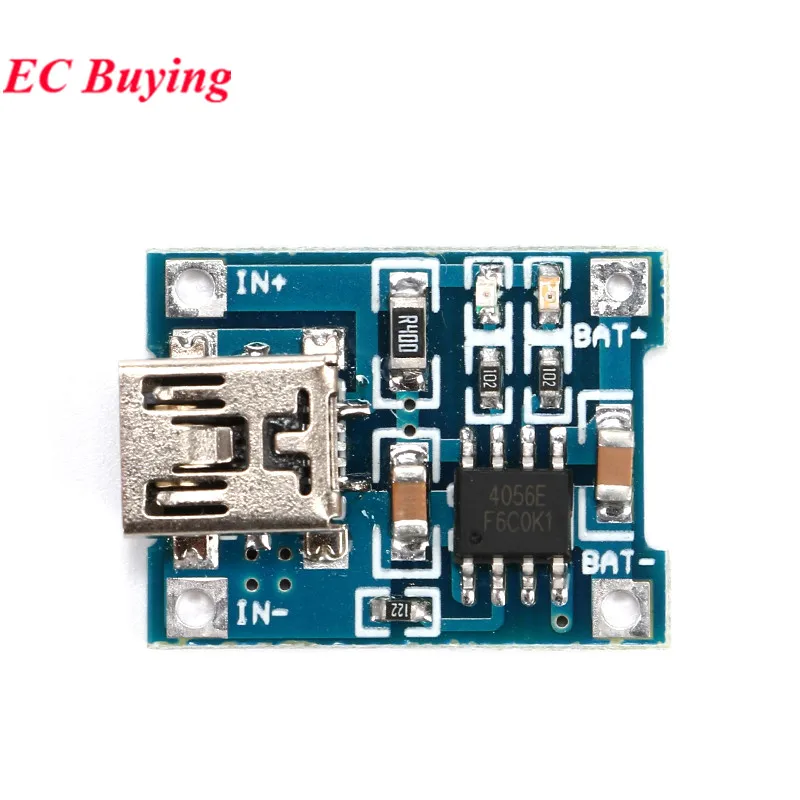

10 Stück/1 Stück tp4056 Mini-USB-Lithium-Batterie ladegerät Lade modul 18650 5V Mini-USB 1a 1000mA Platten schnitts telle 1a Li-Ion

Produktbeschreibung

Description
Size:22.06x 17.13mm
Charge module- Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- Red is charging, Green is fully charged.
Input interface- mini USB.
Work temperature- -10 Celsius to +85 Celsius.
Inversed polarity- NO.
Note
Ampere meter can only be connected to 5v input end of the module.
It is better that the charging current is 37% of the battery capacity.
If you charge to the battery of 1000mAH, current of 400 is enough.
The connection wire should not be too thick.
Make sure the connect point is good.
If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal.
It is protection function, auto-substract the charging current to avoid burn damage to chip.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

4.5V-5.5V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

module
