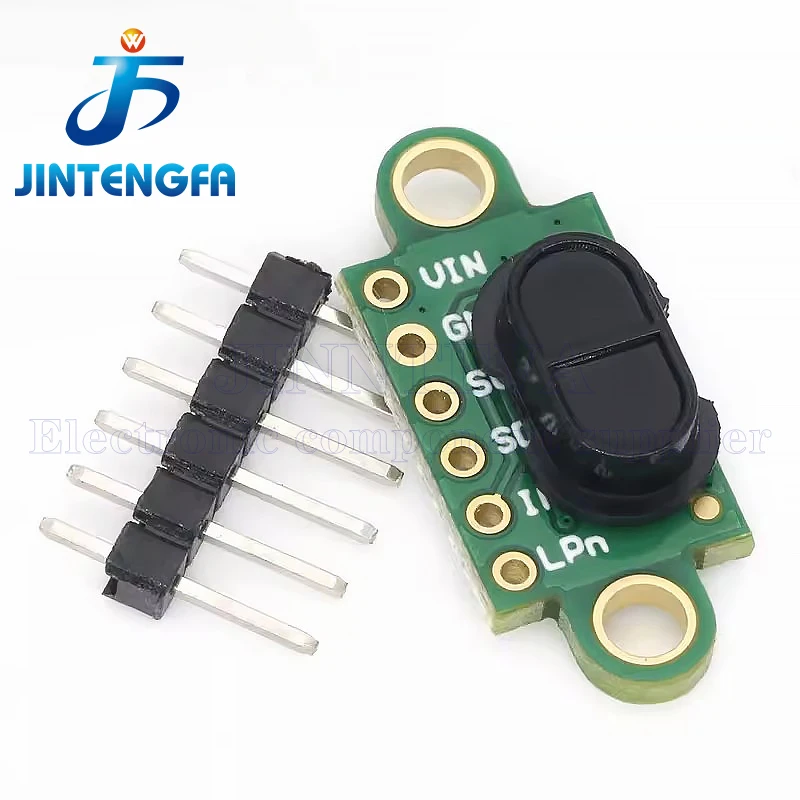

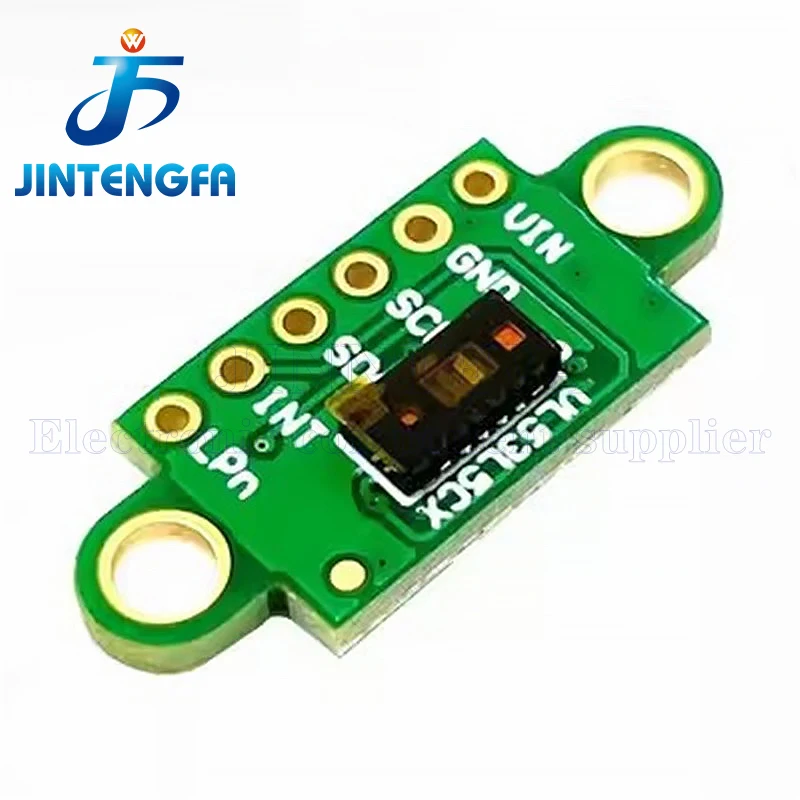

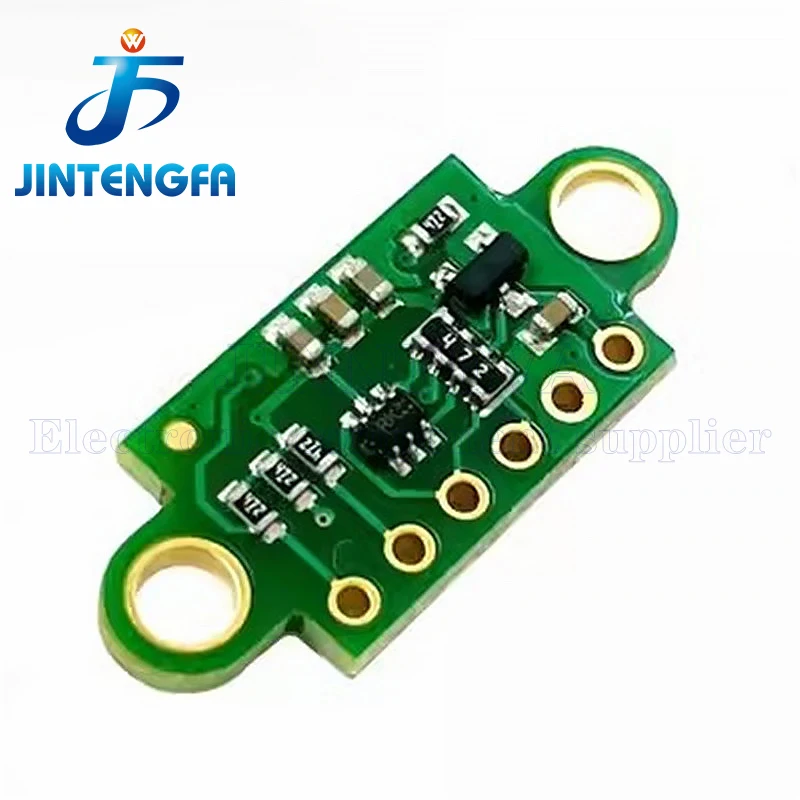

VL53L5X V2 TOF Wide Field of View Time of Flight Laser-Entfernungssensormodul mit mehreren Bereichen VL53L5CX

Produktbeschreibung

Description
1. Operating voltage: 3 ~ 5V
2. Communication method: IIC
3. Absolute distance: 0-4 meters
4.Xshutdown (reset) /GPIO (interrupt)
5. Size 25 MM * 10.5 MM
The STmicro VL53L5CX is an advanced time-of-flight (ToF) multi-area ranging sensor
VL53L5CX uses the latest generation of direct ToF technology from stmicroelectronics, which enables absolute range measurements regardless of target color and reflectance. It offers accurate ranging up to 400 cm and can operate at high speeds (60 Hz), making it the fastest multi-zone micro ToF sensor on the market.
Multi-area distance measurement up to 8x8 area, 63 ° wide diagonal field of view, can be reduced by software. Using the histogram algorithm patented by stmicroelectronics, VL53L5CX can detect different objects in the field of view. The histogram algorithm can also suppress cover slip crosstalk over 60cm.
Compared with the previous three products, the VL53L5 achieves several breakthroughs: first, the Angle is large, extending to 61 degrees; The second is cutting, up to 16 areas. The details are as follows
First, the Angle is large: the FOV Angle of ToF products is generally controlled at about 25-27 degrees, and the effective distance of FOV (FOV Angle) at about 25-27 degrees is also coordinated according to the transmit power, receiving capacity and the effective range that the algorithm can bear. With software and hardware enhancements, the Angle can now reach 60 degrees. 60 degrees has two advantages: on the one hand, it covers a larger range of products, especially suitable for slightly larger products, such as TV, big screen, etc. On the other hand, this large Angle can also be programmed. If such a large Angle is not needed, the client can program to obtain the required Angle, which is currently up to 60 degrees. There are many programming methods below which the client can apply.
The second is to achieve multiple areas: can be cut up to 16 areas or more. The VL53L5 is cut into four blocks, or quadrants, each of which can be further cut to 16 or more regions. In the
Brand Name
JINNTEVA
Origin
CN(Origin)
Condition
New
Type
Other

Produktdetails in Bildern

Produkteigenschaften

Markenname

JINNTEVA

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

standard

Verlustleistung

standard

Betriebstemperatur

standard

Paket

SMD
