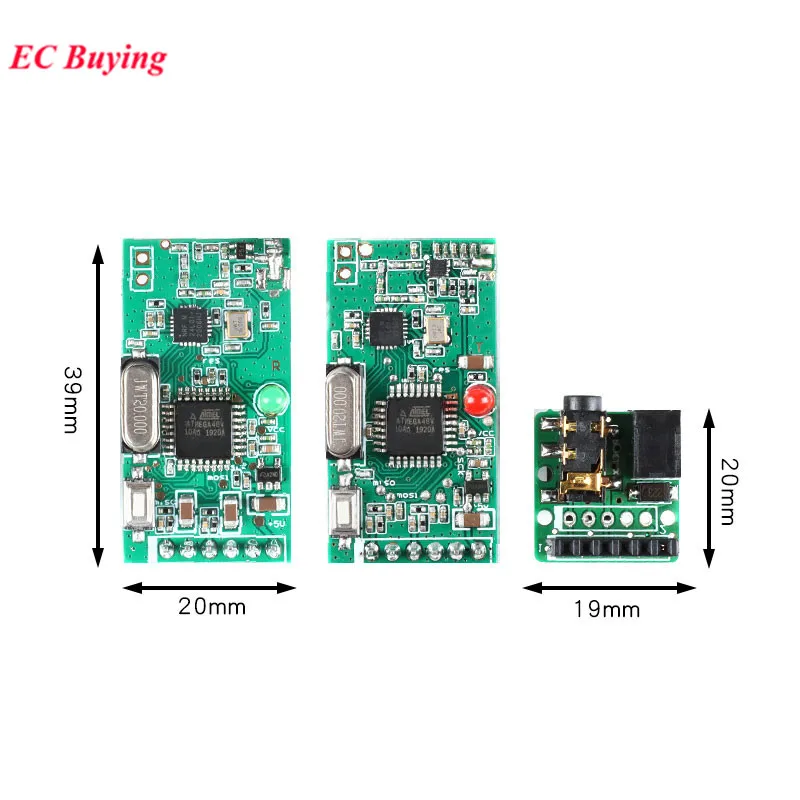

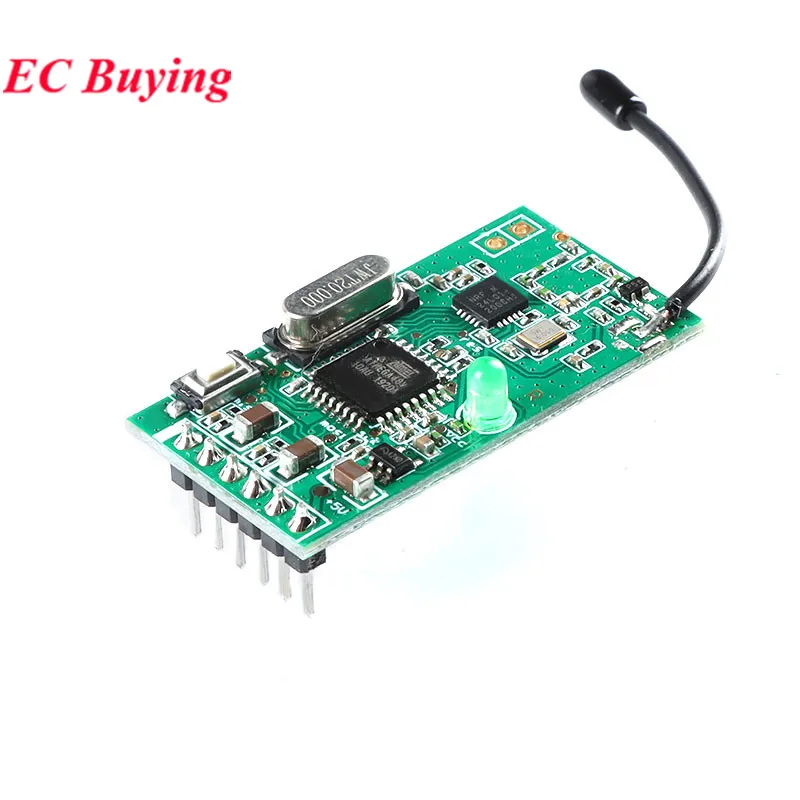

2,4G Analoges Audio-Modul Kabel Digitaler WLAN-Lautsprecher Sender-Empfänger-Platine Modul Schnittstellenplatine 3,5-5V

Produktbeschreibung

Adopt the latest 2. 4G wireless transmission technology, 44. 1K sampling rate, 24bitAD sampling for lossless high fidelity digital audio transmission, 16 optional operating channels. The maximum distance of the open space is 130 meters. (Antennas vary from distance to distance) one shot, you can form a wireless audio transceiver system, simple and convenient. Multiple simultaneous collections can be sent at one time
Input signal: Analog audio
Output signal: Analog audio
Operating voltage: 3. 5- 5V
GFSK digital modulation/de-modulation
20Hz to 20KHz frequency response
90dB audio dynamic range
Reception sensitivity of 85dBm, adjacent suppression of 45dB, mirror suppression of 30dB
44.1K digital audio sampling rate, 16bit sample quantization level
Distance: Stereo audio data can be transmitted over an open area greater than 100 meters (static point-to-point)
Supports multiple transfer modes for point-to-point and point-to-multipoint (multiple simultaneous receipts at the same time)
Key-to-code, supports multiple sets of non-disturbing parallel work at the same time.
Multiple alternative frequency bands to easily avoid interference frequencies: the product operates in the 2.4GHz ISM (i.e. industrial, scientific, medical) band and has 16 optional frequency points to meet multi-frequency and frequency hopping needs; The 4GHz public band prone to interference on the effects of sound quality, the product provides frequency point selection function, if the product in the process of work, there is a strong noise, that is, in the current frequency point interference affects the output sound quality, you can choose a new working frequency point to maintain good product use.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3.5- 5V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module
