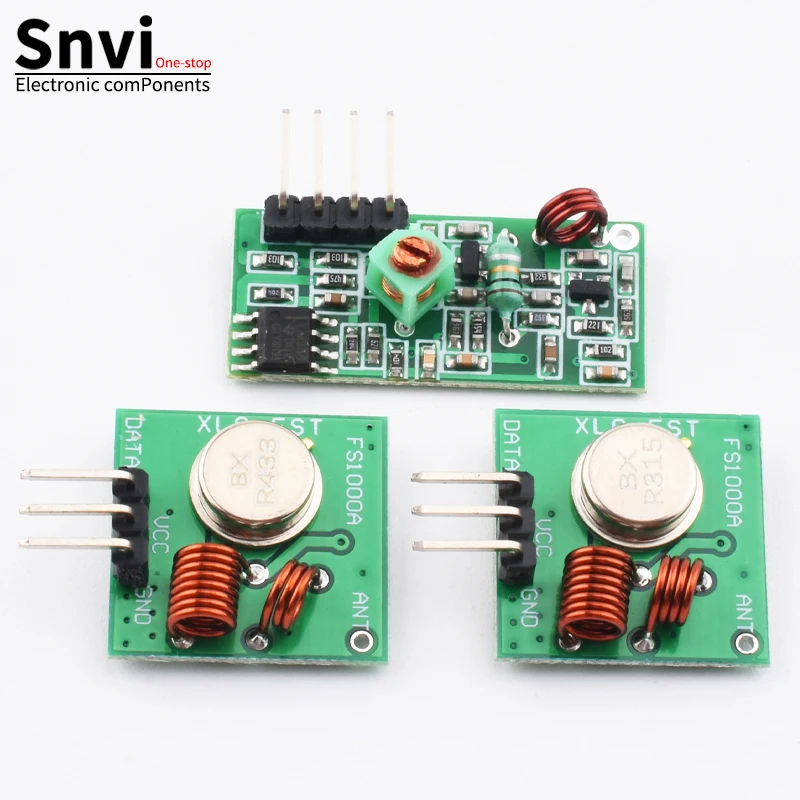

433 Mhz 315 MHZ RF Wireless Sender Modul und Empfänger Kit DC 5 V 315 433 Mhz Wireless Modul Diy elektronische Kit

Produktbeschreibung

Receiver module parameters
1.Product Model: 433/315MHZ
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433.92MHZ /315Mhz (optional)
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral Technical
parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance:20-200 meters (different voltage, different results)
3.Operating voltage:3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 433Mhz /315Mhz (optional)
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left → right: (DATA; VCC; GND) Application environment Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark

Produktdetails in Bildern

Produkteigenschaften

Markenname

SNVI

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Choice

yes

semi_Choice

yes
