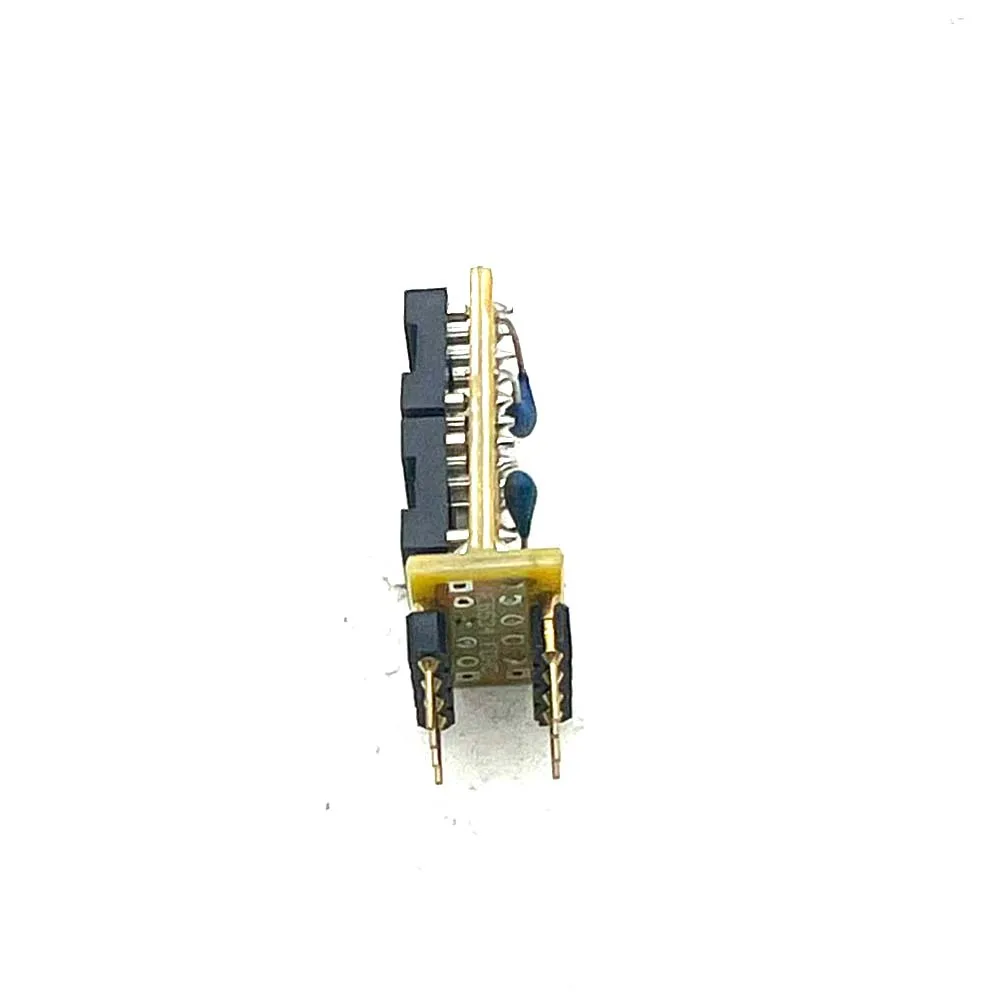

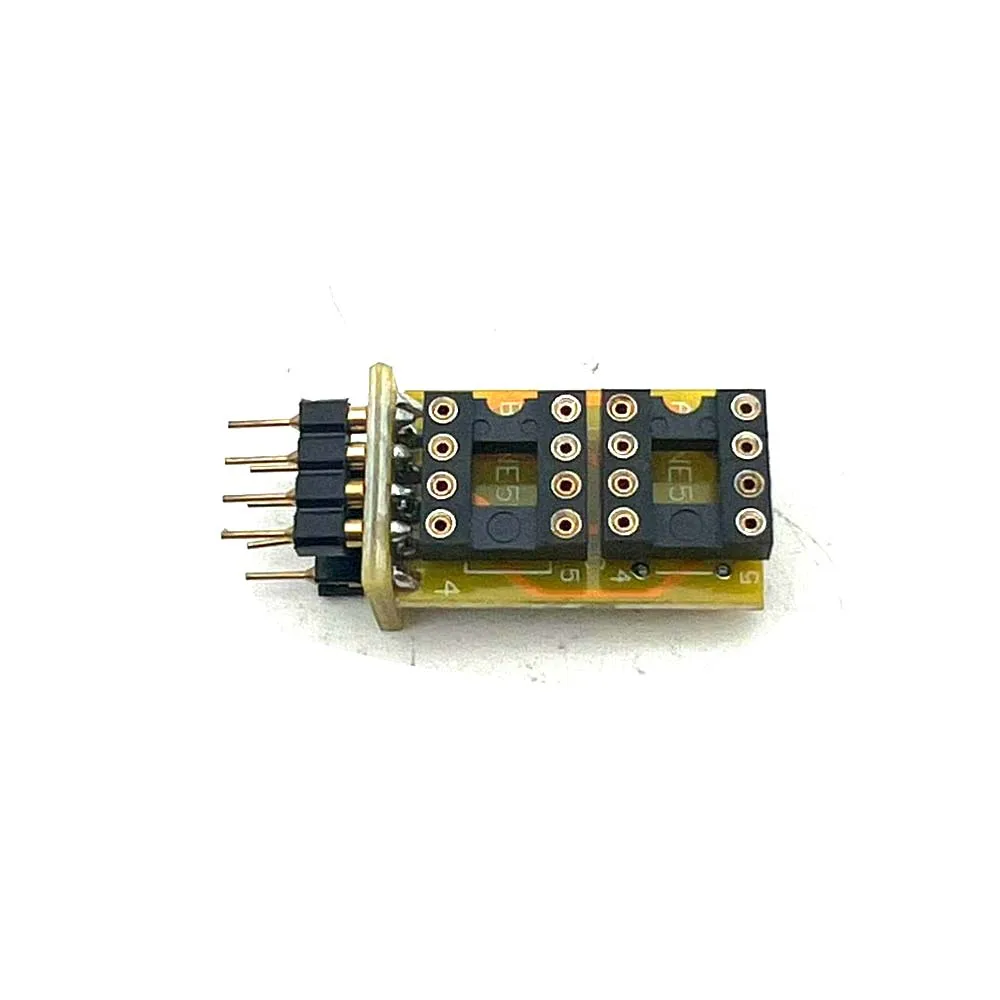

Dual-Single-DIP8-zu-Single-OP-Amp-Audio-OP-Amp-Adapter-Konverterplatine für NE5534 AD797 OPA627 Operationsverstärker

Produktbeschreibung

Dual Single DIP8 to Single OP-Amp Opamp Adaptor Converter for NE5534 AD797 OPA627 Op Amplifier
single op amp upgrade conversion socket: two single DIP8 op amp instead of a single DIP8 op amp, the working principle as shown below, the signal amplified and then buffer output, driving force to enhance significantly better than the use of a op amp, it is sound, CD, decoding, amplifier replacement op amp, upgrade op amp, upgrade the line of the machine tool.
Fine FR4 high-quality double-sided glass plate, thickness 2mm, 72μm thick copper foil gold-plated, pure gold-plated gold pin, can be directly inserted in the amplifier socket, the use of easy operation.
Circuit board welding 2PCS power supply with imported tantalum capacitors, improve sound quality. Can also be replaced by different brands, different capacity of the capacitor (which can be electrolysis, it can be a thin film) to the school sound, the pin marked "+ -" logo, welding electrolysis can not be wrong pin.
Friendship reminder: the color of the board is red, green, yellow, we randomly shipped. The conversion plate pin position marked with 1, 4, 5, 8 feet, do not reverse plug, otherwise it will cause the components op amp and Damage to the machine. The conversion base for most of the analog zoom line, does not guarantee the application of all lines!

Produktdetails in Bildern

Produkteigenschaften

Dual Single DIP8 to Single OP-Amp

Opamp Adaptor Converter

Datenaufzeichnung

Nein

Markenname

NONE

Zertifizierung

NONE

Typ

Dual Single DIP8 to Single OP-Amp

Halbfertigprodukt

Ja

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

Ausgangsspannung

NE5534 AD797 OPA627 Op Amplifier

Modellnummer

Opamp Adaptor Converter

Hochbetriebenes Chemikalienunternehmen

Keine

Art

Opamp Adaptor Converter

Elektronisch

Nein
