Bodor Original Laserschutzlinse 24,9 x 1,5 27,9 x 4,1 37 x 7 30 kW Laserschutzfenster für Bodor Faserlaserschneidemaschine

Produktbeschreibung

Bodor Original Laser Protective Lens 24.9x1.5 27.9x4.1 37x7 30kw Laser Protection Windows for Bodor Fiber Laser Cutting Machine

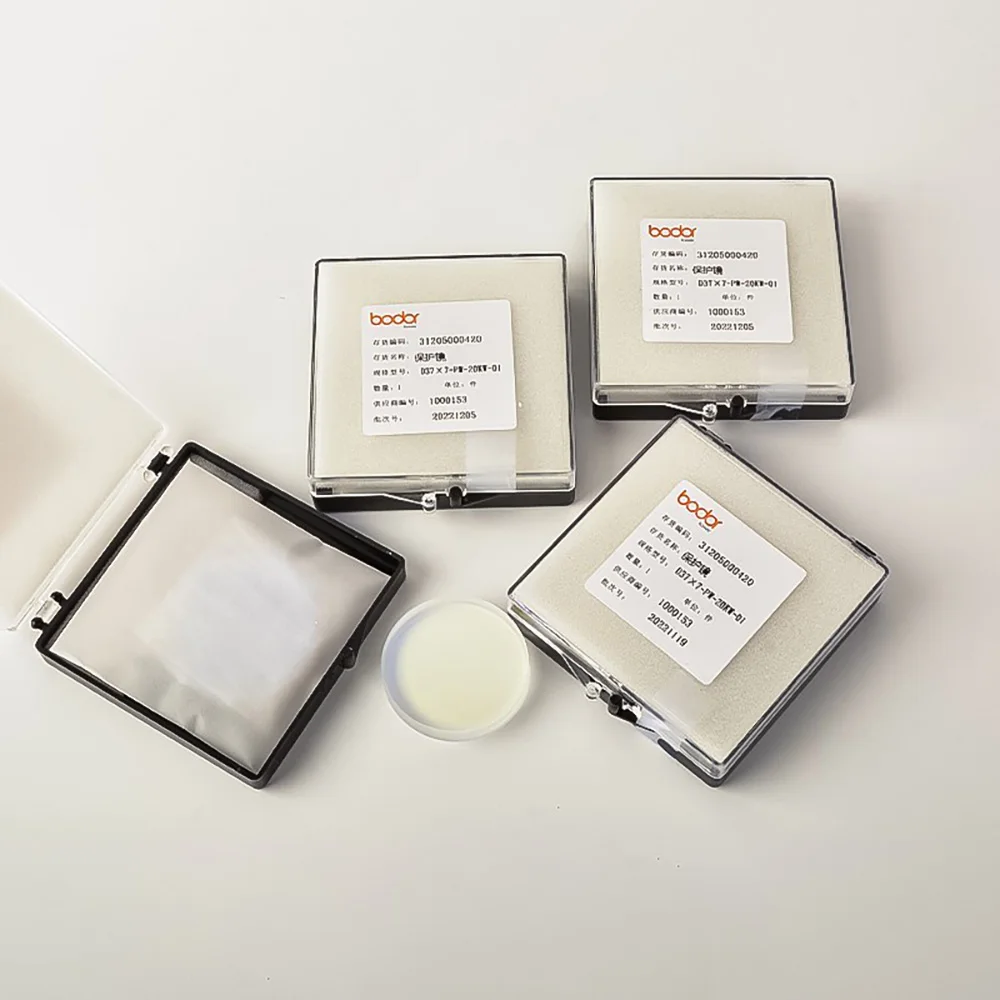

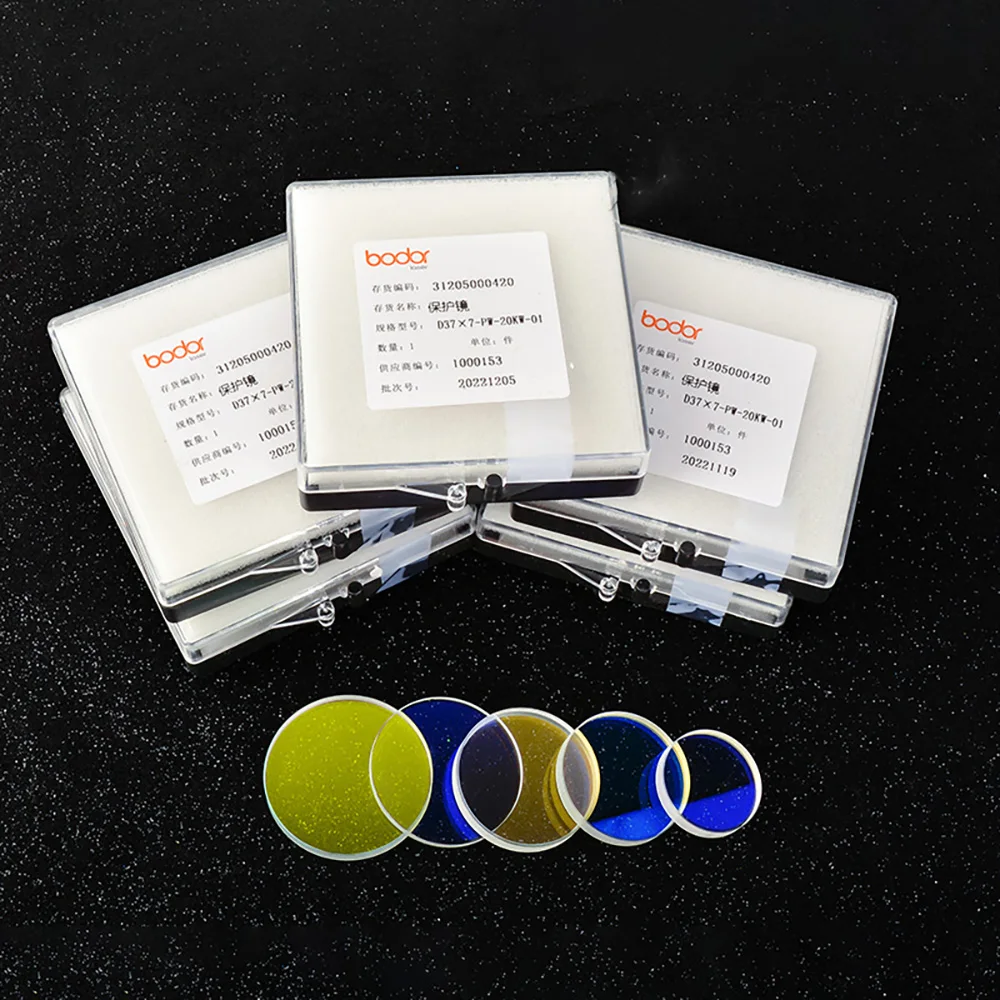

Original Bodor Laser Protective Lens
Material: Quartz Fused Silica
Wavelength: 1064nm
Transmittance: >99.76%
Laser Power: 0-3kw/6kw/8kw/12kw/15kw/20kw

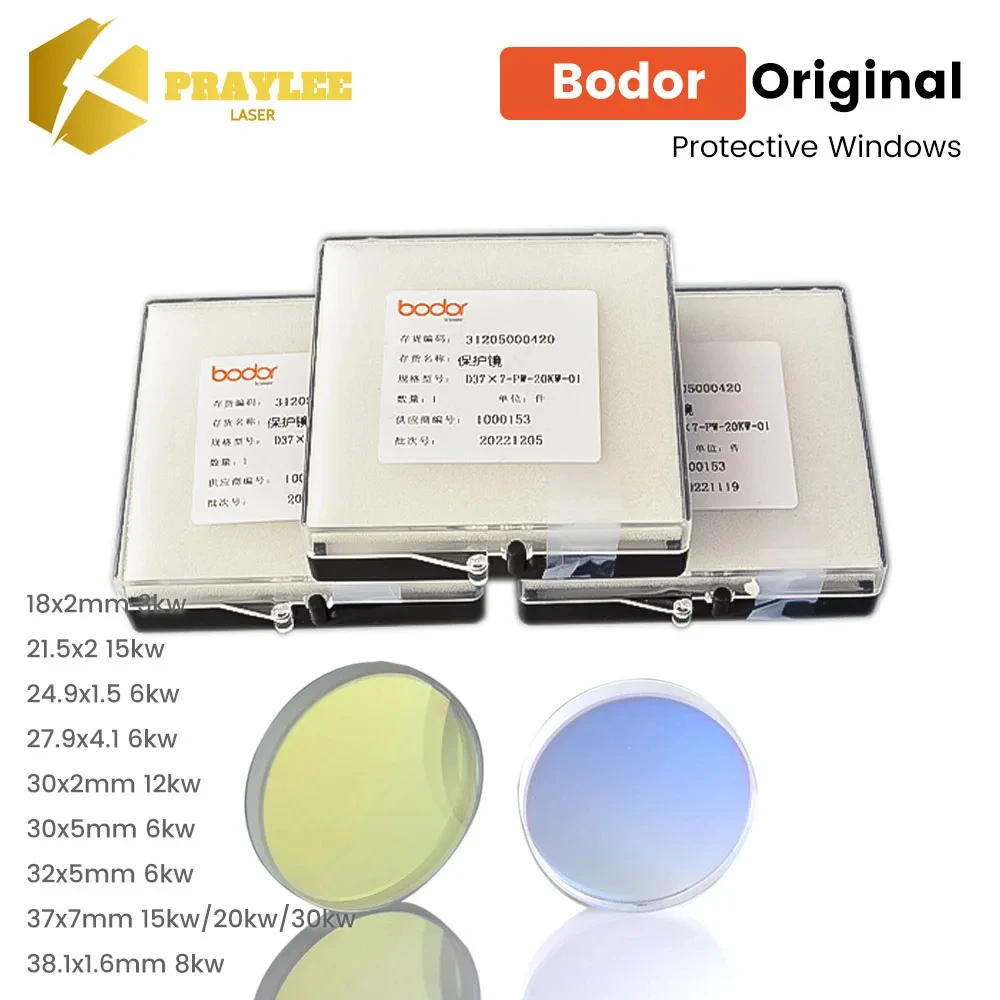

Original Lens: 18x2(3kw),21.5x2(15kw),24.9x1.5(6kw),27.9x4.1(6kw),30x2(12kw),30x5(6kw)
32x5(6kw),37x7(15kw),37x7(20kw),37x7(30kw),38.1x1.6(8kw)
Application: Bodor Laser Cutting/Welding Machine Silica Protective Windows
Protective lenses are very important precision components in the optical path system of laser cutting machines

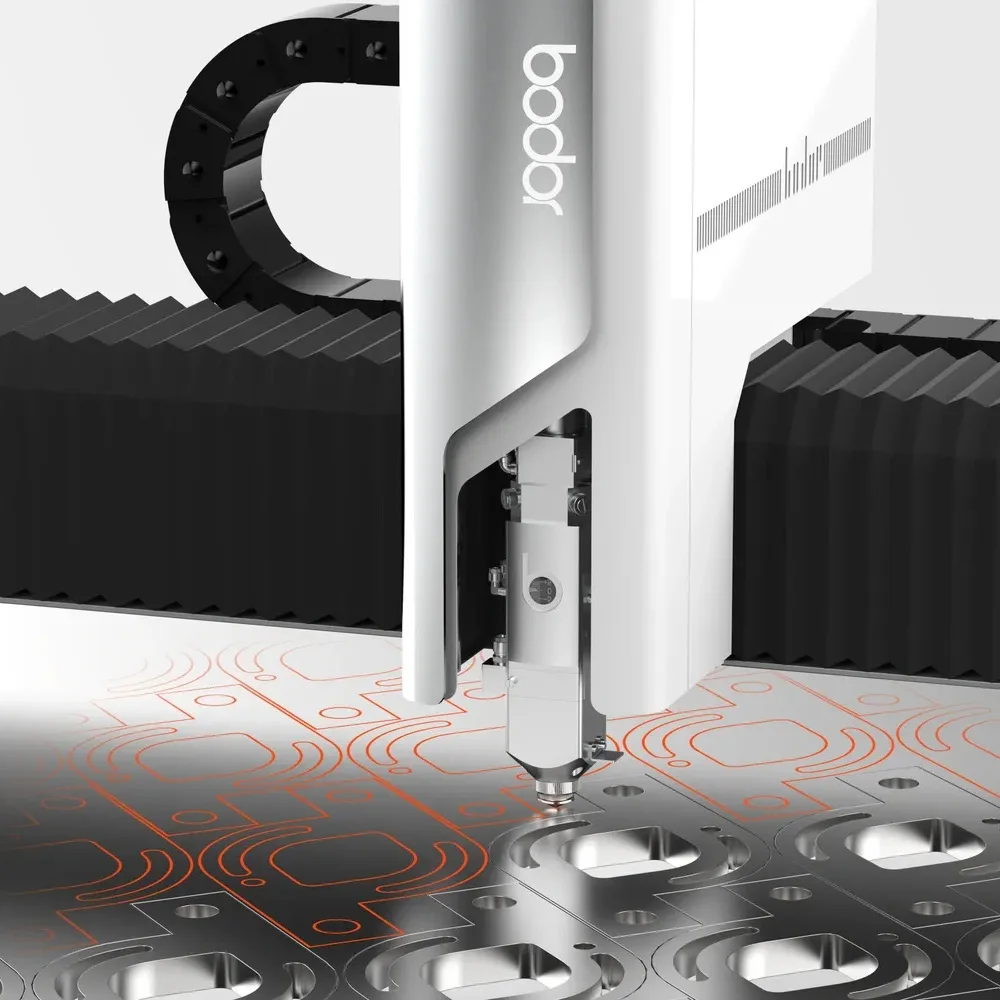

During processing, the laser cutting head will accumulate a large amount of energy. In order to block dust and slag splashing, protect the internal optical path and core components of the laser cutting head, protective lenses need to be installed on the laser cutting head to effectively protect it from damage

Produktdetails in Bildern

Produkteigenschaften

Power

0-4kW / 6kw/12kw

Application

For Bodor Laser Machine Head

Application 2

For Raytools Fiber Laser Lens

Application 3

Bodor Protective Glass

Form

Platz

Halbfertigprodukt

Nein

Markenname

axrayser

Zertifizierung

CE

Ursprung

CN (Herkunft)

Struktur

Plankonvex

Modellnummer

Bodor Original Laser Protective Windows

Benutzen

for Bodor Fiber Cutting Machine

Hochbetriebenes Chemikalienunternehmen

Keine

Material

JGS1 / JGS2 / HQ (Quartz Fused Silica)
