Produktbeschreibung

Product Information

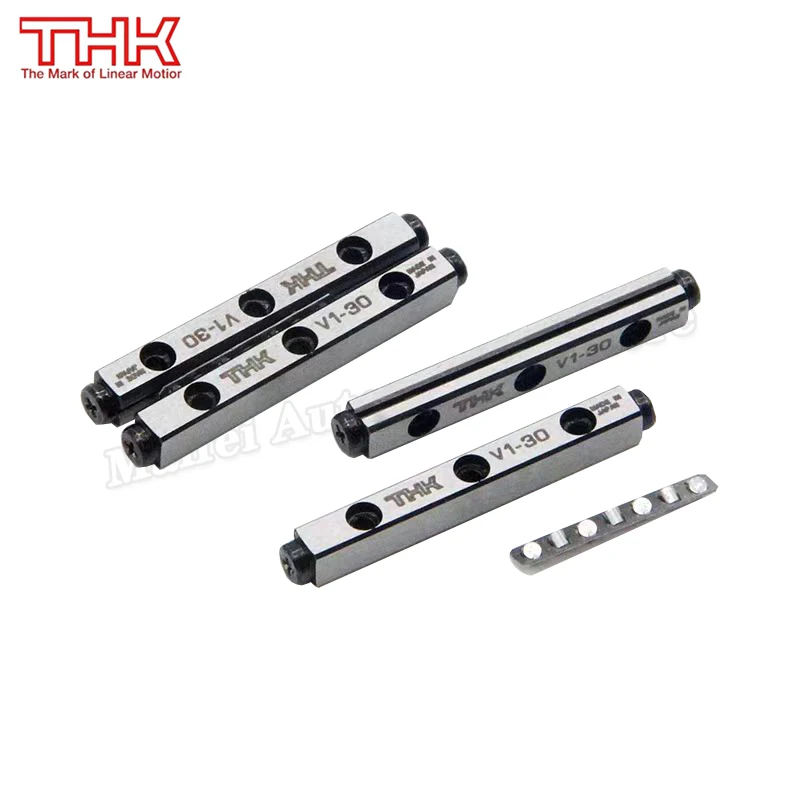

Product Name：THK Cross Roller Guide
Model
VR1-20×5Z 1020T V1-20
VR1-30×7Z 1030T V1-30
VR1-40×10Z 1040T V1-40
VR1-50×13Z 1050T V1-50
VR1-60×16Z 1060T V1-60
VR1-70×19Z 1070T V1-70
VR1-80×21Z 1080T V1-80
Manufacturer:THK

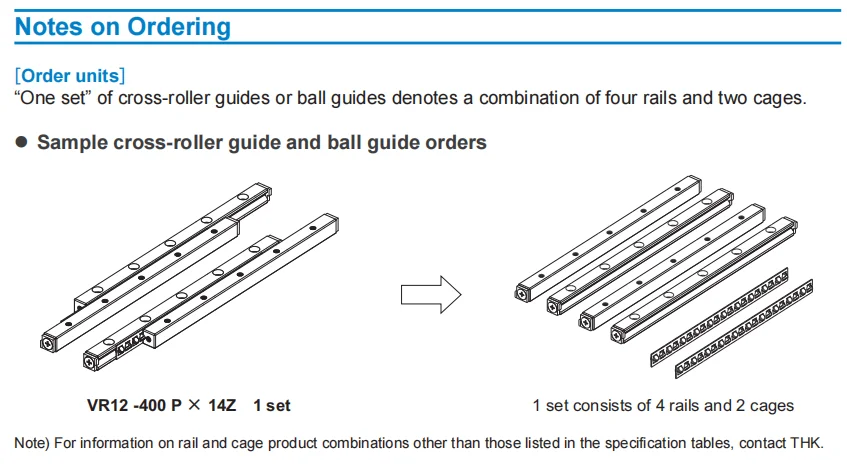

Packing Quantity:1set=4 pcs rails +2 pcs cages.
NOTE: We offer a wide range of cross guides, linear guides and ball screws. Please contact us for a quote if necessary.
If you have any needs, please feel free to contact customer service.
Cross roller guide is a linear guide with limited travel, which has alternating orthogonal precision rollers. This product provides rigid and flexible linear motion, which is particularly suitable for linear guidance where high rigidity and flexible motion are required.

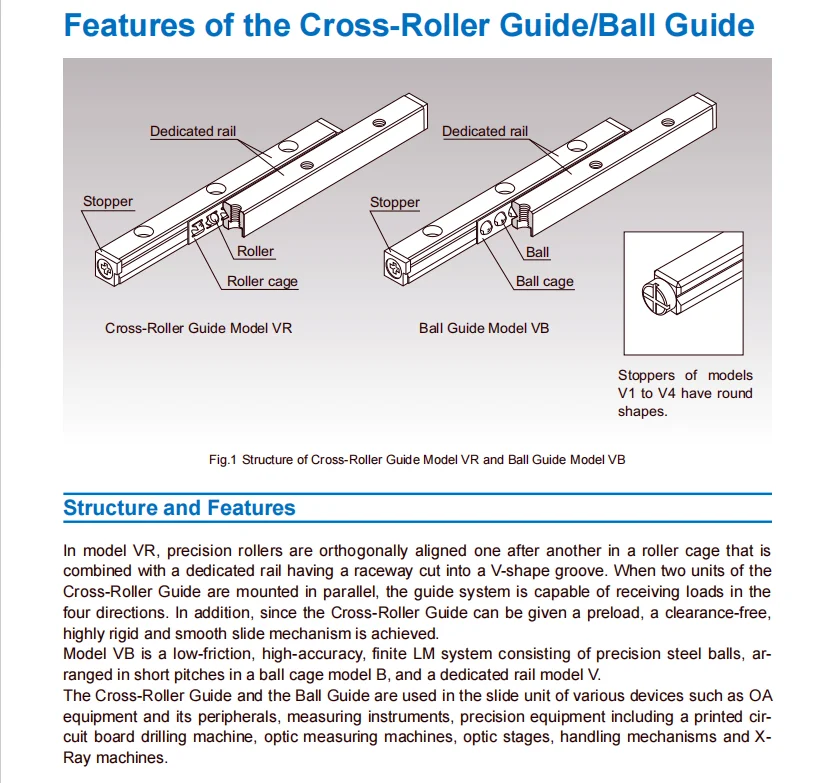

Structure of VR cross roller guide
In the VR model, the roller retentors, where the precision rollers are aligned directly with each other, are used in combination with a 90°V grooved rolling surface set on a dedicated track. By assembling 2 rows of roller guides in parallel, the guide system can withstand loads in 4 directions. Moreover, by applying pre-pressure to the cross roller guide, a sliding mechanism with no clearance, high rigidity and light movement can be obtained.
THK cross roller guide features
【 Long service life, high rigidity 】
Through the unique roller holding method, the effective contact length of the roller is increased to 1.7 times that of the traditional product, and because the pitch interval of the roller is shorter, coupled with the number of rollers, the rigidity is increased to 2 times, and the life can be obtained by 6 times. Therefore, the design can fully consider the safety of the vibration, impact and other problems that are easy to produce in the linear moving part.

Produktdetails in Bildern

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 1

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 2

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 3

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 4

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 5

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 6

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 7

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 8

100 % Original THK Kreuzrollenrutschen VR1-20×5Z VR1-30×7Z VR1-40×10Z VR1-50×13Z VR1-60×16Z VR1-70×19Z VR1-80×21Z VR1-20 VR1-30 – Detail 9

Produkteigenschaften

Markenname: NONE
Ursprung: JP (Herkunft)
Hochbetriebenes Chemikalienunternehmen: Keine
Modellnummer: VR1
Zertifizierung: NONE
Brand: THK
Packing Qty: 4 pcs rails+2 pcs cages
